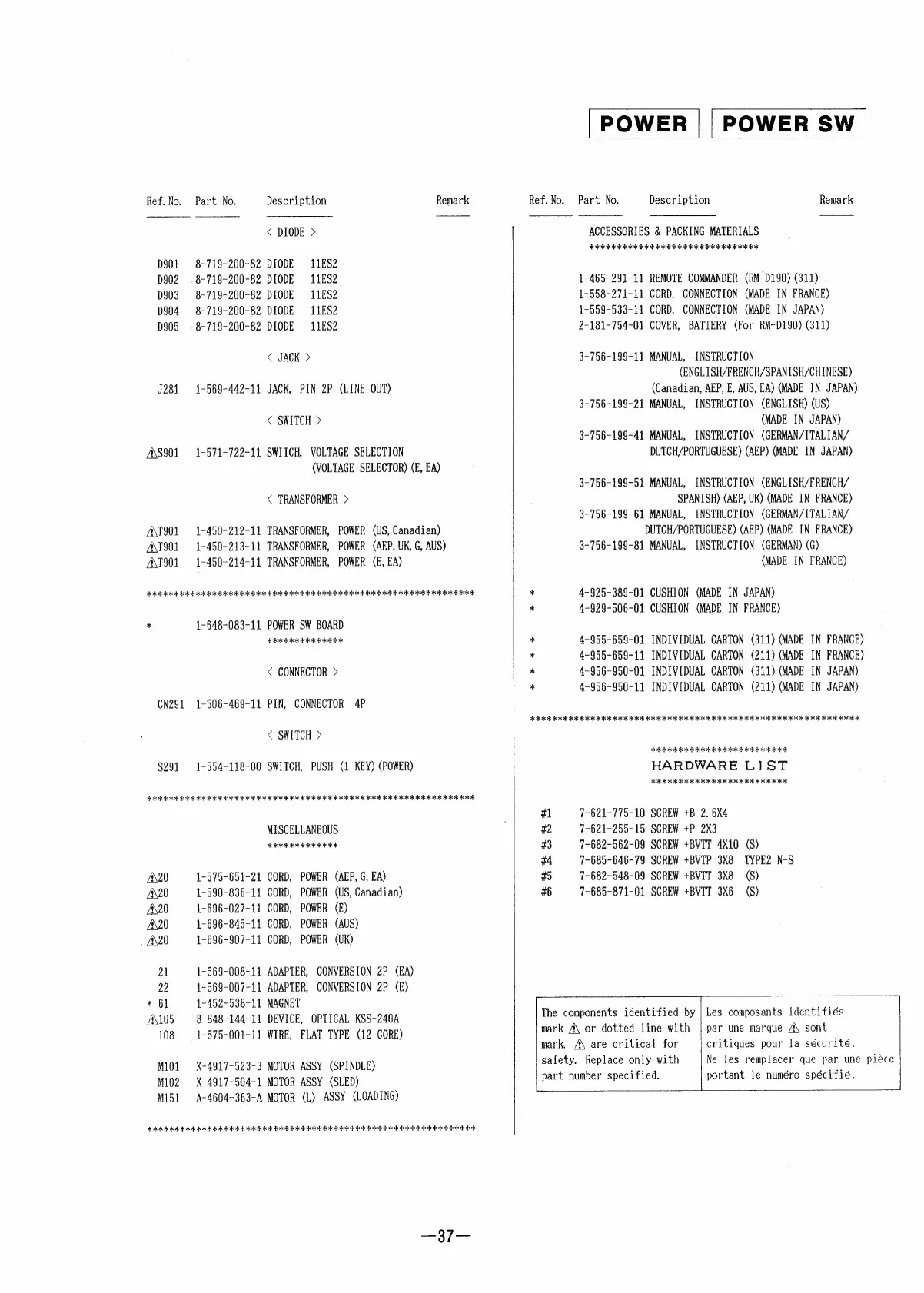

Sony CDP-211 - Page 26

Ref. No. Part No. Description Remark
< DIODE >
D901 8-719-200-82 DIODE 11ES2
D902 = 8-719-200-82 DIODE 11ES2
D903 = 8-719-200-82 DIODE 11ES2
D904 8-719-200-82 DIODE 11ES2
D905 = 8-719-200-82 DIODE 11£ES2
< JACK >
J281 1-569-442-11 JACK, PIN 2P (LINE OUT)
< SWITCH >
ASS901 —-1-571-722-11 SWITCH, VOLTAGE SELECTION
(VOLTAGE SELECTOR) (E, EA)
< TRANSFORMER >
ANT901 1-450-212-11 TRANSFORMER, POWER (US, Canadian)
AXT901 — 1-450-213-11 TRANSFORMER, POWER (AEP, UK, G, AUS)
A\T901 — 1-450-214-11 TRANSFORMER, POWER (E, EA)
Ao ro oioidioiooioiotoidgoio i iciofoktofofotoboioi ii ioiiciiototoiogok dak dak i fokakokoak dak ick ak
* 1-648-083-11 POWER SW BOARD
Joi nioloiotoiotoiokoick
< CONNECTOR >
CN291 1-506-469-11 PIN, CONNECTOR 4P
< SWITCH >
$291 1-554-118-00 SWITCH, PUSH (1 KEY) (POWER)
SO eR IOI RI GIGI ROR RI OR CIO ROR OR IO OR OR IOI IR I 2k kK i aR af ok a
MISCELLANEOUS
2 took Rk kk
AX20 1-575-651-21 CORD, POWER (AEP, G, EA)
Ax20 1-590-836-11 CORD, POWER (US, Canadian)
A20 1-696-027-11 CORD, POWER (E)
A20 1-696-845-11 CORD, POWER (AUS)
£20 1-696-907-11 CORD, POWER (UK)
21 1-569-008-11 ADAPTER, CONVERSION 2P (EA)
22 1-569-007-11 ADAPTER, CONVERSION 2P (E)
* 61 1-452-538-11 MAGNET
A105 =: 8-848- 144-11 DEVICE, OPTICAL KSS-240A
108 = 1-575-001-11 WIRE, FLAT TYPE (12 CORE)
M101 X-4917-523-3 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
M151 A-4604-363-A MOTOR (L) ASSY (LOADING)
foto coro ok doi iokok kk iokobotok dak iokob tok loki dor tok fob bok ot bok kk aR Fok kok kkk
| POWER || POWER SW.
Ref. No. Part No. Description Remark
ACCESSORIES & PACKING MATERIALS
FO ob kok Rk kkk ok kqok
1-465-291-11 REMOTE COMMANDER (RM-D190) (311)
1-558-271-11 CORD, CONNECTION (MADE IN FRANCE)
1-559-533-11 CORD, CONNECTION (MADE IN JAPAN)
2-181-754-01 COVER, BATTERY (For RM~D190) (311)
3-756-199-11 MANUAL, INSTRUCTION
(ENGL ISH/FRENCH/SPANISH/CHINESE)
(Canadian, AEP, E, AUS, EA) (MADE IN JAPAN)
3-756-199-21 MANUAL, INSTRUCTION (ENGLISH) (US)
(MADE IN JAPAN)
3-756-199-41 MANUAL, INSTRUCTION (GERMAN/TTALIAN/
DUTCH/PORTUGUESE) (AEP) (MADE IN JAPAN)
3-756-199-51 MANUAL, INSTRUCTION (ENGLISH/FRENCH/
SPANISH) (AEP, UK) (MADE IN FRANCE)
3-756-199-61 MANUAL, INSTRUCTION (GERMAN/JTALIAN/
DUTCH/PORTUGUESE) (AEP) (MADE IN FRANCE)
3-756-199-81 MANUAL, INSTRUCTION (GERMAN) (G)
(MADE IN FRANCE)
* 4-925-389-01 CUSHION (MADE IN JAPAN)
4-929-506-01 CUSHION (MADE IN FRANCE)
*
4-955-659-01 INDIVIDUAL CARTON (311) (MADE IN FRANCE)
4-955-659-11 INDIVIDUAL CARTON (211) (MADE IN FRANCE)
4-956-950-01 INDIVIDUAL CARTON (311) (MADE IN JAPAN)
4-956-950-11 INDIVIDUAL CARTON (211) (MADE IN JAPAN)
ev & &
FRR ok ro oI oro RK kk ook i obo OR Cr OR Rk kK ak kk kok deokok kak
RR RR ROR dk kk kok ok kk ak 2k 2k kk oe
HARDWARE LIST
2 OR gk grok fk ok ok ak CR ok
#1 7-621-775-10 SCREW +B 2. 6X4
#2 7-621-255-15 SCREW +P 2X3
#3 7-682-562-09 SCREW +BVIT 4X10 (S)
#4 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#5 7-682-548-09 SCREW +BYTT 3X8 (S)
#6 7-685-871-01 SCREW +BVIT 3X6 (8)
