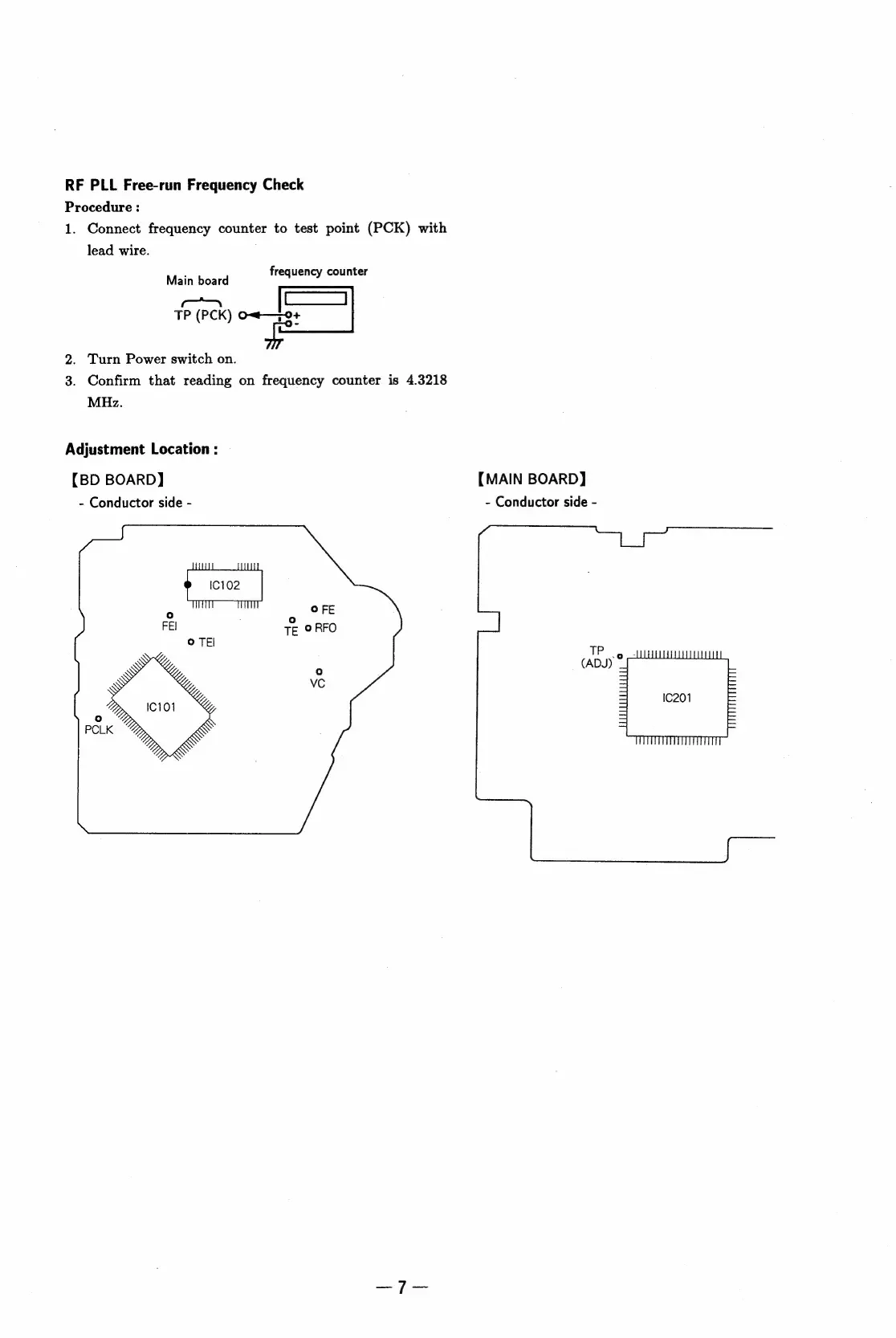

RF PLL Free-run Frequency Check
Procedure :
1. Connect frequency counter to test point (PCK) with
lead wire.
Main board frequency counter
Fy om |
TP (PCK) one
2. Turn Power switch on.
3. Confirm that reading on frequency counter is 4.3218
MHz.
Adjustment Location :
[BD BOARD] [MAIN BOARD]
- Conductor side - - Conductor side -
