Sony CDP-490 - SPECIFICATIONS; SAFETY-RELATED COMPONENT WARNING!

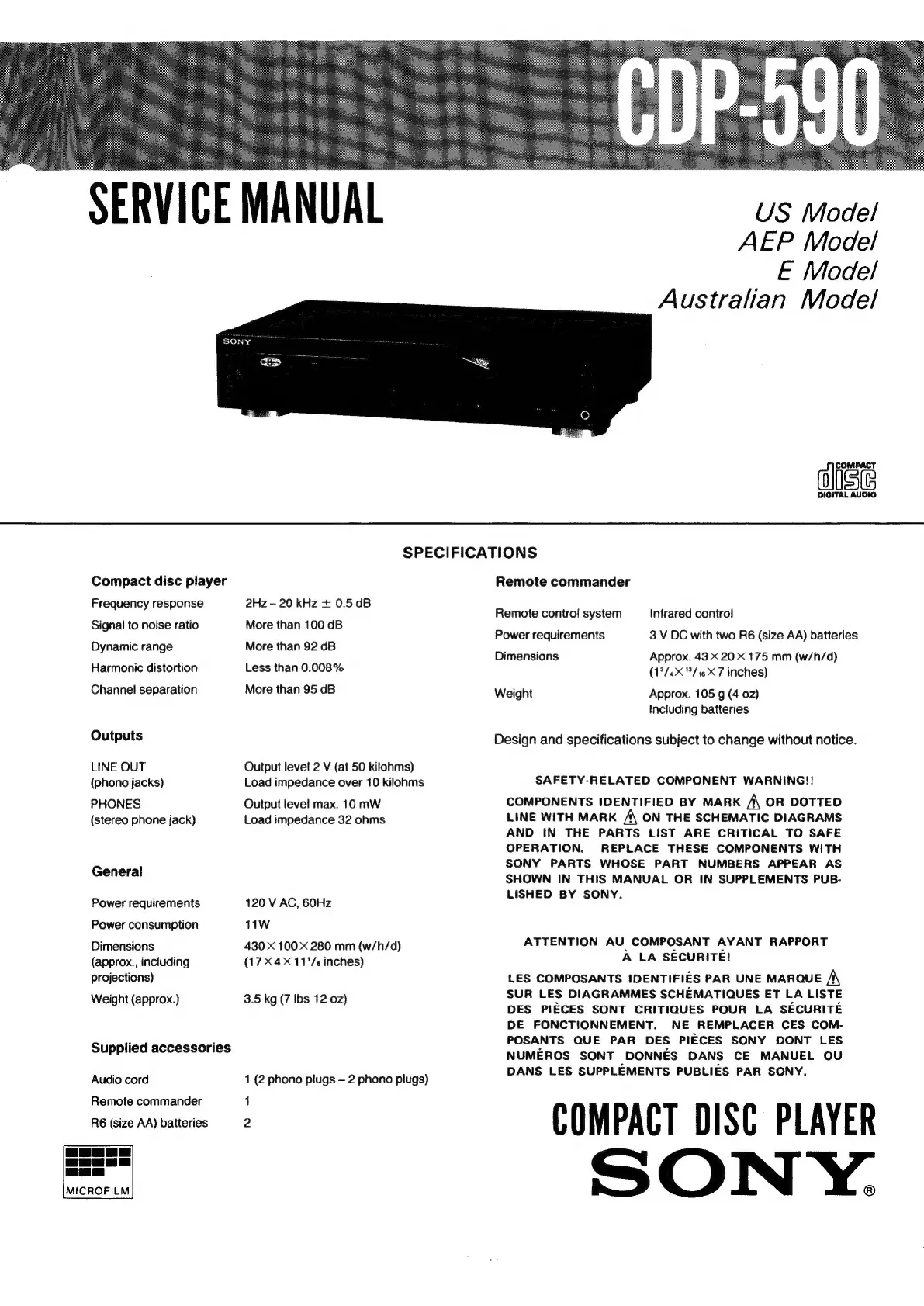

SERVICE MANUAL
Compact disc player
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Outputs
LINE OUT
(phono jacks)
PHONES
(stereo phone jack)
General
Power requirements
Power consumption
Dimensions
(approx., including
projections)
Weight (approx.)
Supplied accessories
Audio cord
Remote commander
R6 (size AA) batteries
MICROFILM
US Model
AEP Model
E Model
Australian Model
COMPACT
DIGITAL AUDIO
SPECIFICATIONS
2Hz - 20 kHz + 0.5 dB
More than 100 dB
More than 92 dB
Less than 0.008%
More than 95 dB
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
Output level max. 10 mW
Load impedance 32 ohms
120 V AC, 60Hz
11W
430 X 100 X 280 mm (w/h/d)
(17X 4X 11'/ inches)
3.5 kg (7 Ibs 12 02)
1 (2 phono plugs — 2 phono plugs)
{
2
Remote commander
Remote control system Infrared control
Power requirements
Approx. 43 X 20 x 175 mm (w/h/d)
(19/4X '°/16X 7 inches)
Weight Approx. 105 g (4 02)
Including batteries
Dimensions
Design and specifications subject to change without notice.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE MARQUE /\
SUR LES DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNES DANS CE MANUEL OU
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
COMPACT DISC PLAYER
SONY.
3 V DC with two R6 (size AA) batteries
