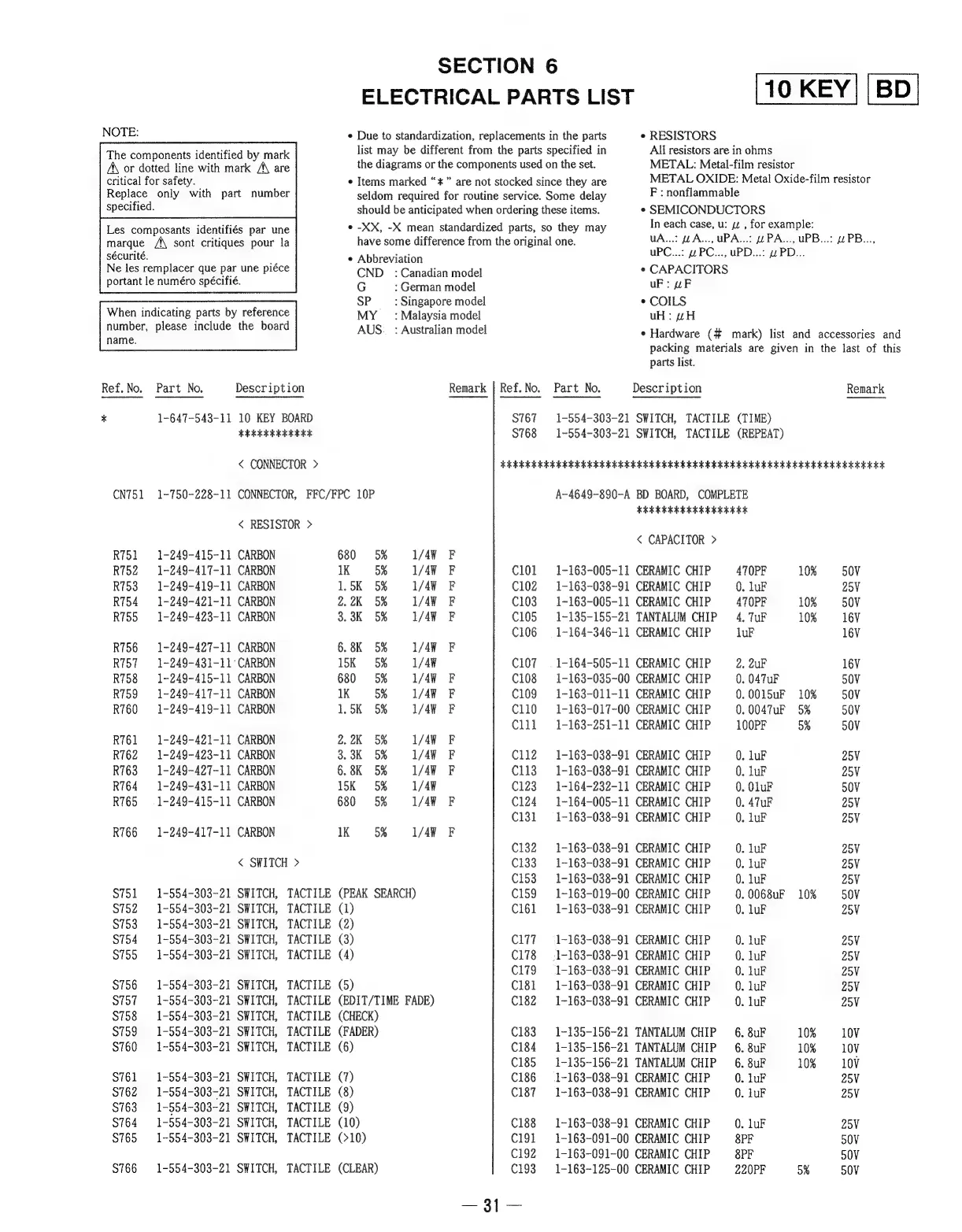

Sony CDP-C265 - SECTION 6. ELECTRICAL PARTS LIST; 10 KEY BOARD

SECTION 6
ELECTRICAL PARTS LIST
NOTE: e Due to standardization, replacements in the parts ¢ RESISTORS
: sg: list may be different from the parts specified in All resistors are in ohms
Th ts identified by mark : ;
oe eneiiies eisai vA oe the diagrams or the components used on the set. METAL: Metal-film resistor
critical for safety. _ ¢ Items marked “*” are not stocked since they are METAL OXIDE: Metal Oxide-film resistor
Replace only with part number seldom required for routine service. Some delay F : nonflammable
specified. should be anticipated when ordering these items. * SEMICONDUCTORS
: spue rr F : In each case, u: yu , for example:
Les composants identifiés par une XX, -X mean standardized parts, so they may
marque
/\
sont
critiques
pour
la
have
some
difference
from
the
original
one.
UA...
WA...,
UPA...)
@PA...,
uPB...:
@PB...,
a hk PC...: wPC..., uPD...: wPD
eee are. . Rese nian uPC...: wPC..., uPD...: w PD...
Ne les remplacer que par une piéce GND: “Canadianmodel ¢ CAPACITORS
portant le numéro spécifié. G Cacia model uF: uF
——— SP _: Singapore model ¢ COILS
When indicating parts by reference MY _ : Malaysia model uH : wH
pmnBer, -picaseanclude the voe AUS _ : Australian model ¢ Hardware (# mark) list and accessories and
name. : ; : : .
packing materials are given in the last of this
parts list.
Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
* 1-647-543-11 10 KEY BOARD S767 1-554-303-21 SWITCH, TACTILE (TIME)
KAKKKKKERRRE S768 1-554-303-21 SWITCH, TACTILE (REPEAT)
< CONNECTOR > KKKAKA KAKA AK AKAK AKA AKA RA AAK KARE AA KARE AA AK AREA AREER AREA RARER ARE
CN751 1-750-228-11 CONNECTOR, FFC/FPC 10P A-4649-890-A BD BOARD, COMPLETE
KKKAKAKAKKKAAKERKE
< RESISTOR >
< CAPACITOR >
R751 1-249-415-11 CARBON 680 5% 1/44 F
R752 1-249-417-11 CARBON IK 5% 1/44 F C101 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
R753 1-249-419-11 CARBON 1.5K 5% 1/44 F C102 1-163-038-91 CERAMIC CHIP 0. luF 25V
R754 1-249-421-11 CARBON 2.2K 5% 1/44 F C103 = 1-163-005-11 CERAMIC CHIP 470PF 10% 50V
R755 1-249-423-11 CARBON 3.3K 5% 1/44 F C105 = 1-135-155-21 TANTALUM CHIP 4, 7uF 10% 16V
C106 = 1-164-346-11 CERAMIC CHIP luF 16V
R756 1-249-427-11 CARBON 6.8K 5% 1/44 F
R757 1-249-431-11 CARBON 15K 5% 1/44 C107 = 1-164-505-11 CERAMIC CHIP 2. 2uF 16V
R758 1-249-415-11 CARBON 680 5% 1/4¥ F C108 1-163-035-00 CERAMIC CHIP 0. 047uF 50V
R759 1-249~-417-11 CARBON 1K = 5% 1/4¥ F C109 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 5O0V
R760 1-249-419-11 CARBON 1.5K 5% 1/4¥ F C110 =1-163-017-00 CERAMIC CHIP 0.0047uF 5% oOV
C111 = 1-163-251-11 CERAMIC CHIP 100PF 5% SOV
R761 1-249-421-11 CARBON 2.2K 5% 1/44 F
R762 1-249-423-11 CARBON 3. 3K 5% 1/4¥ F C112 ~=1-163-038-91 CERAMIC CHIP 0. luF 25V
R763 1-249-427-11 CARBON 6.8K 5% 1/4W F C113 1-163-038-91 CERAMIC CHIP 0. luF 25V
R764 1-249-431-11 CARBON 15K 5% 1/44 C123. 1-164-232-11 CERAMIC CHIP 0. OluF 50V
R765 = 1-249-415-11 CARBON 680 5% 1/44 F C124 1-164-005-11 CERAMIC CHIP 0. 47uF 25V
C131 = 1-163-038-91 CERAMIC CHIP 0. luF 25V
R766 1-249-417-11 CARBON IK 5% 1/44 F
C132 1-163-038-91 CERAMIC CHIP 0. luF 25V
< SWITCH > C133 1-163-038-91 CERAMIC CHIP 0. luF 25V
C153: 1-163-038-91 CERAMIC CHIP 0. luF 25V
S751 1-554-303-21 SWITCH, TACTILE (PEAK SEARCH) C159 1~163-019-00 CERAMIC CHIP 0. 0068uF 10% 50V
S752 1-554-303-21 SWITCH, TACTILE (1) C161 1-163-038-91 CERAMIC CHIP 0. luF 20V
S753 1-554-303-21 SWITCH, TACTILE (2)
S754 1-554~-303-21 SWITCH, TACTILE (3) C177 ~—- 1-163-038-91 CERAMIC CHIP 0. luF 25V
S755 1-554-303-21 SWITCH, TACTILE (4) C178 =: 1-163-038-91 CERAMIC CHIP 0. luF 25V
C179 =: 1-163-038-91 CERAMIC CHIP 0. luF 25V
S756 1-554-303-21 SWITCH, TACTILE (5) C181 1-163-038-91 CERAMIC CHIP 0. luF 25V
S757 1-554-303-21 SWITCH, TACTILE (EDIT/TIME FADE) C182 1-163-038-91 CERAMIC CHIP 0. luF 25V
S758 1-554-303-21 SWITCH, TACTILE (CHECK)
S759 1-554-303-21 SWITCH, TACTILE (FADER) C183 = 1-135-156-21 TANTALUM CHIP 6. 8uF 10% 10V
S760 1-554~-303-21 SWITCH, TACTILE (6) C184 = 1-135-156-21 TANTALUM CHIP 6. 8uF 10% 10V
C185 = 1-135-156-21 TANTALUM CHIP 6. 8uF 10% 10V
S761 1-554-303-21 SWITCH, TACTILE (7) C186 =: 1-163-038-91 CERAMIC CHIP 0. luF 25V
S762 1-554-303-21 SWITCH, TACTILE (8) C187 = 1-163-038-91 CERAMIC CHIP 0. luF 25V
$763 1-554~303-21 SWITCH, TACTILE (9)
S764 1-554-303-21 SWITCH, TACTILE (10) C188 1~-163-038-91 CERAMIC CHIP 0. luF 25V
S765 1-554~303-21 SWITCH, TACTILE (10) C191 1-163-091-00 CERAMIC CHIP 8PF 50V
C192 1-163-091-00 CERAMIC CHIP 8PF 50V
S766 1-554-303-21 SWITCH, TACTILE (CLEAR) C193 1-163-125-00 CERAMIC CHIP 220PF 5% 50V
