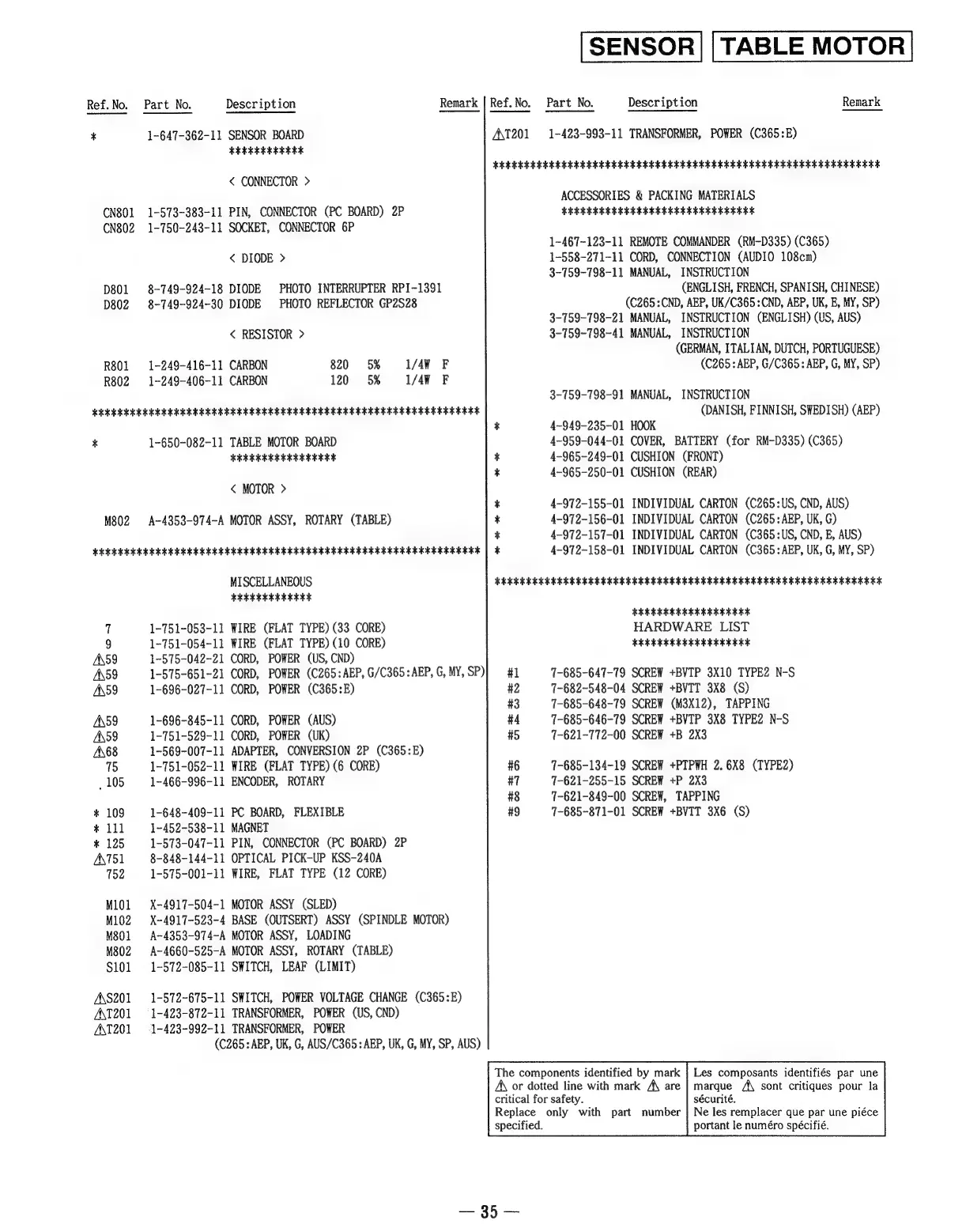

Sony CDP-C265 - SENSOR TABLE MOTOR

Ref.No. Part No. Description
* 1-647-362-11 SENSOR BOARD
KEKEKEKEKERE
< CONNECTOR >
CN801 1-573-383-11 PIN, CONNECTOR (PC BOARD) 2P
CN802 1-750-243-11 SOCKET, CONNECTOR 6P
< DIODE >
D801 8-749-924-18 DIODE PHOTO INTERRUPTER RPI-1391
D802 8-749-924-30 DIODE PHOTO REFLECTOR GP2S28
< RESISTOR >
R801 1-249-416-11 CARBON 820 5% 1/4¥ F
R802 1-249-406-11 CARBON 120 5% 1/4¥ F
KEKKAKKKKAKEKKKRERE KEKE ARERR ERE REAR AEE ERE EE ERE ERA E EERE
* 1-650-082-11 TABLE MOTOR BOARD
KEKKKKKARARARERES
< MOTOR >
M802 A-4353-974-A MOTOR ASSY, ROTARY (TABLE)
HAAR KERR ER ER KEK ER ER ERE ER ER EERE IR ERR EERIE RR ER ER ER ER
MISCELLANEOUS
EEKEKKAKKELES
7 1-751-053-11 WIRE (FLAT TYPE) (33 CORE)
9 1-751-054-11 WIRE (FLAT TYPE) (10 CORE)
A\59 1-575-042-21 CORD, POWER (US, CND)
A\59
1-575-651-21
CORD,
POWER
(C265:AEP,
G/C365:
AEP,
G,
MY, SP)
A\59
1-696~-027-11
CORD,
POWER
(C365:E)
A\59 1-696-845-11 CORD, POWER (AUS)
A\59 1-751-529-11 CORD, POWER (UK)
AGS 1-569-007-11 ADAPTER, CONVERSION 2P (C365:E)
15 1-751-052-11 WIRE (FLAT TYPE) (6 CORE)
_ 105 1-466-996-11 ENCODER, ROTARY
* 109 1-648-409-11 PC BOARD, FLEXIBLE
* lll 1-452-538-11 MAGNET
* 125 1-573-047-11 PIN, CONNECTOR (PC BOARD) 2P
ANT51 8-848-144-11 OPTICAL PICK-UP KSS-240A
752 1-575-001-11 WIRE, FLAT TYPE (12 CORE)
M101 X-4917-504-1 MOTOR ASSY (SLED)
M102 X-4917-523-4 BASE (OUTSERT) ASSY (SPINDLE MOTOR)
M801 A-4353-974-A MOTOR ASSY, LOADING
M802 A-4660-525-A MOTOR ASSY, ROTARY (TABLE)
S101 1-572-085-11 SWITCH, LEAF (LIMIT)
A\S201 1-572-675-11 SWITCH, POWER VOLTAGE CHANGE (C365:E)
A\T201 — 1-423-872-11 TRANSFORMER, POWER (US, CND)
Z\T201 =: 1-423-992-11 TRANSFORMER, POWER
(C265: AEP, UK, G, AUS/C365: AEP, UK, G, MY, SP, AUS)
ANT201
Remark | Ref. No.
Part No.
Description Remark
1-423-993-11 TRANSFORMER, POWER (C365:E)
KXKKEKKAKEEREAA AKER ERE EEE ER EERE RERERE RE RERE EERE RE EA EAA EE
ee
BS
*
x
*
ACCESSORIES & PACKING MATERIALS
KEKEKKKRERERARAAA ARERR RARE RES
1-467-123-11 REMOTE COMMANDER (RM-D335) (C365)
1-558-271-11 CORD, CONNECTION (AUDIO 108cm)
3-759-798-11 MANUAL, INSTRUCTION
(ENGLISH, FRENCH, SPANISH, CHINESE)
(C265 :CND, AEP, UK/C365:CND, AEP, UK, E, MY, SP)
3-759-798-21 MANUAL, INSTRUCTION (ENGLISH) (US, AUS)
3-759-798-41 MANUAL, INSTRUCTION
(GERMAN, ITALIAN, DUTCH, PORTUGUESE)
(C265: AEP, G/C365: AEP, G, MY, SP)
3-759-798-91 MANUAL, INSTRUCTION
(DANISH, FINNISH, SWEDISH) (AEP)
4-949-235-01 HOOK
4~959-044-01 COVER, BATTERY (for RM-D335) (C365)
4-965-249-01 CUSHION (FRONT)
4-965-250-01 CUSHION (REAR)
4-972-155-01 INDIVIDUAL CARTON (C265:US, CND, AUS)
4~972-156-01 INDIVIDUAL CARTON (C265: AEP, UK, G)
4-972-157-01 INDIVIDUAL CARTON (C365:US, CND, E, AUS)
4~972-158-01 INDIVIDUAL CARTON (C365: AEP, UK, G, MY, SP)
KAKKKKEAAKARER EERE EREE AERA E ARE RERRERERA ERA EERE ERERE AERA AAAS
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
KEKEKAKAKEK AKER ERE
HARDWARE LIST
KKKKAKEEREREE EKER EE
7-685-647-79 SCREW +BVIP 3X10 TYPE2 N-S
7-682-548-04 SCREW +BVIT 3X8 (S)
7-685-648-79 SCREW (M3X12), TAPPING
7-685-646-79 SCREW +BVIP 3X8 TYPEZ N-S
7-621-772-00 SCREW +B 2X3
7-685-134-19 SCREW +PTPWH 2. 6X8 (TYPE2)
7-621-255-15 SCREW +P 2X3
7-621-849-00 SCREW, TAPPING
7~-685~-871-01 SCREW +BVIT 3X6 (S)
