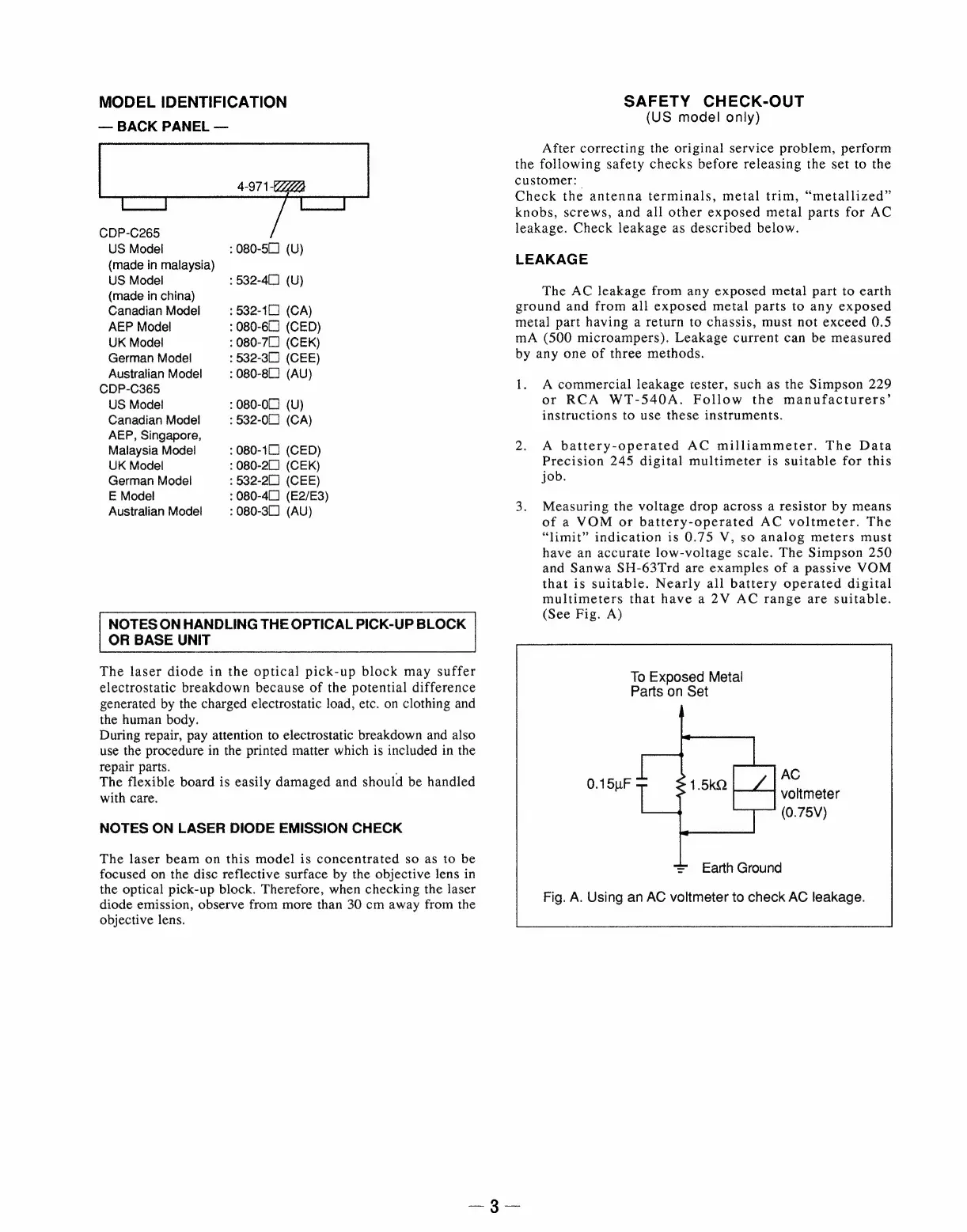

MODEL IDENTIFICATION
— BACK PANEL —
4-971(ZZZ
CDP-C265
US Model :080-5C] (U)
(made in malaysia)
US Model : 532-40] (U)
(made in china)
Canadian Model : 532-11 (CA)
AEP Model : 080-60] (CED)
UK Model : 080-70) (CEK)
German Model : 532-31 (CEE)
Australian Model : 080-80] (AU)
CDP-C365
US Model : 080-0L (U)
Canadian Model : 532-00) (CA)
AEP, Singapore,
Malaysia Model :080-1(] (CED)
UK Model : 080-20] (CEK)
German Model : 532-201) (CEE)
E Model 080-40] (E2/E3)
Australian Model : 080-30) (AU)
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential difference
generated by the charged electrostatic load, etc. on clothing and
the human body.
During repair, pay attention to electrostatic breakdown and also
use the procedure in the printed matter which is included in the
repair parts. ;
The flexible board is easily damaged and should be handled
with care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be
focused on the disc reflective surface by the objective lens in
the optical pick-up block. Therefore, when checking the laser
diode emission, observe from more than 30 cm away from the
objective lens.
SAFETY CHECK-OUT
(US model only)
After correcting the original service problem, perform
the following safety checks before releasing the set to the
customer: |
Check the antenna terminals, metal trim, “metallized”
knobs, screws, and all other exposed metal parts for AC
leakage. Check leakage as described below.
LEAKAGE
The AC leakage from any exposed metal part to earth
ground and from all exposed metal parts to any exposed
metal part having a return to chassis, must not exceed 0.5
mA (500 microampers). Leakage current can be measured
by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229
or RCA WT-540A. Follow the manufacturers’
instructions to use these instruments.
2. <A battery-operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for this
job.
3. Measuring the voltage drop across a resistor by means
of a VOM or battery-operated AC voltmeter. The
“limit” indication is 0.75 V, so analog meters must
have an accurate low-voltage scale. The Simpson 250
and Sanwa SH-63Trd are examples of a passive VOM
that is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are suitable.
(See Fig. A)
To Exposed Metal
Parts on Set
AC
aa voltmeter
(0.75V)
= Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
