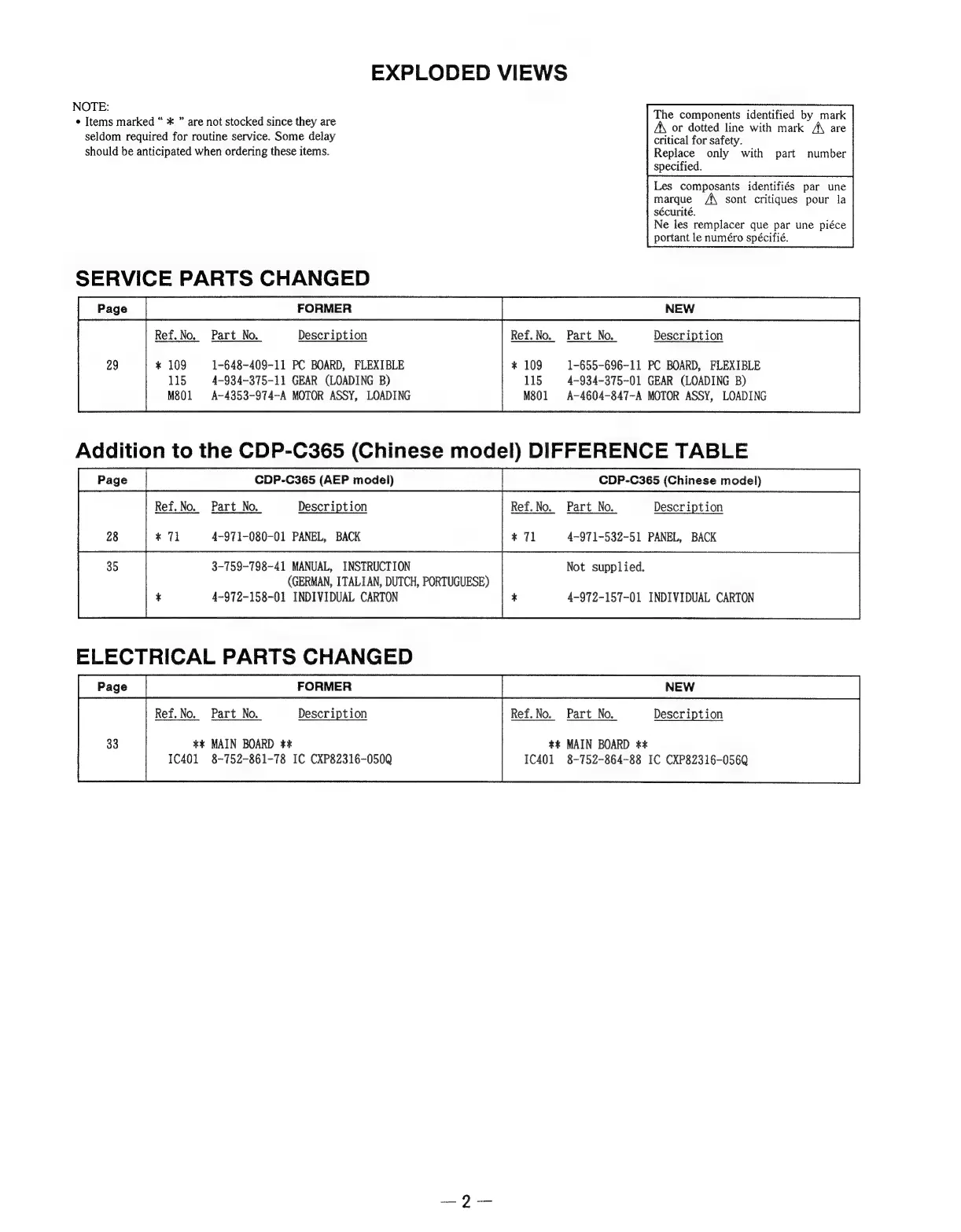

EXPLODED VIEWS
NOTE:
¢ Items marked “ * ” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque /\ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
SERVICE PARTS CHANGED
[ree | SORWERODSOCNE
Part No. Description Part No. Description
1-648-409-11 PC BOARD, FLEXIBLE 1-655-696-11 PC BOARD, FLEXIBLE
4-934-375-11 GEAR (LOADING B) 4~934-375-01 GEAR (LOADING B)
A-4353-974-A MOTOR ASSY, LOADING A-4604-847-A MOTOR ASSY, LOADING
Part No. Description Ref.No. Part No. Description
4-971-080-01 PANEL, BACK * 71 4-971-532-51 PANEL, BACK
3-759-798-41 MANUAL, INSTRUCTION Not supplied.
(GERMAN, ITALIAN, DUTCH, PORTUGUESE)
4-972-158-01 INDIVIDUAL CARTON 4-972-157-01 INDIVIDUAL CARTON
Ref.No. Part No. Description Ref.No. Part No. Description
** MAIN BOARD ¥% ** MAIN BOARD **
IC401 8-752-861-78 IC CXP82316-050Q 1C401 8-752-864-88 IC CXP82316-056Q
