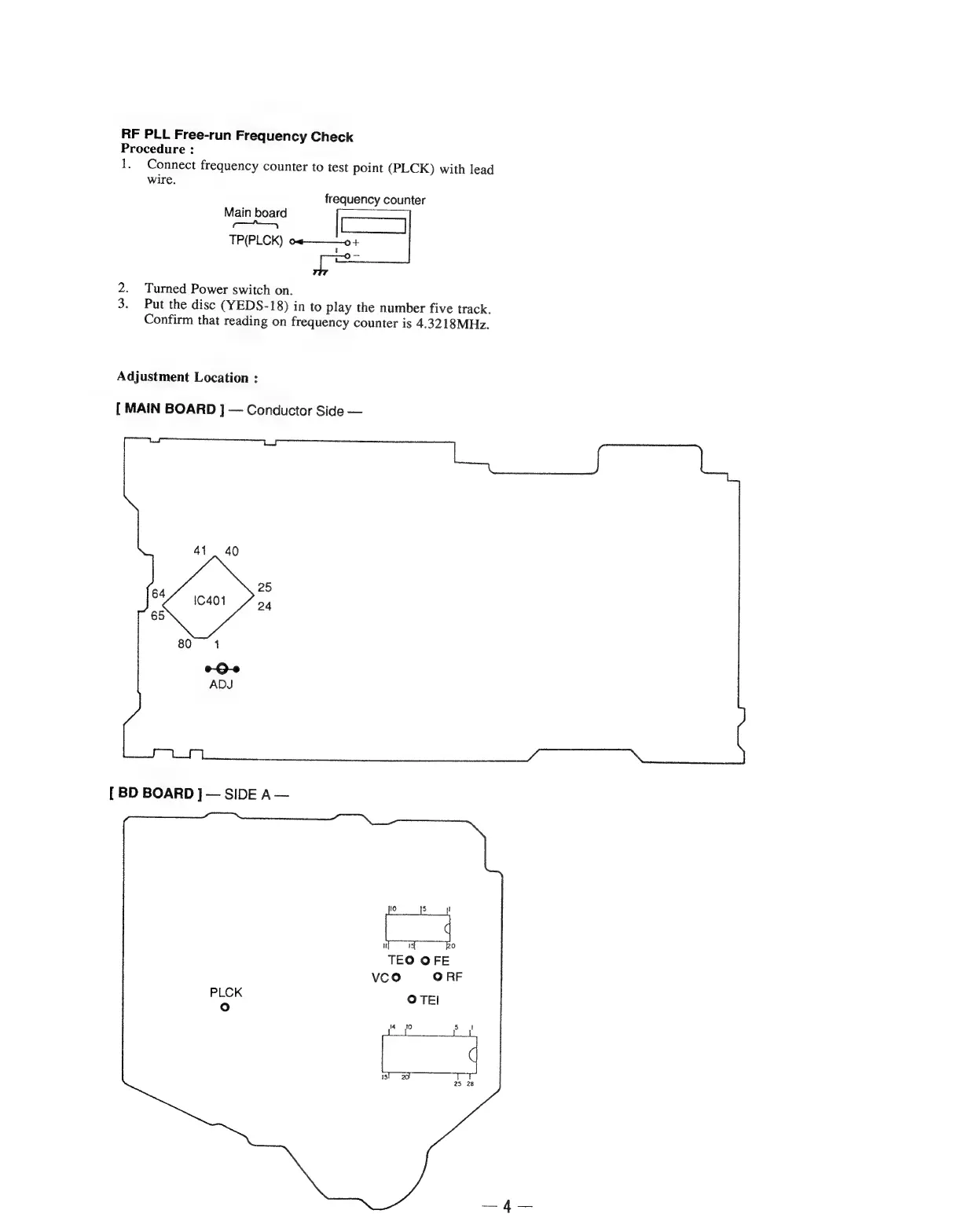

Sony CDP-C265 - Page 32

RF
PLL
Free-run
Frequency
Check
Procedure
:
1.
Connect
frequency
counter
to
test
point
(PLCK)
with
lead
wire.
frequency
counter
Main board
fo aa
TP(PLCK) o«——_—-o +
U _
2. Turned Power switch on.
3.
Put
the
disc
(YEDS-18)
in
to
play
the
number
five
track.
Confirm
that
reading
on
frequency
counter
is
4.3218MHz.
Adjustment Location :
[
MAIN
BOARD
]
—
Conductor
Side
—
[ BD BOARD ] — SIDE A —
