Sony CDP-C265 - 2-3. OPTICAL PICK-UP BLOCK ASSEMBLY; 2-4. BRACKET (GEAR) ASSEMBLY

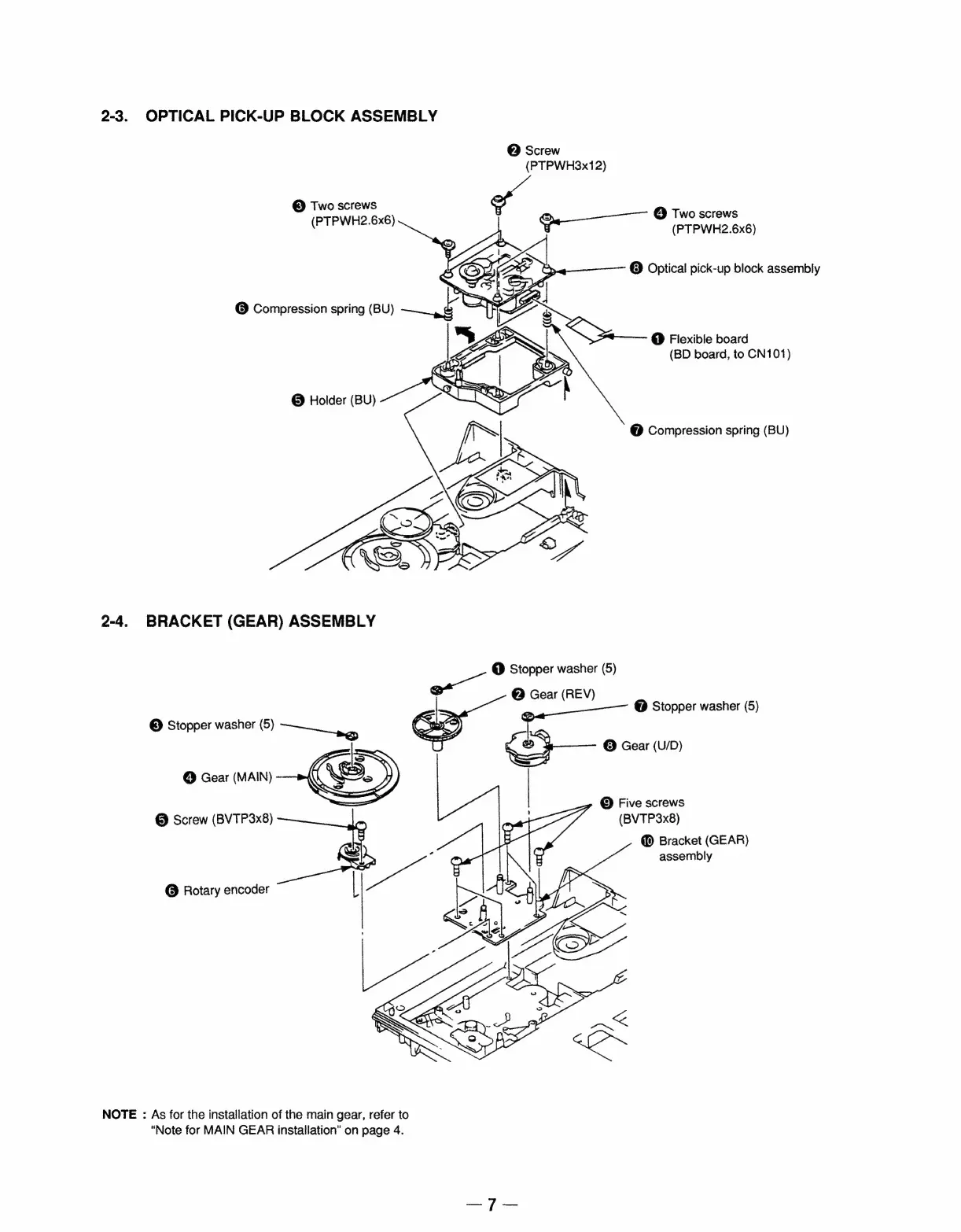

2-3. OPTICAL PICK-UP BLOCK ASSEMBLY
@ Screw
(PTPWH3x12)
© Two screws
ef @ Two screws
(PTPWH2.6x6) oo preweEee)
t
GHZ @ Optical pick-up block assembly
Oh
© Compression spring (BU)
(BD board, to CN101)
@ Holder (BU)
@ Compression spring (BU)
2-4. BRACKET (GEAR) ASSEMBLY
@ Stopper washer (5)
@ Gear (REV)
@ Stopper washer (5)
© Stopper washer (5) ae
rs; oe @® Gear (U/D)
=
@ Gear (MAIN) a |
@ Screw (BVTP3x8) }
_-
@ Rotary encoder
\
© Five screws
(BVTP3x8)
@ Bracket (GEAR)
assembly
NOTE : As for the installation of the main gear, refer to
“Note for MAIN GEAR installation” on page 4.
