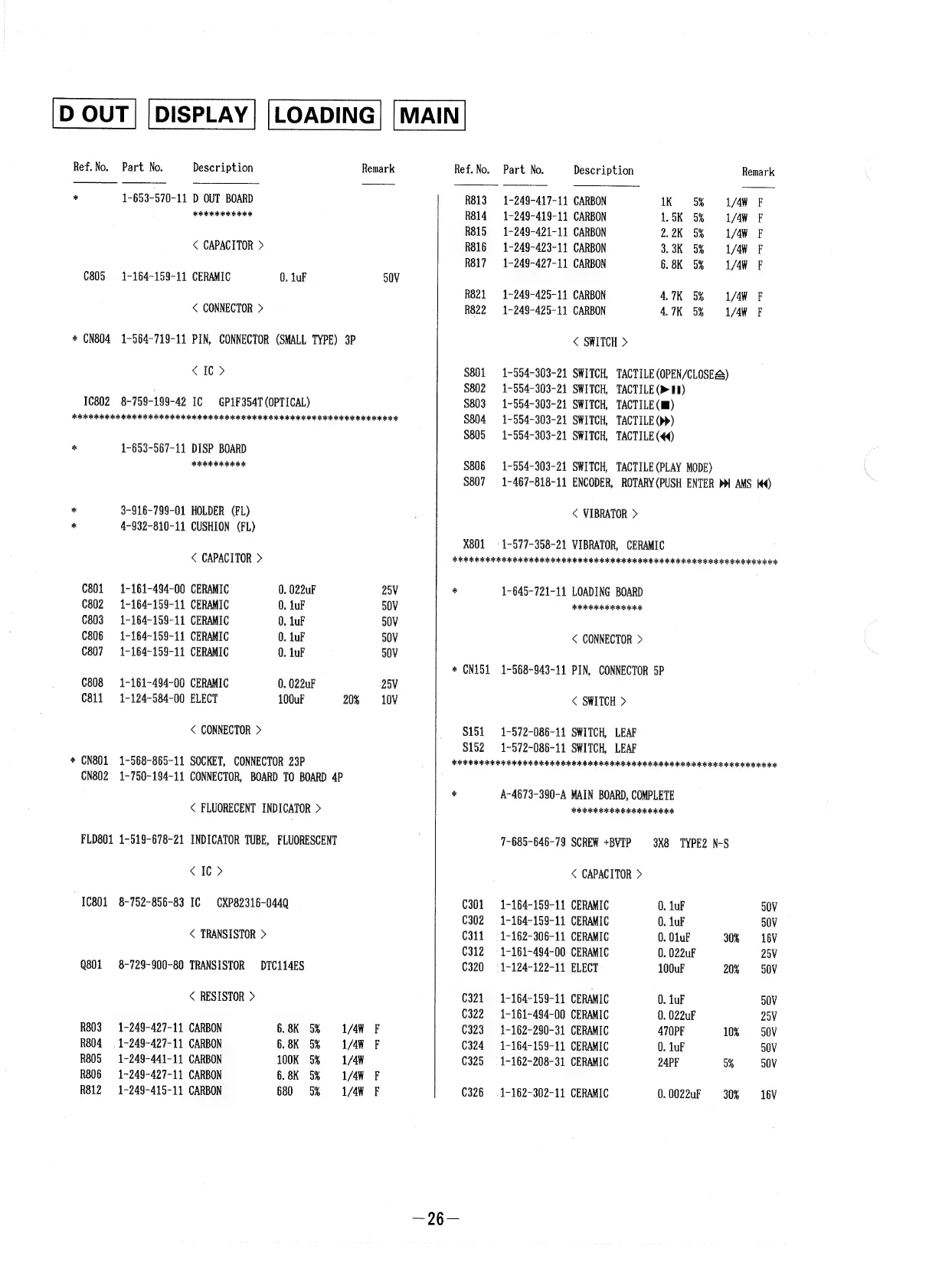

Ref. No. Part No. Description Remark
« 1-653-570-11 D OUT BOARD
FeO IOK
< CAPACITOR >
(805 = 1-164-159-11 CERAMIC 0. luF o0V
< CONNECTOR >
* CN804 1-564~719-11 PIN, CONNECTOR (SMALL TYPE) 3P
< IC >
1¢802 8-759-199-42 IC GP1F354T (OPTICAL)
SEO IOC IC I IOI II II OI IGOR IO IO IR I IOR AOR OR TOR AOR I
* 1-653-567-11 DISP BOARD
eliototokotok kok
* 3-916-799-01 HOLDER (FL)
* 4-932-810-11 CUSHION (FL)
< CAPACITOR >
C801 1-161-494-00 CERAMIC 0. 022uF 25V
C802 1-164-159-11 CERAMIC 0. luF o0V
C803 1-164-159-11 CERAMIC 0. luF 50V
C806 = 1-164~-159-11 CERAMIC 0. luF 50V
C807: 1-164-159-11 CERAMIC 0. luF 30V
C808 1-161-494-00 CERAMIC 0. 022uF 25V
C811 = 1-124-584-00 ELECT 100uF 20% 10V
< CONNECTOR >
* CN801 1-568-865-11 SOCKET, CONNECTOR 23P
CN802 1-750-194-11 CONNECTOR, BOARD TO BOARD 4P
< FLUORECENT INDICATOR >
FLD801 1-519-678-21 INDICATOR TUBE, FLUORESCENT
< IC >
10801 8-752-856-83 IC CXP82316-044Q
< TRANSISTOR >
Q801 8-729-900-80 TRANSISTOR DTC114ES
< RESISTOR >
R803 1-249-427-11 CARBON 6.8K 5% 1/48 F
R804 = 1-249-427-11 CARBON 6.8K 5% 1/4 F
R805 1-249-441-11 CARBON 100K 5% 1/4W
R806 1-249-427-11 CARBON 6.8K 5% 1/4W F
R812 1-249-415-11 CARBON 680 5% 1/4¥ F
Ref. No. Part No. Description Remark
R813. 1-249-417-11 CARBON iK 5% 1/4¥ F
R814: 1-249-419-11 CARBON 1.5K 5% 1/4W F
R815 1-249-421-11 CARBON 2.2K 5% 1/4W F
R816 1-249-423-11 CARBON 3.3K 5% 1/4W F
R817. 1-249-427-11 CARBON 6. 8K 5% 1/4W F
R821 1-249-425-11 CARBON 4.7K 5% 1/4W F
R822 1-249-425-11 CARBON 4.7K 5% 1/4W F
< SWITCH >
S801 1~-554-303-21 SWITCH, TACTILE (OPEN/CLOSEA)
$802 1-554-303-21 SWITCH, TACTILE (> tI)
S803 1-554-303-21 SWITCH, TACTILE (ml)
S804 1-554-303-21 SWITCH, TACTILE (>>)
S805 1-554-303-21 SWITCH, TACTILE (44)
$806 1-554-303-21 SWITCH, TACTILE(PLAY MODE)
S807 1-467-818-11 ENCODER, ROTARY(PUSH ENTER >» AMS i)
< VIBRATOR >
X801_ = 1-577-358-21 VIBRATOR, CERAMIC
FEO I OOO IR IO OOOO GI SIO I ok a loi lok fokoiotok ik fotok
* 1-645-721-11 LOADING BOARD
2a dotok dofok ok
< CONNECTOR >
* CN151 1-568-943-11 PIN, CONNECTOR 5P
< SWITCH >
S151 1-572-086-11 SWITCH, LEAF
$152 1-572-086-11 SWITCH, LEAF
FEC OIG GIO IO IO I RIO ooo ok folokok tok fotok dtokk
¥ A-4673-390-A MAIN BOARD, COMPLETE
2a oo kitok ok k k
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
< CAPACITOR >
C301 1-164-159-11 CERAMIC 0. luF a0V
(302 1-164-159-11 CERAMIC 0. luF 30V
C311 = 1-162-306-11 CERAMIC 0. O1uF 30% = 16V
C312 = 1-161-494-00 CERAMIC 0. 022uF 25V
0320 = 1-124-122-11 ELECT 100uF 20% 50V
(321 1-164-159-11 CERAMIC 0. luF 50V
(322 1-161-494-00 CERAMIC 0. 022uF 20V
(323 = 1-162-290-31 CERAMIC 470PF 10% 50V
(324 ~=1-164-159-11 CERAMIC 0. luF 30V
(325 = 1-162-208-31 CERAMIC 24PF o% o0V
C326 = 1-162-302-11 CERAMIC 0.0022uF 30% 16V
