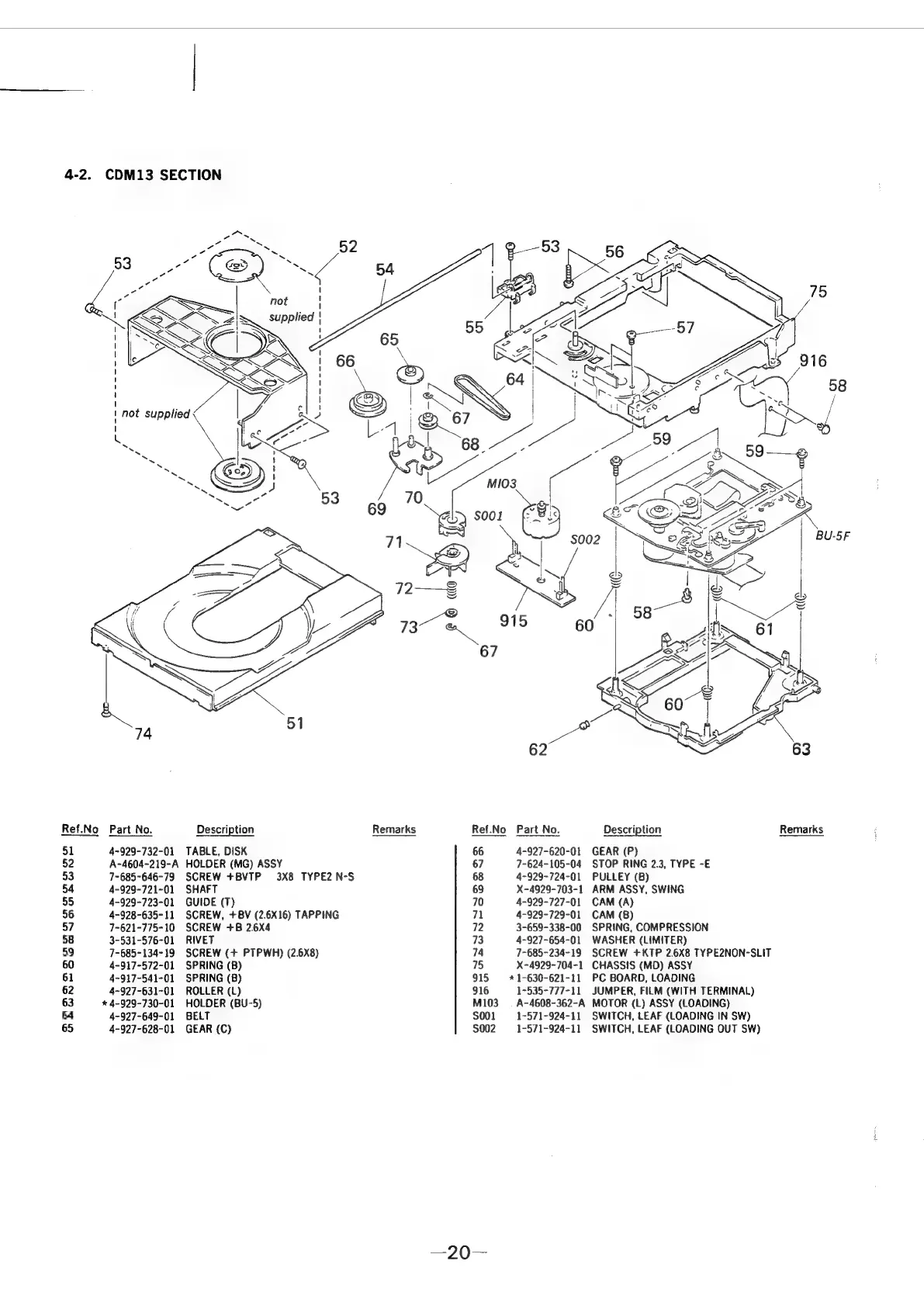

4-2. CDM13 SECTION
Ref.No Part No.
Remarks
Description
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
4-929-732-01
A-4604-219-A
7-685-646-79
4-929-721-01
4-929-723-01
4-928-635-11
7-621-775-10
3-531-576-01
7-685-134-19
4-917-572-01
4-917-541-01
4-927-631-01
* 4-929-730-01
4-927-649-01
4-927-628-01
TABLE, DISK
HOLDER (MG) ASSY
SCREW +BVTP 3X8 TYPE2 N-S
SHAFT
GUIDE (T)
SCREW, +BV (2.6X16) TAPPING
SCREW +B 2.6X4
RIVET
SCREW (+ PTPWH) (2.6X8)
SPRING (B)
SPRING (B)
ROLLER (L)
HOLDER (BU-5)
BELT
GEAR (C)
Ref.No Part No.
66 4-927-620-01
67 7-624- 105-04
68 4-929-724-01
69 X-4929-703-1
70 4-929-727-01
7 4-929-729-01
72 3-659-338-00
73 4-927-654-01
74 7-685-234-19
75 X-4929-704-1
915 * 1-630-621-11
916 1-535-777-1311
M103 = A-4608-362-A
$001 1-571-924-1411
$002: 1-571-924-11
Description Remarks
GEAR (P)
STOP RING 2.3, TYPE -E
PULLEY (B)
ARM ASSY, SWING
CAM (A)
CAM (B)
SPRING, COMPRESSION
WASHER (LIMITER)
SCREW +KTP 2.6X8 TYPE2NON-SLIT
CHASSIS (MD) ASSY
PC BOARD, LOADING
JUMPER, FILM (WITH TERMINAL)
MOTOR (L) ASSY (LOADING)
SWITCH, LEAF (LOADING IN SW)
SWITCH, LEAF (LOADING OUT SW)
