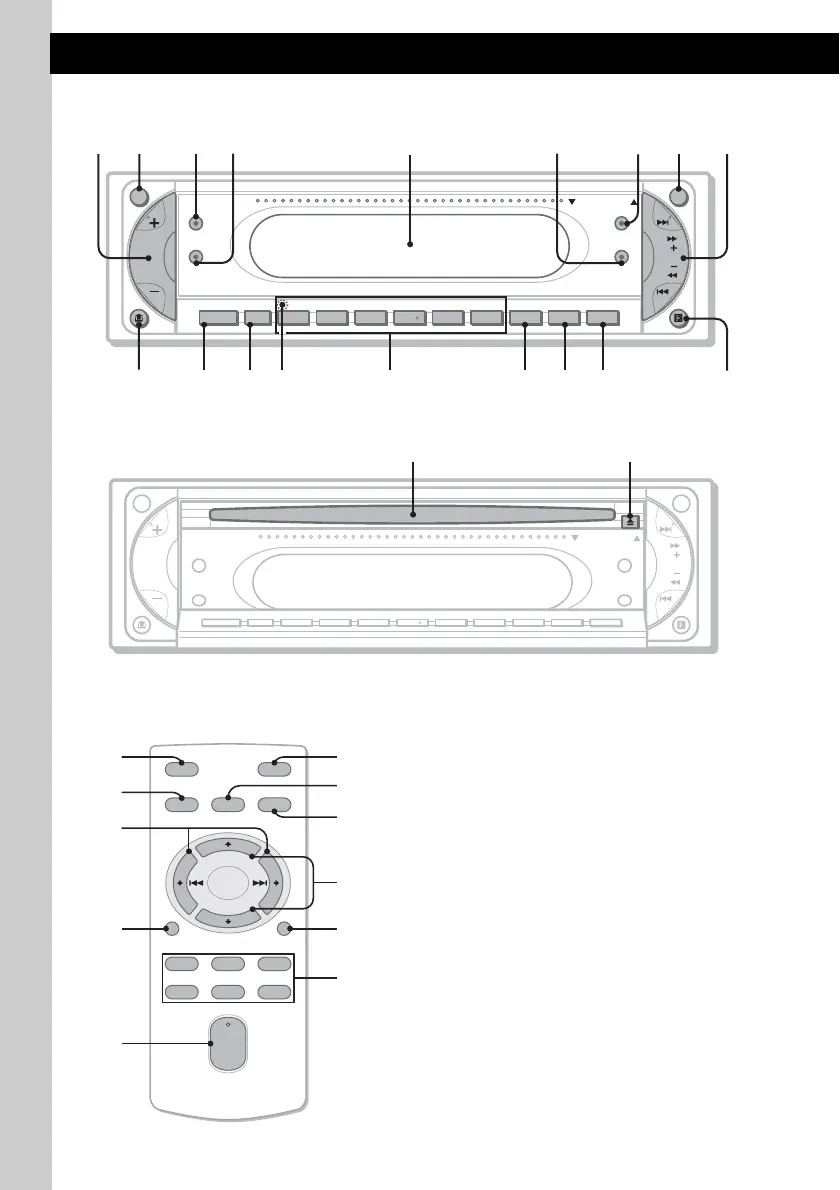

Location of controls and basic operations
Main unit
OPEN/CLOSE shutter opened
Card remote commander
RM-X151
Refer to the pages listed for details. The
corresponding buttons on the card remote
commander control the same functions as those
on the unit.
A Volume (VOL) +/– button
To adjust volume.
B ATT (attenuate) button
To attenuate the sound. To cancel, press
again.
C DSPL (display) button 8, 11
To change display items.
D SEL (select) button 4, 13
To select items.
E Display window
F EQ3 (equalizer) button 2, 13
To select an equalizer type (Xplod, Vocal,
Club, Jazz, New
Age, Rock, Custom or off).
