CDX-GT54UIW/GT540UI
12

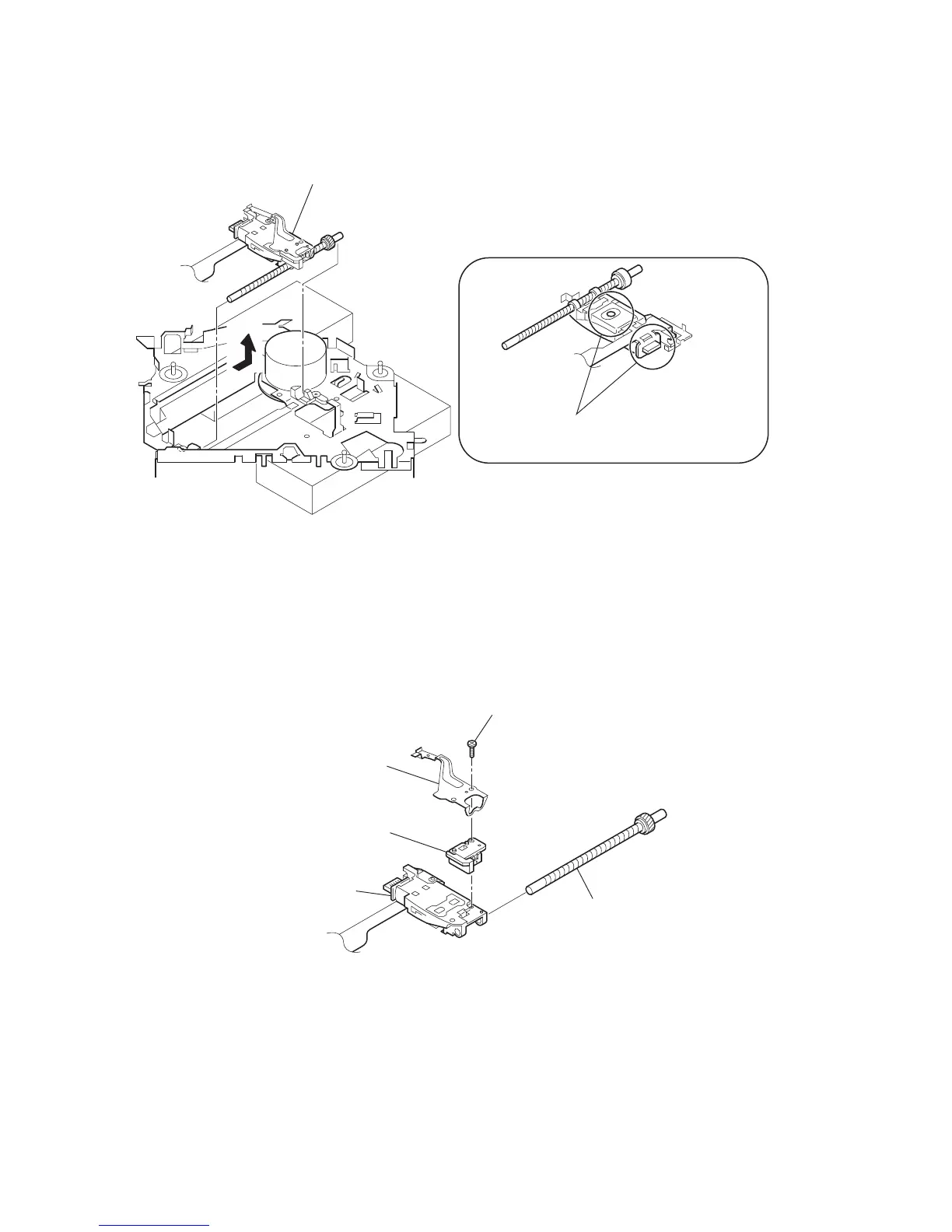

3-10. OPTICAL PICK-UP SECTION
3-11. OPTICAL PICK-UP
1
2 optical pick-up section
Note: Be careful not to touch the lens and hologram
terminal when removing the optical pick-up section.
1 tapping screw
(P 1.4)
2 leaf spring (OPS)
3 rack
5 optical pick-up
4 lead screw assy
