9
CDX-MP50

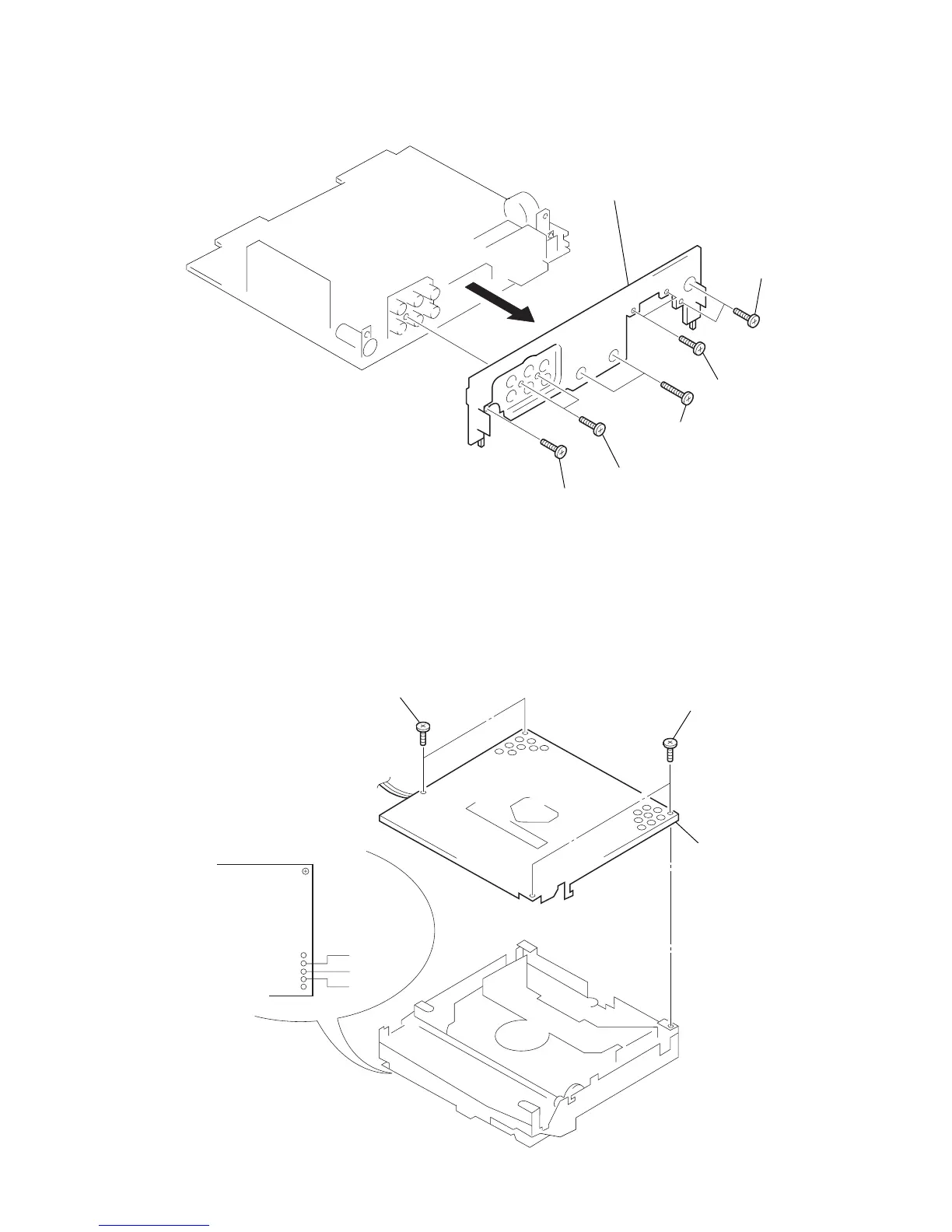

2-5. CHASSIS (T) SUB ASSY
2-4. HEAT SINK
1
PTT 2.6x8
2
PTT 2.6x8
5
PTT 2.6x
8
4
P 2.6x8
3
PTT 2.6x12
6
heat sink
1
Unsoldering three lead wires.
4
chassis (T) sub ass
y
black
SERVO board
(SIDE A)
red
white
2
P 2x3
3
P 2x3
