Location of controls and basic operations

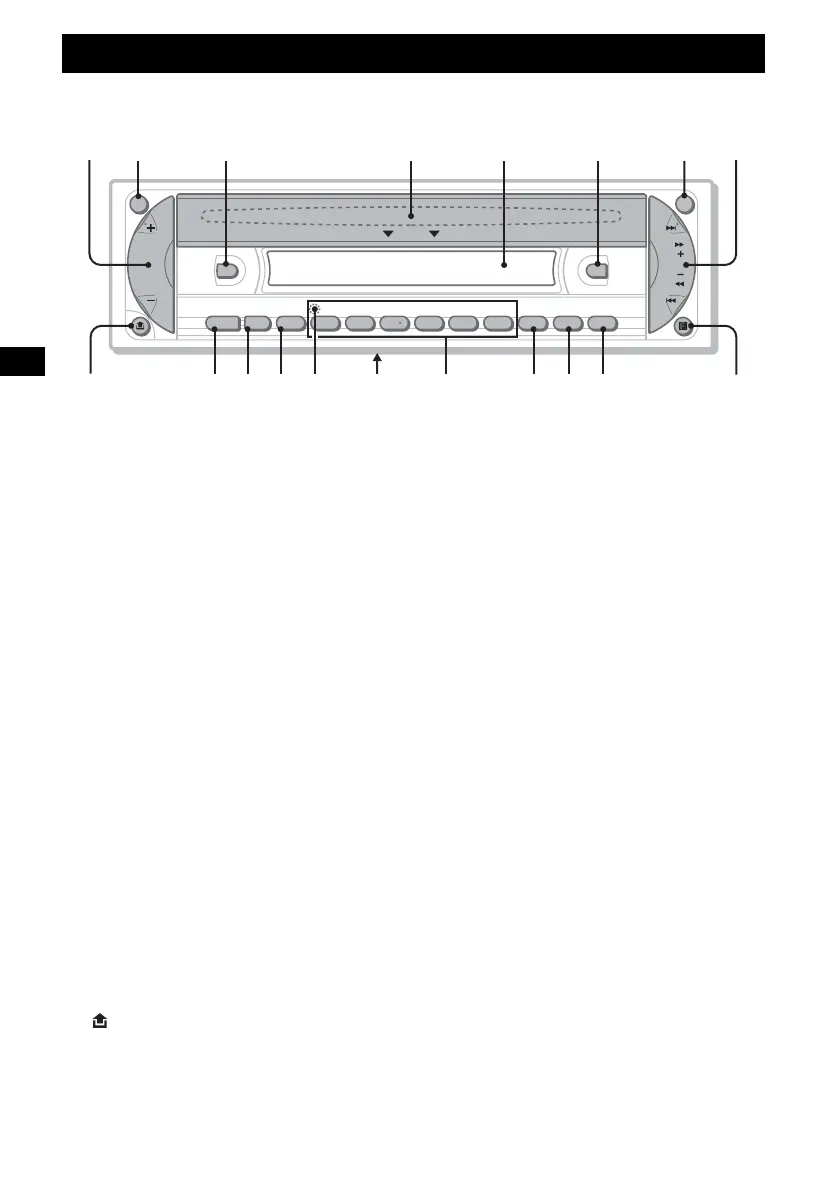

Main unit
Refer to the pages listed for details. The
corresponding buttons on the card remote
commander control the same functions as those
on the unit.
a Volume +/– button
To adjust volume.
b ATT (attenuate) button
To attenuate the sound. To cancel, press
again.
c DSPL (display)/DIM (dimmer) button
4, 7, 9
To change display items (press); change the
display brightness (press and hold).
d OPEN shutter, disc slot (located behind
the shutter) 5
e Display window
f EQ3 (equalizer) button 8
To select an equalizer type (XPLOD,
VOCAL, CLUB, JAZZ, NEWAGE, ROCK,
CUSTOM or OFF).
g OFF button
To power off/stop the source.
h SEEK +/– button
Radio:
To tune in stations automatically (press); find
a station manually (press and hold).
CD:
To skip tracks (press); skip tracks
continuously (press, then press again within
about 1 second and hold); fast-forward/
reverse a track (press and hold).
i (front panel release) button 4
j SOURCE button
To power on/change the source (Radio/CD/
MD*
1
).
k MODE button 7, 10
To select the radio band (FM/AM)/select the
unit*
2
.
l SEL (select) button 4, 8, 9
To select items.
m RESET button (located behind the front
panel) 4
n Frequency select switch (located on the
bottom of the unit)
See “Frequency select switch” in the
supplied installation/connections manual.
o Number buttons
Radio:
To receive stored stations (press); store
stations (press and hold).
CD/MD*
1
:
(1)/(2): GP*
3
/DISC*
2
–/+
To skip groups (press); skip groups
continuously (press and hold).
(3): REP 7
(4): SHUF 7
p SENS/BTM button 7
To improve weak reception: LOCAL/MONO
(press); start the BTM function (press and
hold).
q SCRL button 7
To scroll the display item.
r LIST/CAT button 8, 10
To list up.
s Receptor for the card remote
commander
*1 When an MD changer is connected.
*2 When a CD/MD changer is connected.
*3 When an MP3/ATRAC CD is played and a changer
is not connected. If the changer is connected, the
operation is different, see page 10.
ATT OFF
SOURCE MODE
SEL
SEEK
123456
SENS
REP BTM
–
GP/DISC
+
SHUF
LISTSCRL
DSPL
DIM
EQ3
OPEN
SEEK
CAT
12 3 4 5 6 7 8
CDX-R30M
9 0 qaqs qd qf qg qh qj qk ql
