| CFD-460

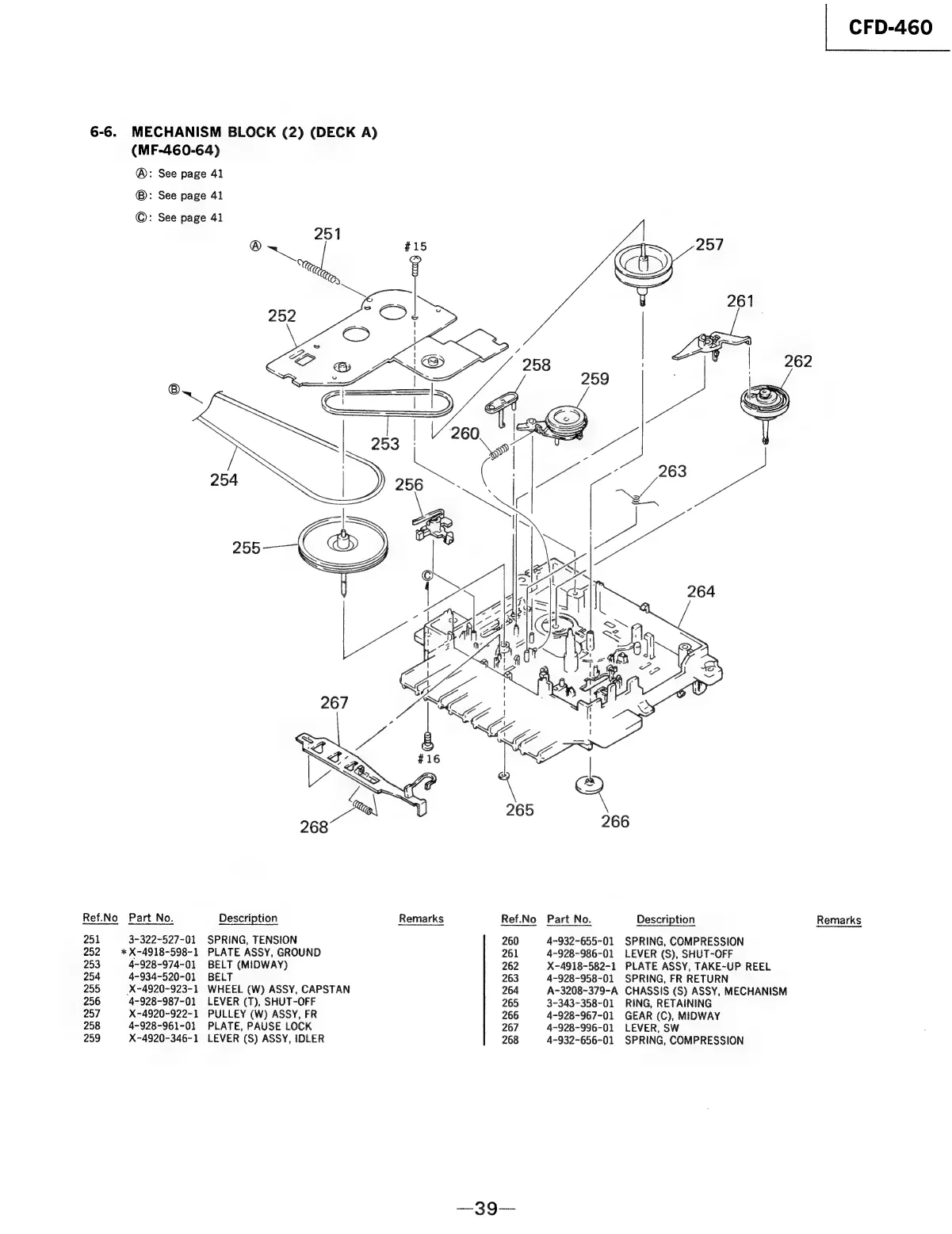

6-6. MECHANISM BLOCK (2) (DECK A)
(MF-460-64)
®: See page 41
®: See page 41
©: See page 41
#15 257
Ref.No Part No. Description Remarks Ref.No Part No. Description Remarks
251 3-322-527-01 SPRING, TENSION 260 4-932-655-01 SPRING, COMPRESSION
252 * X-4918-598-1 PLATE ASSY, GROUND 261 4-928-986-01 LEVER (S), SHUT-OFF
253 4-928-974-01 BELT (MIDWAY) 262 X-4918-582-1 PLATE ASSY, TAKE-UP REEL
254 4-934-520-01 BELT 263 4-928-958-01 SPRING, FR RETURN
255 X-4920-923-1 WHEEL (W) ASSY, CAPSTAN 264 A-3208-379-A CHASSIS (S) ASSY, MECHANISM
256 4-928-987-01 LEVER (T), SHUT-OFF 265 3-343~-358-01 RING, RETAINING
257 X-4920-922-1 PULLEY (W) ASSY, FR 266 4-928-967-01 GEAR (C), MIDWAY
258 4-928-961-01 PLATE, PAUSE LOCK 267 4-928-996-01 LEVER, SW
259 X-4920-346-1 LEVER (S) ASSY, IDLER 268 4-932-656-01 SPRING, COMPRESSION
