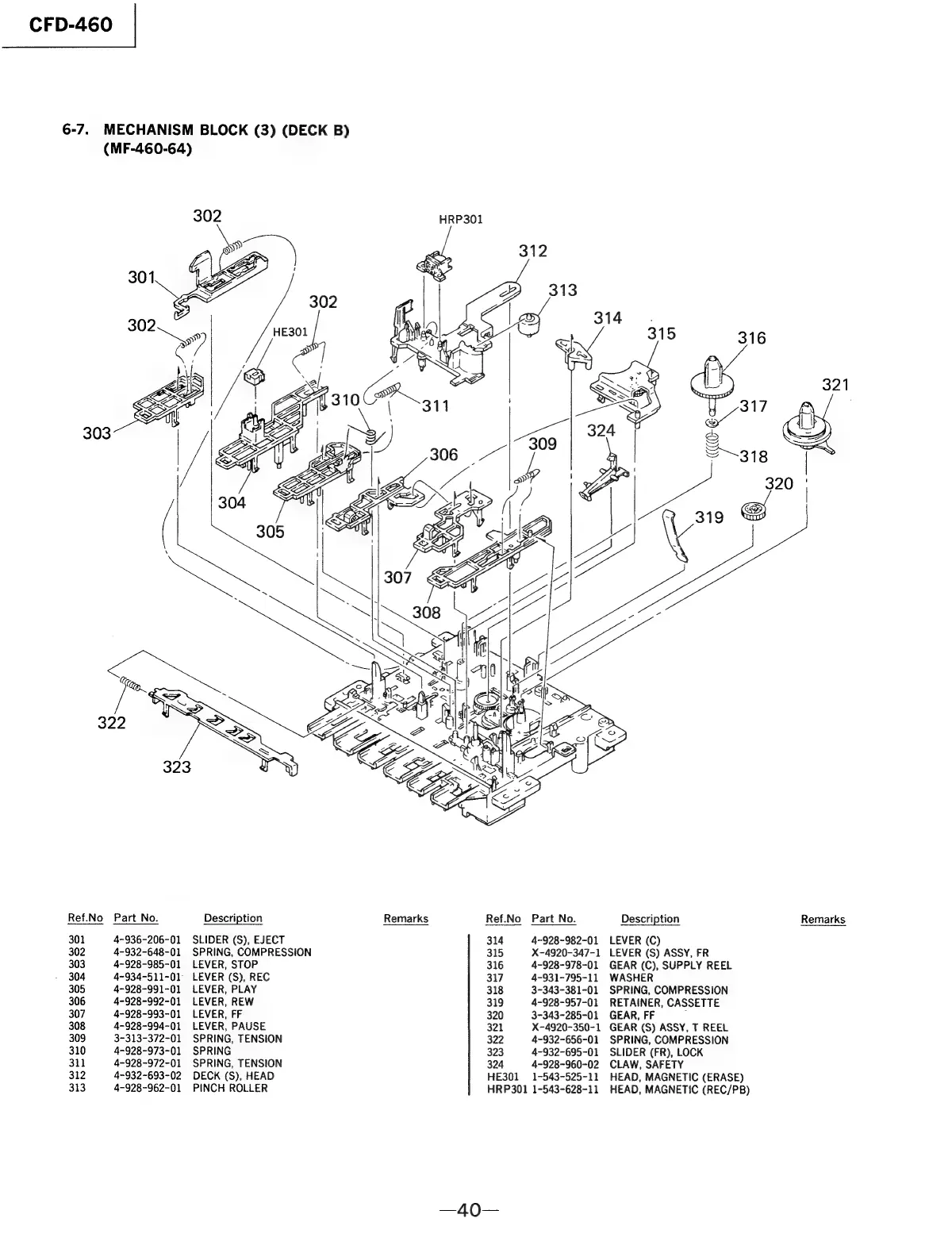

6-7. MECHANISM BLOCK (3) (DECK B)
(MF-460-64)
Ref.No Part No.
301 4-936-206-01
302 4-932-648-01
303 4-928-985-01
- 304 4-934-511-01:
305 4-928-991-01
306 4-928-992-01
307 4-928-993-01
308 4-928-994-01
309 3-313-372-01
310 4-928-973-01
311 4-928-972-01
312 4-932-693-02
313 4-928-962-01
Description
SLIDER (S), EJECT
SPRING, COMPRESSION
LEVER, STOP
LEVER (S), REC
LEVER, PLAY
LEVER, REW
LEVER, FF
LEVER, PAUSE
SPRING, TENSION
SPRING
SPRING, TENSION
DECK (S), HEAD
PINCH ROLLER
Remarks
HRP301
Ref.No Part No.
314 4-928-982-01
315 X-4920-347-1
316 4-928-978-01
317 4-931-795-11
318 3-343-381-01
319 4-928-957-01
320 3-343-285-01
321 X-4920-350-1
322 4-932-656-01
323 4-932-695-01
324 4-928-960-02
HE301 1-543-525-11
HRP301 1-543-628-11
—40—
Description Remarks
LEVER (C)
LEVER (S) ASSY, FR
GEAR (C), SUPPLY REEL
WASHER
SPRING, COMPRESSION
RETAINER, CASSETTE
GEAR, FF ,
GEAR (S) ASSY, T REEL
SPRING, COMPRESSION
SLIDER (FR), LOCK
CLAW, SAFETY
HEAD, MAGNETIC (ERASE)
HEAD, MAGNETIC (REC/PB)
