| CFD-460

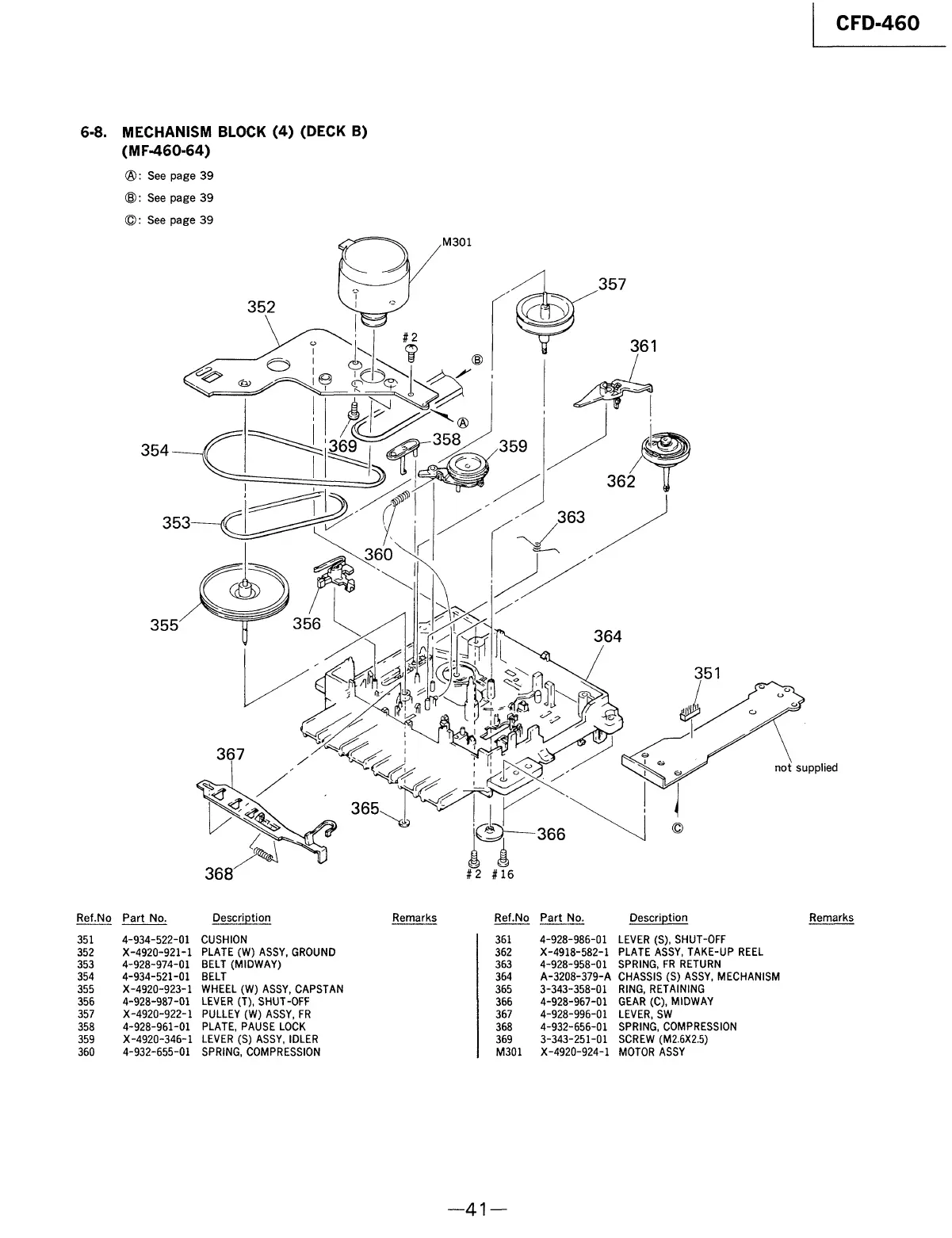

6-8. MECHANISM BLOCK (4) (DECK B)
(MF-460-64)
®: See page 39
®: See page 39
©: See page 39
357
not supplied
Ref.No Part No. Description Remarks Ref.No Part No. Description Remarks
351 4-934-522-01 CUSHION 361 4-928-986-01 LEVER (S), SHUT-OFF
352 X-4920-921-1 PLATE (W) ASSY, GROUND 362 X~-4918-582-1 PLATE ASSY, TAKE-UP REEL
353 4-928~974-01 BELT (MIDWAY) 363 4~928-958-01 SPRING, FR RETURN
354 4-934-521-01 BELT 364 A-3208-379-A CHASSIS (S) ASSY, MECHANISM
355 X-4920-923-1 WHEEL (W) ASSY, CAPSTAN 365 3-343-358-01 RING, RETAINING
356 4-928~987-01 LEVER (T), SHUT-OFF 366 4-928-967-01 GEAR (C), MIDWAY
357 X-4920-922-1 PULLEY (W) ASSY, FR 367 4-928-996-01 LEVER, SW
358 4~928-961-01 PLATE, PAUSE LOCK 368 4-932-656-01 SPRING, COMPRESSION
359 X-4920-346-1 LEVER (S) ASSY, IDLER 369 3-343-251-01 SCREW (M2.6X2.5)
360 4-932-655-01 SPRING, COMPRESSION M301 X-4920-924-1 MOTOR ASSY
