Sony CFD-S05 - Main Board Disassembly; Power Board Disassembly

CFD-S05
7

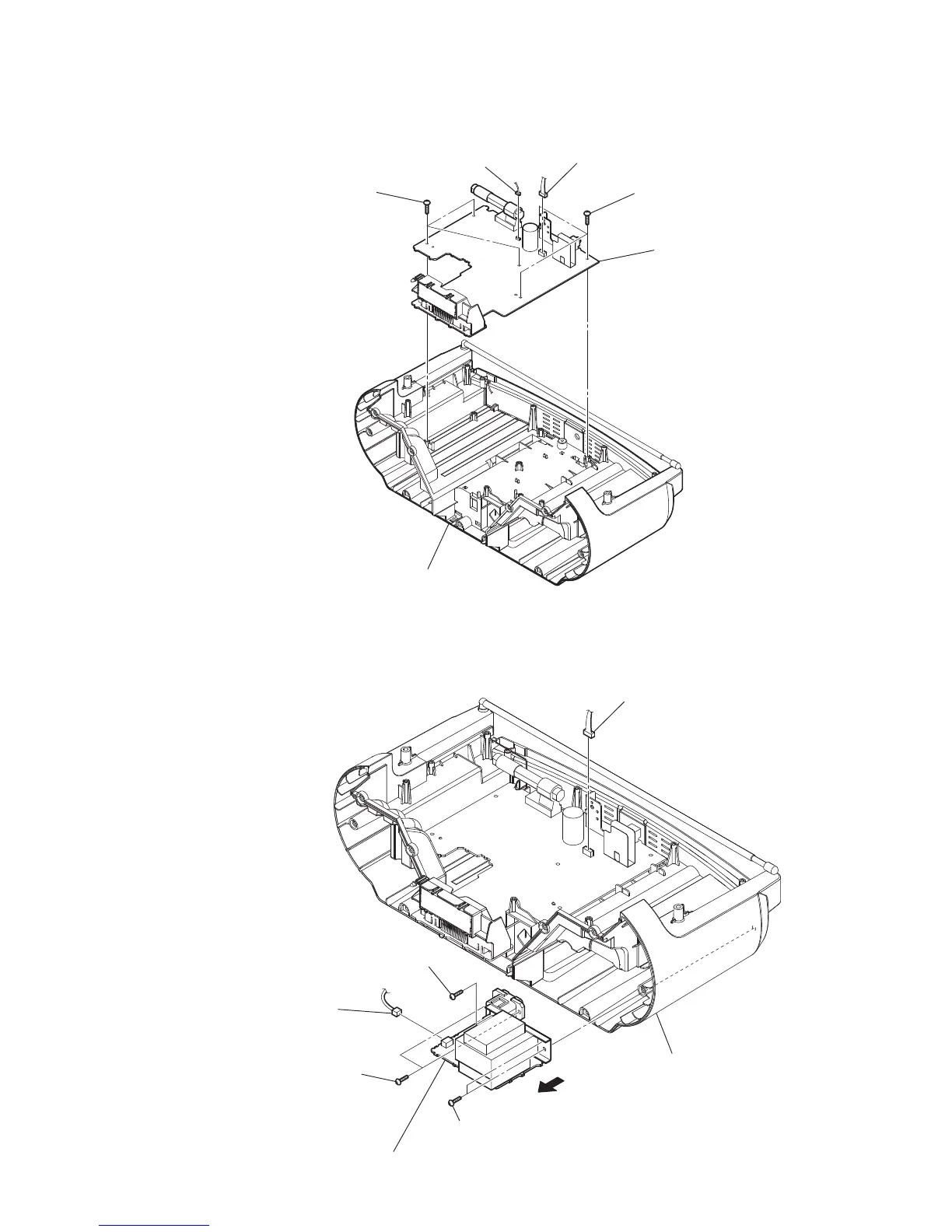

2-3. MAIN BOARD
2-4. POWER BOARD
1 CN901 (3P)
2 CN1 (2P)
3 three screws
(+P tapping (B2.6))
5 MAIN board
cabinet (rear) section
4 three screws
(+P tapping (B2.6))
1 CN901 (3P)
6 CN903 (2P)
7 POWER board
2 two screws
(+BV tapping (B2.6))
cabinet (rear) section
4 two screws
(+BV tapping (B2.6))
5
3 screw
(+BV tapping (B2.6))
