Sony CFD-S33 - Page 39

– 19 –
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

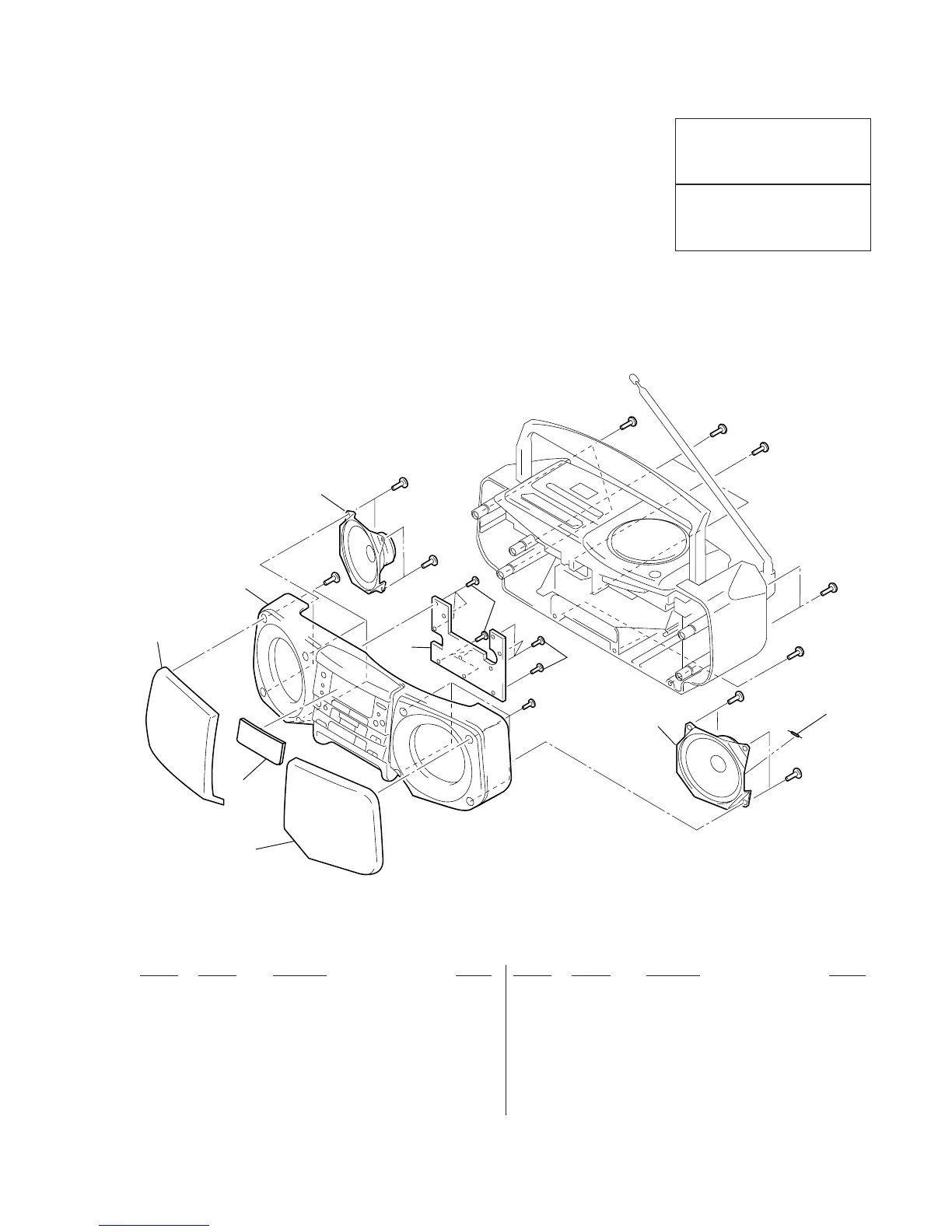

7-1. FRONT CABINET SECTION
• Abbreviation
CND : Canadian
IT : Italian
C&SA : Central and South America
SP : Singapore
Les composants identifiés par une
marque ! sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number specified.
r
CHANGE OF EXPLODED VIEWS
1 X-3373-392-1 NET (R) ASSY
2 X-3373-391-1 NET (L) ASSY
3 X-3373-396-1 CABINET (FRONT) ASSY (BLACK) (US)
3 X-3373-954-1 CABINET (FRONT) ASSY (BLACK)
(CND,E,C&SA)
3 X-3373-970-1 CABINET(FRONT) ASSY (SILVER) (AEP,IT)
3 X-3373-971-1 CABINET(FRONT) ASSY (BLACK) (AEP,IT)
3 X-3373-955-1 CABINET(FRONT) ASSY (BLACK) (SP)
4 4-951-620-01 SCREW (2.6X8), +BVTP
* 5 1-665-045-11 SW BOARD
6 3-009-228-01 WINDOW, INDICATION (EXCEPT SP)
6 3-009-228-11 WINDOW, INDICATION (SP)
C851 1-162-199-31 CERAMIC 10PF 5% 50V
SP901 1-505-531-11 SPEAKER (10cm) (L-CH)
SP902 1-505-531-11 SPEAKER (10cm) (R-CH)
#1
#1
#1
#9
#9
#9
#1
#1
#9
#9
#1
SP901
SP902
1
2
3
4
4
5
6
C851
