Sony CMD-Z1 - Level 1 Troubleshooting Chart

SECTION 3

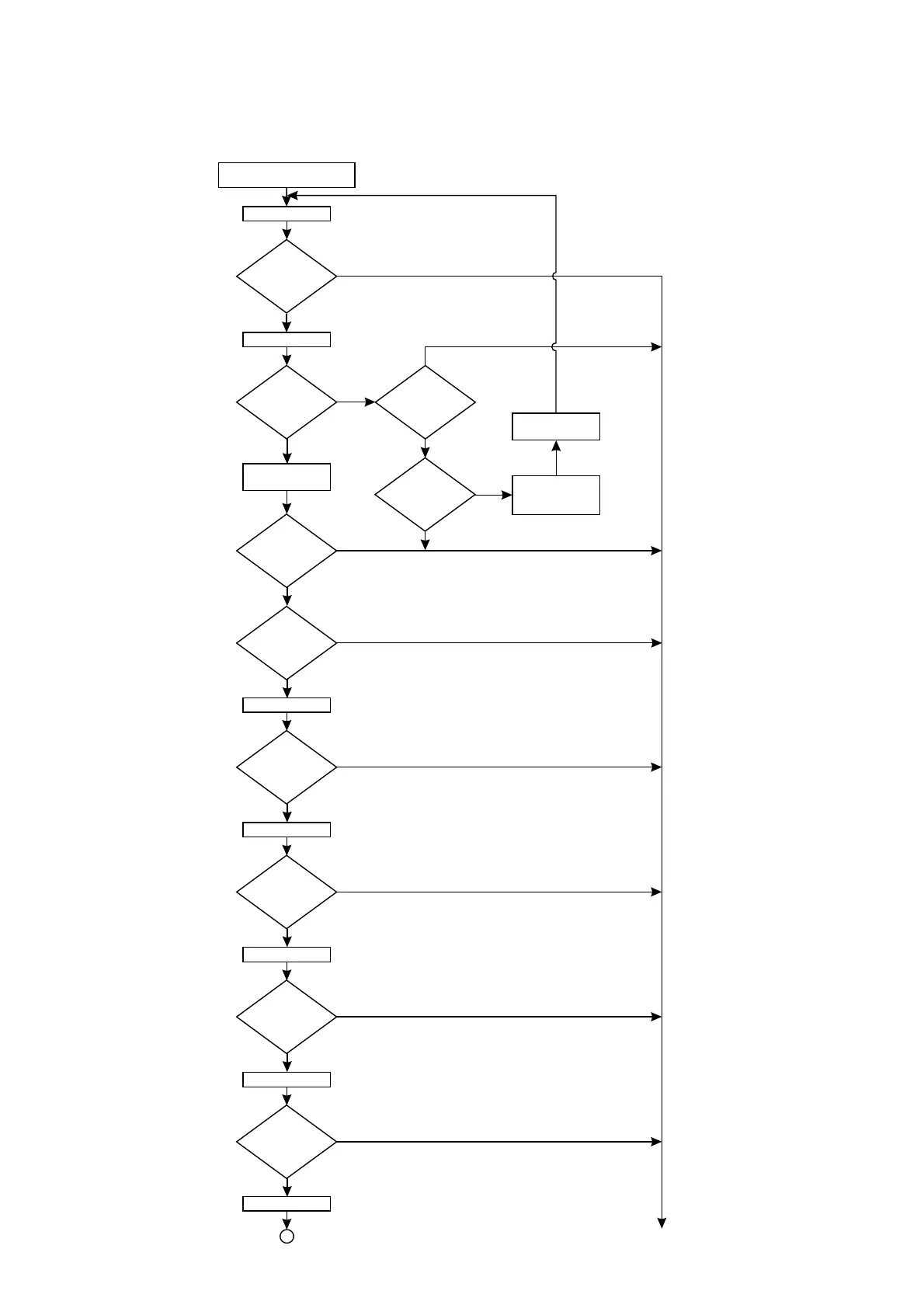

LEVEL 1 TROUBLESHOOTING CHART
Insert simcard, insert new battery
Close microphone, antenna down
Switch on
Input pincode
Push menu key
Click jog
Jog dial up/down
Push "C" twice
Open microphone arm
Push keys
0-9* and #
Power off
Move to place
with better
network coverage
Does it
switch on
correctly?
Does it
find network and
goes to normal
waiting status?
Display
showing correct
key input?
When
pushing keys,
does backlight and
keylight go on for
10 sec?
Is correct
menu screen
displayed,
was sound
o.k.?
Is menu
item selected,
was sound
o.k.?
Does
display scroll
up/down
Did set
go back to
initial waiting
screen
Does set
show sufficient
signal strength?
Is it showing
searching screen?
N
N
N
N
N
N
N
N
N
N
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
