1 Connect the speakers.
Connect the right and left speaker cords to
the SPEAKER terminals as shown below.
2 Connect the FM and AM antennas.
Set up the AM loop antenna, then connect
it.

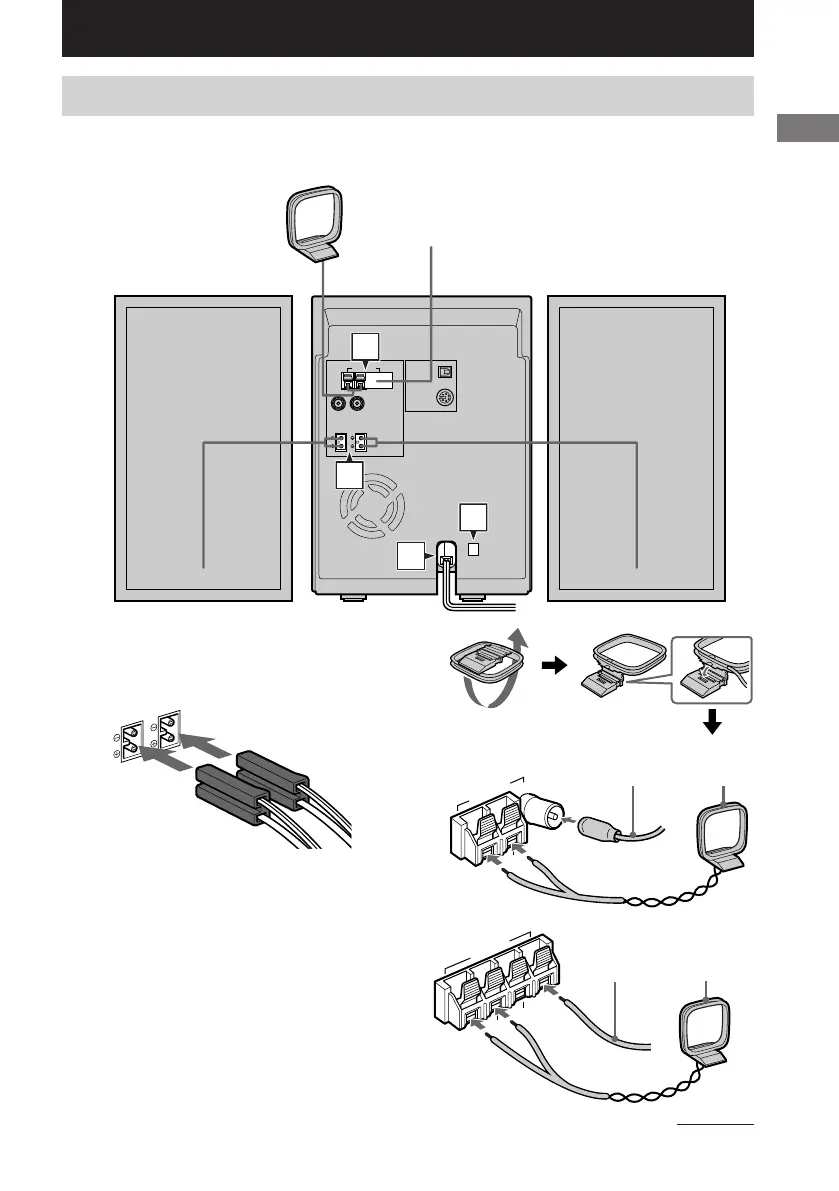

Hooking up the system
Perform the following procedure 1 to 4 to hook up your system using the supplied cords and
accessories.
Right speaker
Left speaker
