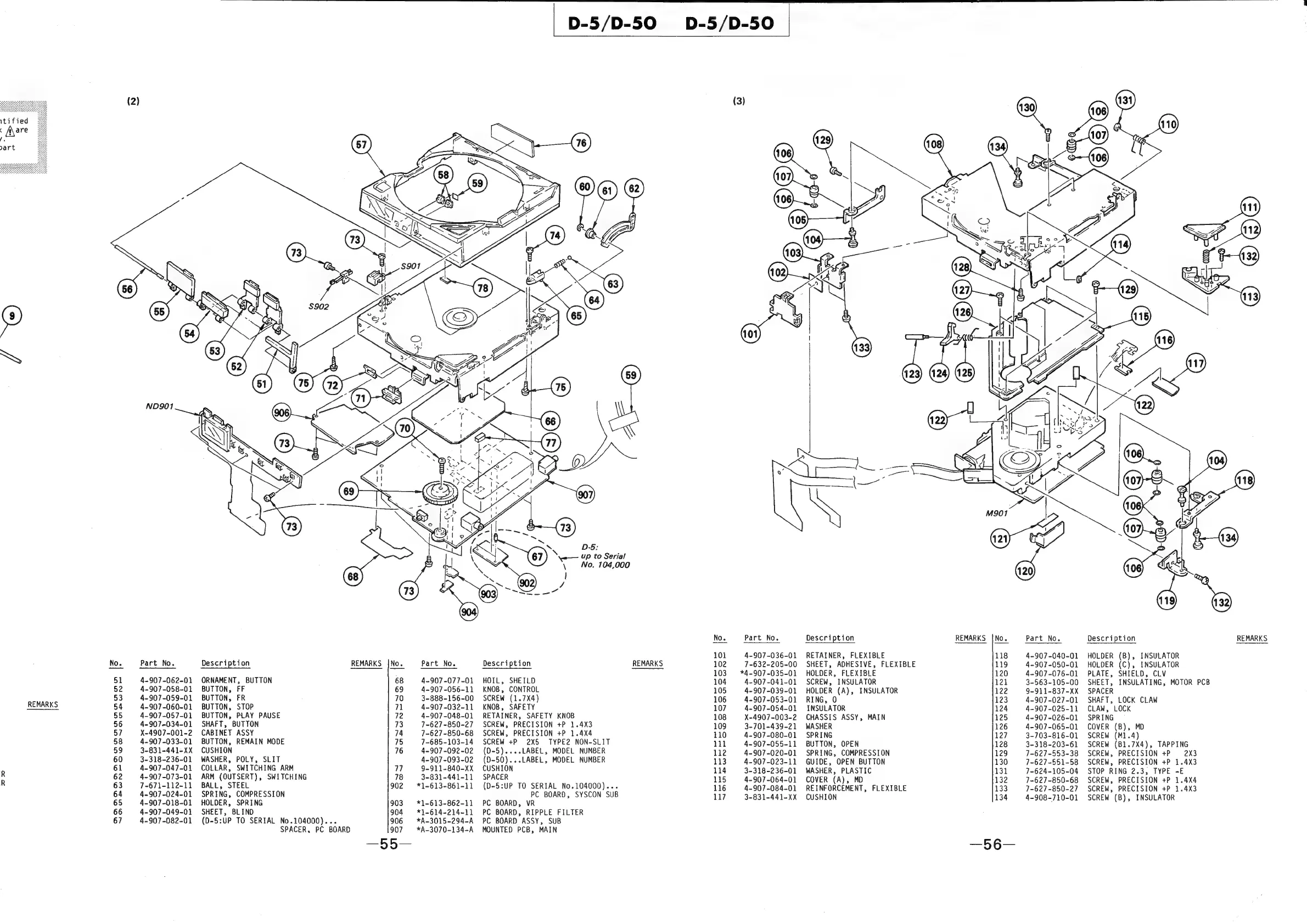

Sony D-5 - Page 40

tified
SS
REMARKS
(2)
Part No.
4-907-062-01
4-907-058-01
4-907-059-01
4-907-060-01
4-907-057-01
4-907-034-01
X-4907-001-2
4-907-033-01
3-831-441-XX
3-318-236-01
4-907-047-01
4-907-073-01
7-671-112-11
4-907-024-01
4-907-018-01
4-907-049-01
4-907-082-01
Description
ORNAMENT, BUTTON
BUTTON, FF
BUTTON, FR
BUTTON, STOP
BUTTON, PLAY PAUSE
SHAFT, BUTTON
CABINET ASSY
BUTTON, REMAIN MODE
CUSHION
WASHER, POLY, SLIT
COLLAR, SWITCHING ARM
ARM (OUTSERT), SWITCHING
BALL, STEEL
SPRING, COMPRESSION
HOLDER, SPRING
SHEET, BLIND
(D-5:UP TO SERIAL No.104000)...
SPACER, PC BOARD
REMARKS |No.
68
69
70
71
72
73
74
75
76
77
78
902
903
904
906
907
—55—
Part No.
4-907-077-01
4-907-056-11
3-888-156-00
4-907-032-11
4-907-048-01
7-627-850-27
7-627-850-68
7-685-103-14
4-907-092-02
4-907-093-02
9-911-840-XX
3-831-441-11
*1-613-861-11
*1-613-862-11
*1-614-214-11
*A-3015-294-A
*A-3070-134-A
D-5:
up to Serial
No. 104,000
REMARKS
Description
HOIL, SHEILD
KNOB, CONTROL
SCREW (1.7X4)
KNOB, SAFETY
RETAINER, SAFETY KNOB
SCREW, PRECISION +P 1.4X3
SCREW, PRECISION +P 1.4X4
SCREW +P 2X5 TYPE2 NON-SLIT
(D-5)....LABEL, MODEL NUMBER
(D-50)...LABEL, MODEL NUMBER
CUSHION
SPACER
(D-5:UP TO SERIAL No.104000)...
PC BOARD, SYSCON SUB
PC BOARD, VR
PC BOARD, RIPPLE FILTER
PC BOARD ASSY, SUB
MOUNTED PCB, MAIN
Now
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
Part No.
4-907-036-01
7-632-205-00
*4-907-035-01
4-907-041-01
4-907-039-01
4-907-053-01
4-907-054-01
X-4907-003-2
3-701-439-21
4-907-080-01
4-907-055-11
4-907-020-01
4-907-023-11
3-318-236-01
4-907-064-01
4-907-084-01
3-831-441-XX
Description
RETAINER, FLEXIBLE
SHEET, ADHESIVE, FLEXIBLE
HOLDER, FLEXIBLE
SCREW, INSULATOR
HOLDER (A), INSULATOR
RING, 0
INSULATOR
CHASSIS ASSY, MAIN
WASHER
SPRING
BUTTON, OPEN
SPRING, COMPRESSION
GUIDE, OPEN BUTTON
WASHER, PLASTIC
COVER (A), MD
REINFORCEMENT, FLEXIBLE
CUSHION
REMARKS |No.
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
—56—
Part No.
4-907-040-01
4-907-050-01
4-907-076-01
3-563-105-00
9-911-837-XX
4-907-027-01
4-907-025-11
4-907-026-01
4-907-065-01
3-703-816-01
3-318-203-61
7-627-553-38
7-627-551-58
7-624-105-04
7-627-850-68
7-627-850-27
4-908-710-01
Description
REMARKS
HOLDER (B), INSULATOR
HOLDER (C), INSULATOR
PLATE, SHIELD, CLV
SHEET, INSULATING, MOTOR PCB
SPACER
SHAFT, LOCK CLAW
CLAW, LOCK
SPRING
COVER (B), MD
SCREW (M1.4)
SCREW (B1.7X4), TAPPING
SCREW, PRECISION +P 2X3
SCREW, PRECISION +P 1.4X3
STOP RING 2.3, TYPE -E
SCREW, PRECISION +P 1.4x4
SCREW, PRECISION +P 1.4X3
SCREW (B), INSULATOR
