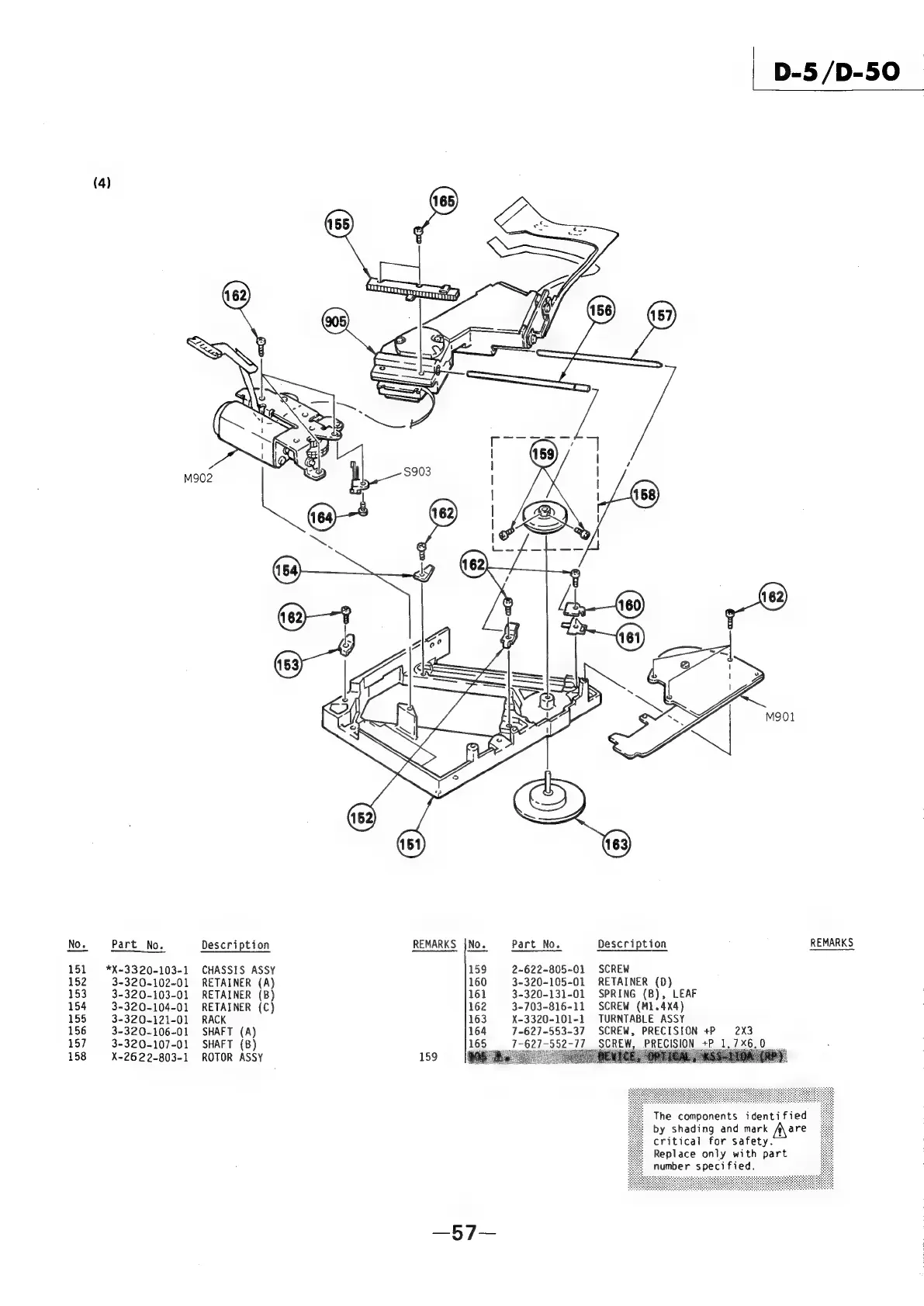

Sony D-5 - Page 41

Now
151
152
153
154
155
156
157
158
(4)
Part No.
*X-3320-103-1
3-320-102-0601
3-320-103-01
3-320-104-01
3-320-121-01
3-320-106-01
3-320-107-01
X-2622-803-1
Description
CHASSIS ASSY
RETAINER (A)
RETAINER (B)
RETAINER (C}
RACK
SHAFT (A)
SHAFT (B)
ROTOR ASSY
D-5 /D-50
REMARKS jNo. Part No. Description REMARKS
159 2-622-805-01 SCREW
160 3-320-105-01 RETAINER (D)
161 3-320-131-01 SPRING (B), LEAF
162 3-703-816-11 SCREW (M1.4xX4)
163 X-3320-101-1 TURNTABLE ASSY
164 7-627-553-37 SCREW, PRECISION +P 2X3
165 = 7-627-552-77 SCREW, PRECISION +P 1.7%6, 0
159 965 |
The components identified
by shading and mark A\are
critical for safety.
Replace only with part
b ified
