Sony D-555 - Exploded View - Chassis Section (1)

D-555/Z555 |

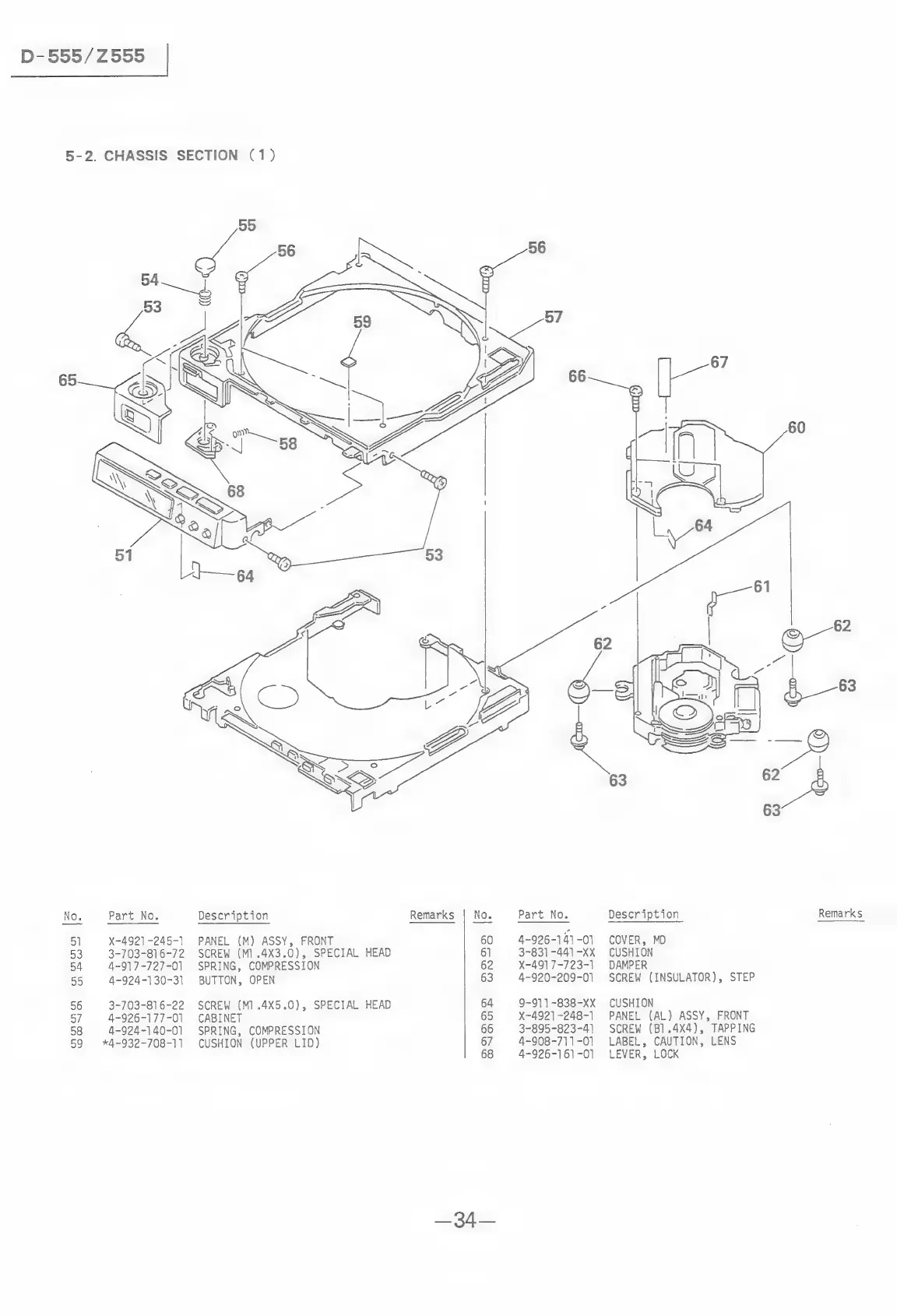

5-2. CHASSIS SECTION (1)
Part No.
X-4921-245-1
3-703-816-72
4-917-727-01
4-924-] 30-31
3-703-816-22
4-926-177-01
4-924-] 40-0]
*4-932-708-11
Description
PANEL (M) ASSY, FRONT
SCREW (MI .4X3.0), SPECIAL HEAD
SPRING, COMPRESSION
BUTTON, OPEN
SCREW (M1 .4X5.0), SPECIAL HEAD
CABINET
SPRING, COMPRESSION
CUSHION (UPPER LID)
=) oe
Remarks
Part No.
4-926-141 -01
3-831 -44] -XX
X-4917-723-1
4-920-209-01
9-911 -838-XX
X-4921 -248-1
3-895-823-4]
4-908-711-01
4-926-161-01
Description
Remarks
COVER, MD
CUSHION
DAMPER
SCREW (INSULATOR), STEP
CUSHION
PANEL (AL) ASSY, FRONT
SCREW (B1.4X4), TAPPING
LABEL, CAUTION, LENS
LEVER, LOCK
