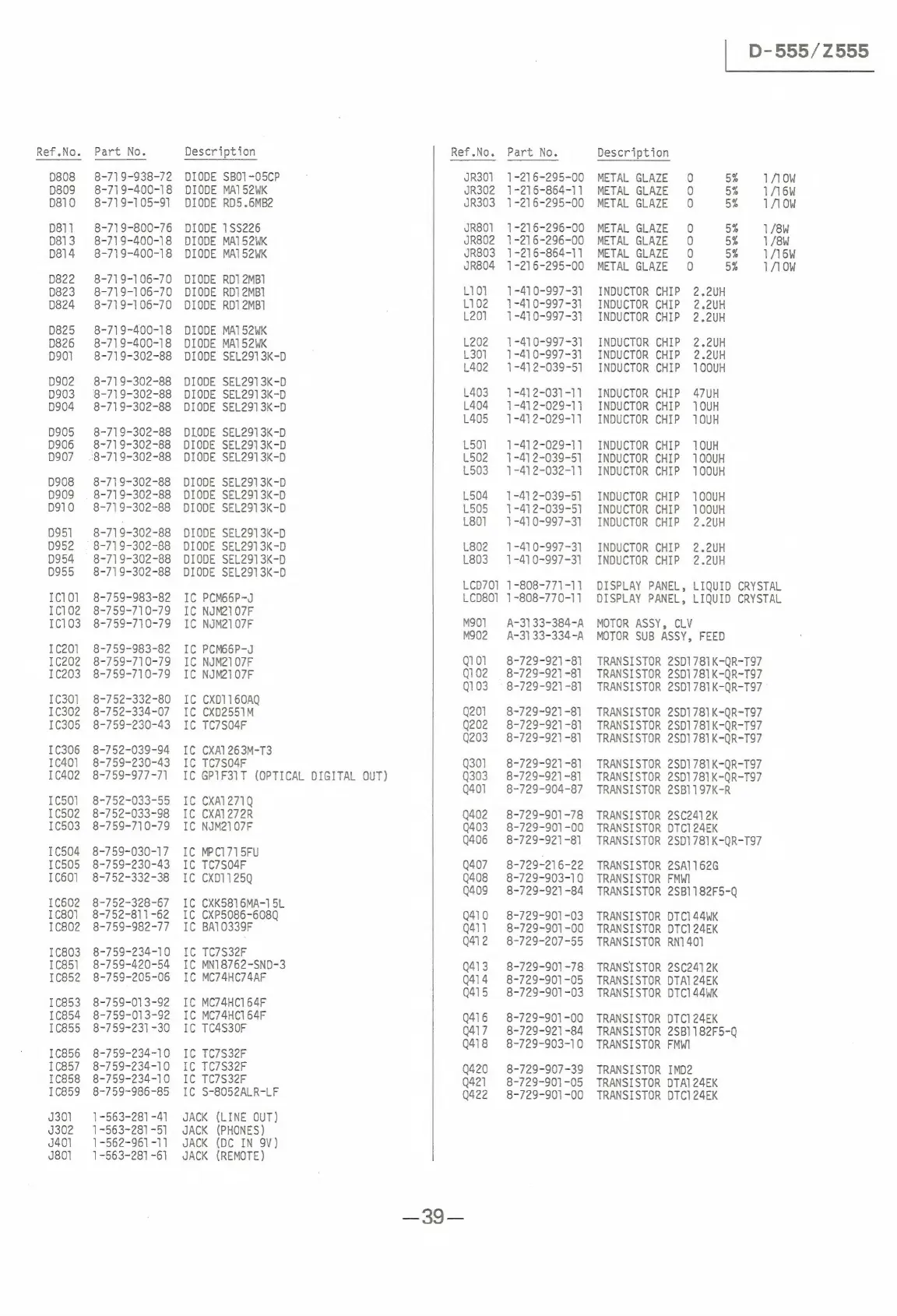

Sony D-555 - Page 31

| D-555/Z555
Ref.No. Part No. Description Ref.No. Part No. Description
D808 8-719-938-72 DIODE SB01-05cP JR301 1-216-295-00 METAL GLAZE 0 5% 1/10W
D809 + 8-719-400-18 DIODE MA152WK JR302 1-216-864-11 METAL GLAZE 0 5% 1/16W
D810 8-719-105-91 DIODE RD5.6MB2 JR303 1-216-295-00 METAL GLAZE 0 5% 1/10W
D811 8-719-800-76 DIODE 1SS226 JR801 1-216-296-00 METAL GLAZE 0 5% 1/8W
D813. 8-719-400-18 DIODE MAI52WK JR802 1-216-296-00 METAL GLAZE 0 5% 1/8W
D814 8-719-400-18 DIODE MAI52WK JR803 1-216-864-11 METAL GLAZE 0 5% 1/16W
JR804 1-216-295-00 METAL GLAZE 0 5% 1/10W
D822 8-719-106-70 DIODE RD12MBI
D823. +8-719-106-70 DIODE RDI2MB1 L101 1-410-997-31 INDUCTOR CHIP 2.2UH
D824 8-719-106-70 DIODE RD12MB1 L102. = =1-410-997-31 INDUCTOR CHIP 2.2UH
L201 1-410-997-31 INDUCTOR CHIP 2.2UH
D825 8-719-400-18 DIODE MAI52WK
D826 8-719-400-18 DIODE MA152WK L202 1-410-997-31 INDUCTOR CHIP 2.2UH
D901 8-719-302-88 DIODE SEL2913K-D L301 1-410-997-3] INDUCTOR CHIP 2.2UH
L402 1-412-039-51 INDUCTOR CHIP 100UH
D902 ~=8-719-302-88 DIODE SEL2913K-D
D903. -- 8-719-302-88 DIODE SEL2913K-D L403. 1-412-031-11 INDUCTOR CHIP 47UH
D904 8-719-302-88 DIODE SEL2913K-D L404 1-412-029-11 INDUCTOR CHIP 10UH
L405 1-412-029-11 INDUCTOR CHIP 1OUH
D905 8-719-302-88 DIODE SEL2913K-D
D906 §=©8-719-302-88 DIODE SEL2913K-D L501 1-412-029-11 INDUCTOR CHIP 10UH
D907. —- 8-719-302-88 DIODE SEL2913K-D L502 1-412-039-51 INDUCTOR CHIP 100UH
L503. 1-412-032-11 INDUCTOR CHIP 100UH
D908 8-719-302-88 DIODE SEL2913K-D
D909 = 8-719-302-88 DIODE SEL2913K-D L504 1-412-039-51 INDUCTOR CHIP 100UH
D910 8-719-302-88 DIODE SEL2913K-D L505 1-412-039-51 INDUCTOR CHIP 100UH
L801 1-410-997-31 INDUCTOR CHIP 2.2UH
D951 8-719-302-88 DIODE SEL2913K-D
D952 = 8-719-302-88 DIODE SEL2913K-D L802 1-410-997-31 INDUCTOR CHIP 2.2UH
D954 8-719-302-88 DIODE SEL2913K-D L803. 1-410-997-31 INDUCTOR CHIP 2.2UH
D955 8-719-302-88 DIODE SEL2913K-D
LCD701 1-808-771-11 DISPLAY PANEL, LIQUID CRYSTAL
IC101 8-759-983-82 IC PCM66P-J LCD801 1-808-770-11 DISPLAY PANEL, LIQUID CRYSTAL
IC102 8-759-710-79 IC NJM2107F
IC103. 8-759-710-79 IC NUM2107F M901 A-3133-384-A MOTOR ASSY, CLV
M902 A-3133-334-A MOTOR SUB ASSY, FEED
1C201 8-759-983-82 IC PCM66P-J
C202 8-759-710-79 IC NJM2107F Q101 8-729-921-81 TRANSISTOR 2SD1781K-QR-T97
1€203 8-759-710-79 IC NJM2107F Q102 8-729-921-81 TRANSISTOR 2SD1781K-QR-T97
Q103. = 8-729-921-81 TRANSISTOR 2SD1781K-QR-T97
1C301 8-752-332-80 IC CXD1160AQ
1C€302 8-752-334-07 IC CXD2551M Q201 8-729-921-81 TRANSISTOR 2SD1781K-QR-T97
1C305 8-759-230-43 IC TC7SO4F Q202 8-729-921-81 TRANSISTOR 2SD1781K-QR-T97
Q203 8-729-921-81 TRANSISTOR 2SD1781K-QR-T97
1C306 8-752-039-94 IC CXA1263M-T3
1C401 8-759-230-43 IC TC7SO4F Q301 8-729-921-81 TRANSISTOR 2SD1781K-QR-T97
1C402 8-759-977-71 IC GPIF31T (OPTICAL DIGITAL OUT) Q303 8-729-921-81 TRANSISTOR 2SD1781K-QR-T97
Q401 8-729-904-87 TRANSISTOR 2SB1197K-R
C501 8-752-033-55 IC CXA1271Q
1€502 8-752-033-98 IC CXA1272R Q402 8-729-901-78 TRANSISTOR 2SC2412K
1C503 8-759-710-79 IC NJM2107F Q403. 8-729-901-00 TRANSISTOR DTC124EK
Q406 8-729-921-81 TRANSISTOR 2SD1781K-QR-T97
10504 8-759-030-17 IC MPC1715FU
1C505 8-759-230-43 IC TC7SO4F Q407 8-729-216-22 TRANSISTOR 2SA1162G
1C601 8-752-332-38 IC CXD1125Q Q408 8-729-903-10 TRANSISTOR FMW
Q409 8-729-921-84 TRANSISTOR 2SB1182F5-Q
1C602 8-752-328-67 IC CXK5816MA-15L
1C801 8-752-811-62 IC CXP5086-608Q Q410 8-729-901-03 TRANSISTOR DTC144WK
1C802 8-759-982-77 IC BAI0339F Q411 8-729-901-00 TRANSISTOR DTC124EK
Q412 8-729-207-55 TRANSISTOR RN1401
1C803 8-759-234-10 IC TC7S32F
1C851 8-759-420-54 IC MN18762-SND-3 Q413 8-729-901-78 TRANSISTOR 2SC241 2K
10852 8-759-205-06 IC MC74HC74AF Q414 8-729-901-05 TRANSISTOR DTA124EK
Q415 8-729-901-03 TRANSISTOR DTC144WK
10853 8-759-013-92 IC MC74HC164F
1€854 8-759-013-92 IC MC74HC164F Q416 8-729-901-00 TRANSISTOR DTC124EK
1855 8-759-231-30 IC TC4S30F 0417 8-729-921-84 TRANSISTOR 2SB1182F5-Q
Q418 8-729-903-10 TRANSISTOR FMWI
I1C856 8-759-234-10 IC TC7S32F
10857 8-759-234-10 IC TC7S32F Q420 8-729-907-39 TRANSISTOR IMD2
1C858 8-759-234-10 IC TC7S32F Q421 8-729-901-05 TRANSISTOR DTAI24EK
1C859 8-759-986-85 IC S-8052ALR-LF Q422 8-729-901-00 TRANSISTOR DTC124EK
J301 1-563-281-41 JACK (LINE OUT)
J302 1-563-281-51. JACK (PHONES)
J401 1-562-961-11 JACK (DC IN 9V)
J801 1-563-281-61 JACK (REMOTE)
