15
D-E340/E341
SECTION 6
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.

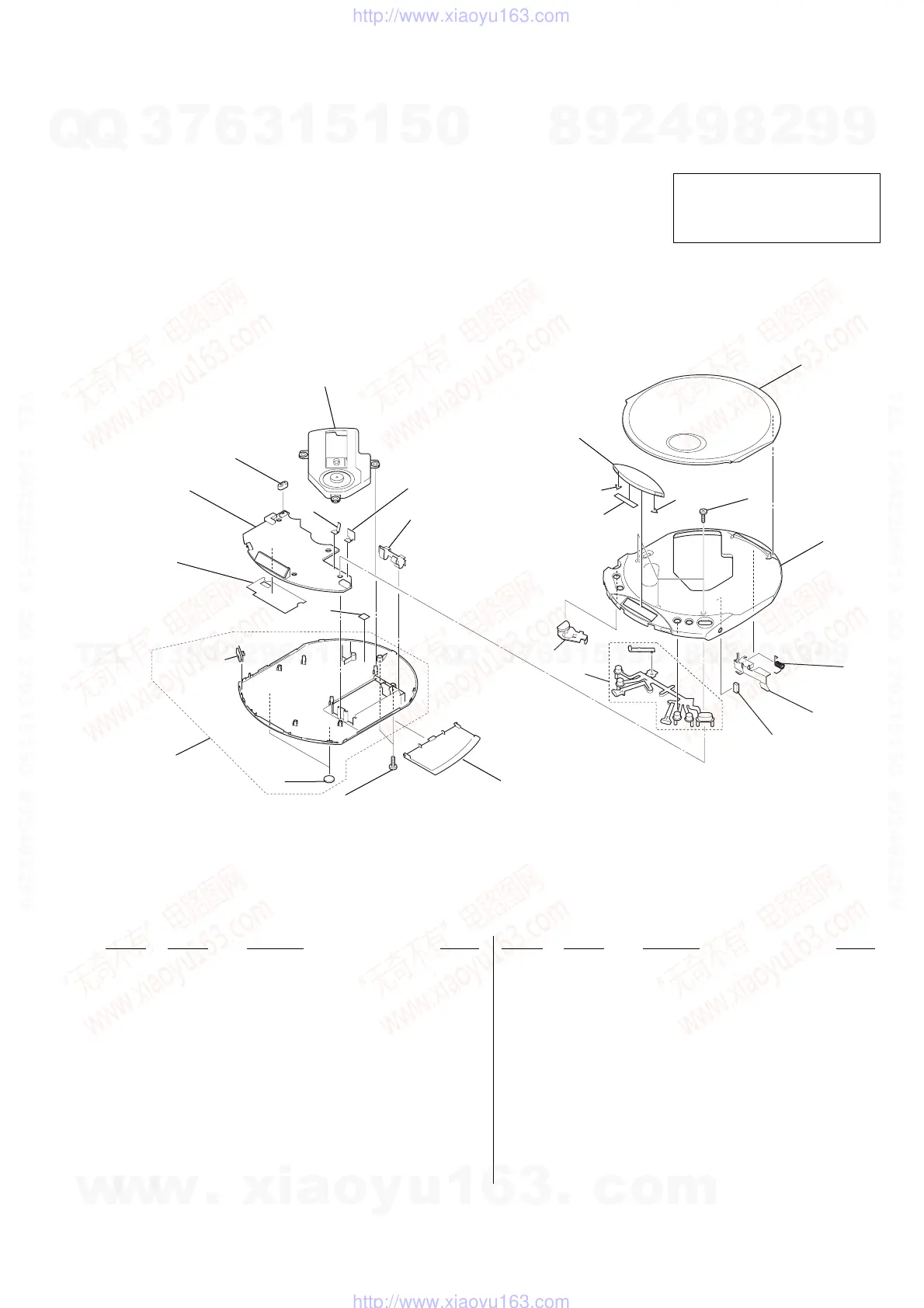

6-1. CABINET SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by mark 0
or dotted line with mark 0 are critical
for safety.
Replace only with part number specified.
5
6
7
9
8
14
15
1
CDM-3125ER
not supplied
not supplied
3
1
20
18
12
2
19
17
16
13
21
22
21
11
1 3-336-395-31 SCREW (B2X10) (G), TAPPING
2 4-974-607-21 FOOT, RUBBER
3 X-3379-859-4 CABINET (REAR) ASSY
* 5 A-3347-654-A MAIN PC BOARD ASSY (E340:AEP,E341)
* 5 A-3347-990-A MAIN PC BOARD ASSY (E340:E)
6 3-232-612-11 KNOB (JOGGABLE)
7 3-231-411-01 TERMINAL (-), BATTERY
8 3-222-860-01 TERMINAL (+,-), BATTERY
9 3-234-414-11 TERMINAL (RELAY), BATTERY
11 3-047-194-01 SHEET (CDM), ADHESIVE
12 3-231-620-01 BUTTON (OPEN)
13 3-222-853-21 WINDOW (LCD)
14 X-3382-916-1 LID ASSY, UPPER (E340)
14 X-3382-925-1 LID ASSY, UPPER (E341)
15 3-231-621-61 CABINET (FRONT)
16 3-222-862-01 SPRING (TORSION)
17 3-231-469-01 PLATE, SUPPORT
18 3-222-854-31 BUTTON (OPERATE)
19 4-218-592-21 CUSHION
20 3-222-856-12 LID, BATTERY CASE
21 3-226-948-01 SHEET(2)(LCD WINDOW), ADHESIVE
22 3-222-863-12 SHEET(1)(LCD WINDOW), ADHESIVE
