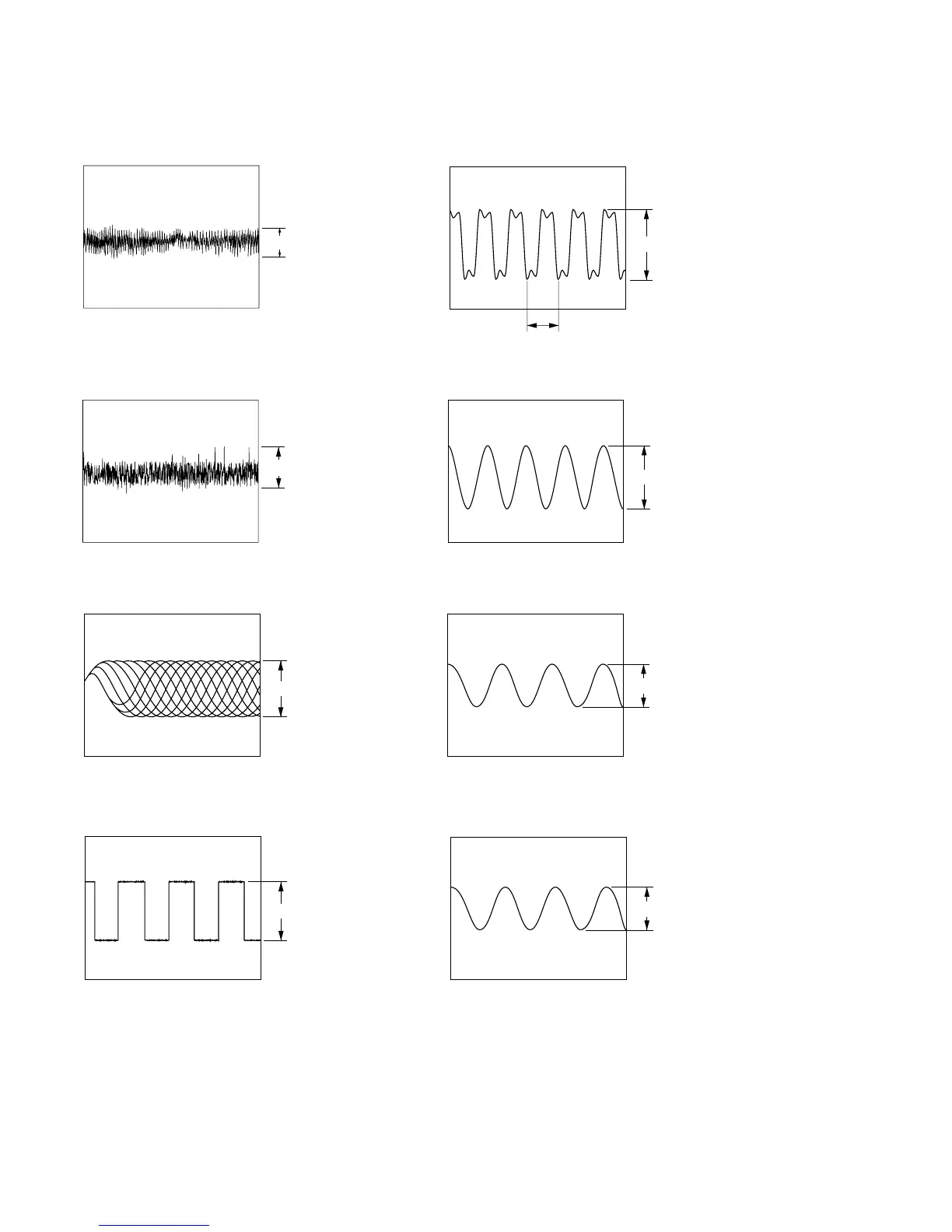

• Waveforms
1 IC501 0 (TEO) (PLAY MODE)
500 mV/DIV, 1 ms/DIV
2 IC501 !£ (FEO) (PLAY MODE)
500 mV/DIV, 10 ms/DIV
3 IC501 @£ (RFO) (PLAY MODE)
500 mV/DIV, 1 µs/DIV
4 IC502 ^• (LRCK) (PLAY MODE)
1 V/DIV, 10 µs/DIV
Approx. 920 mVp-p
Approx. 640 mVp-p
1.0 ± 0.2 Vp-p
2.8 Vp-p
44.1 kHz
2.8 Vp-p
480 ns
1.6 Vp-p
17MHz
2.3 Vp-p
16.9 MHz
2.3 Vp-p
4.19 MHz
