– 19 –

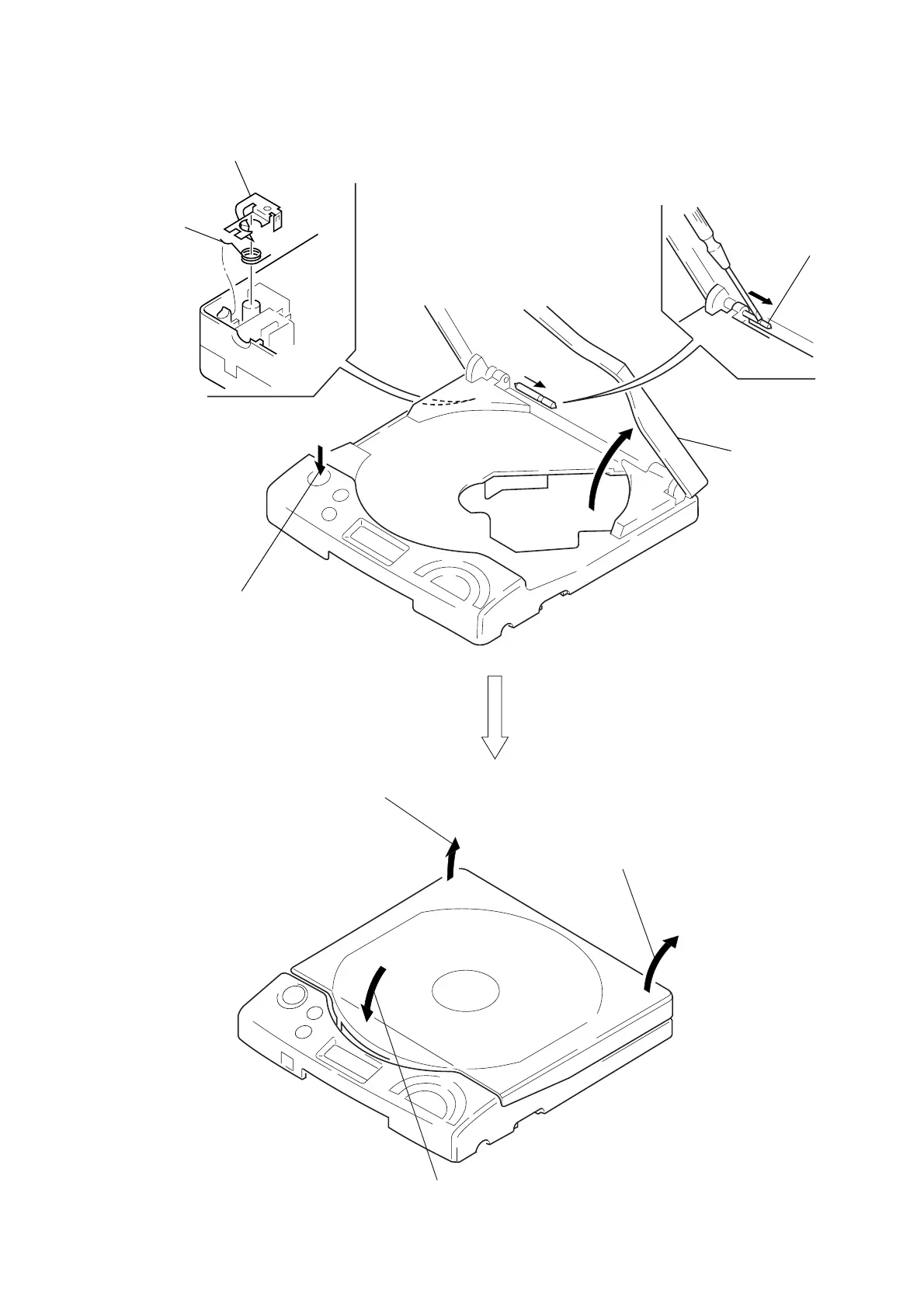

3-2. UPPER LID BLOCK ASS’Y
1 spring (lock)
2 spring
(open)
3 Push the open button.
4 Open the upper li
d
block ass’y.
5 shaft
7 Pull up the upper lid block
ass’y to direction of arrow
B .
8 Remove the upper lid block ass’
y
to direction of arrow C .
6 Close the upper lid block ass’y
to direction of arrow
A .
B
C
A
