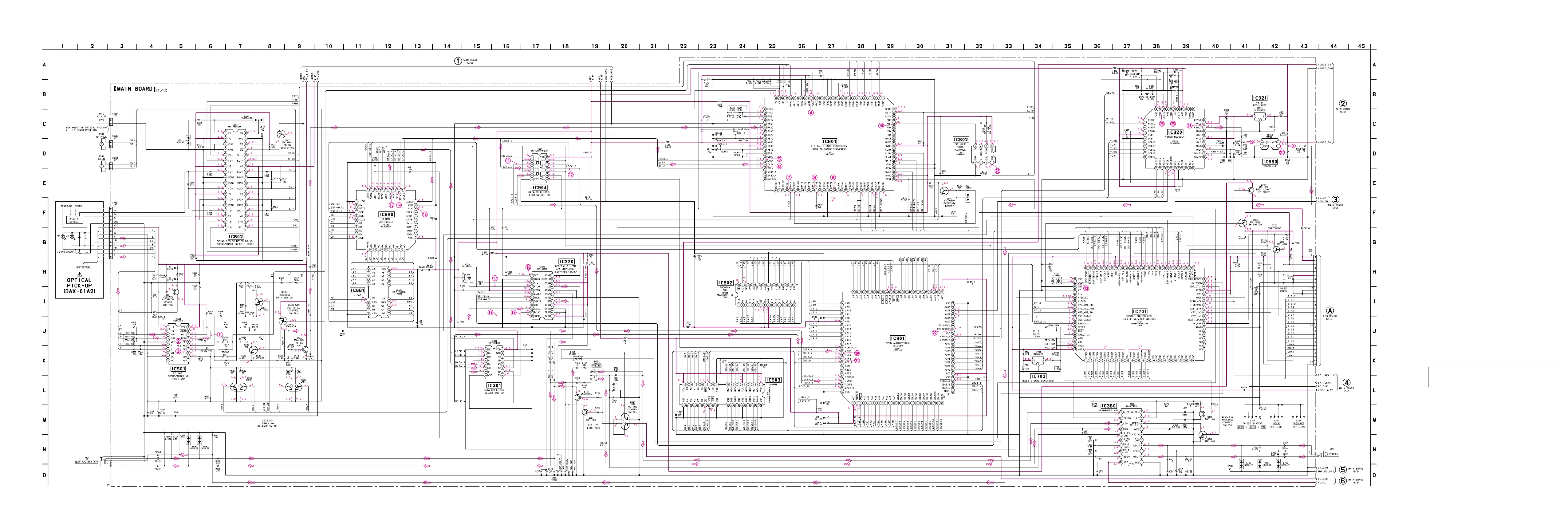

2-3. SCHEMATIC DIAGRAM – MAIN BOARD (1/2) –
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
• % : indicates tolerance.
•
¢
: internal component.
• C : panel designation.
• A : B+ Line.
• Power voltage is dc 6 V and fed with regulated dc power
supply from external power voltage jack.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : VIDEO CD PLAY
( ) : CD PLAY
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
L : VIDEO
J : CD
Note: The components identified by mark ! or dotted line
with mark ! are critical for safety.
Replace only with part number specified.
(Page 14)
(Page 14)
(Page 14)
(Page 17)
(Page 14)
(Page 14)
(Page 14)
To Next Page
