2-2
DCR-DVD510E/DVD910/DVD910E/
HDR-UX9E/UX10/UX10E/UX19E/UX20/UX20E_L2
2-2-1. OVERALL SECTION
⋅ Cabinet (L (Upper))
⋅ Cabinet (R)
2-2-3. SHOE COVER SECTION
⋅ Cabinet (Top)
2-2-2. CABINET (R) SECTION
⋅ LCD Block
⋅ Hinge Block
2-2-4. MIDWAY FRAME SECTION
⋅ Front Panel
⋅ Midway Frame Block
2-2-5. SHOE FRAME SECTION
⋅ Shoe Frame Block
⋅ BT/EVF Block
2-2-6. CM HEAT SINK SECTION
⋅ Cabinet (L)
⋅ CM Heat Sink
2-2-7. MAIN BOARD SECTION
⋅ VC-521 Board
⋅ LD-233 Board
2-2-8. LENS/MD Section
⋅ Lens Block
⋅ MD Block
⋅ Flash Block

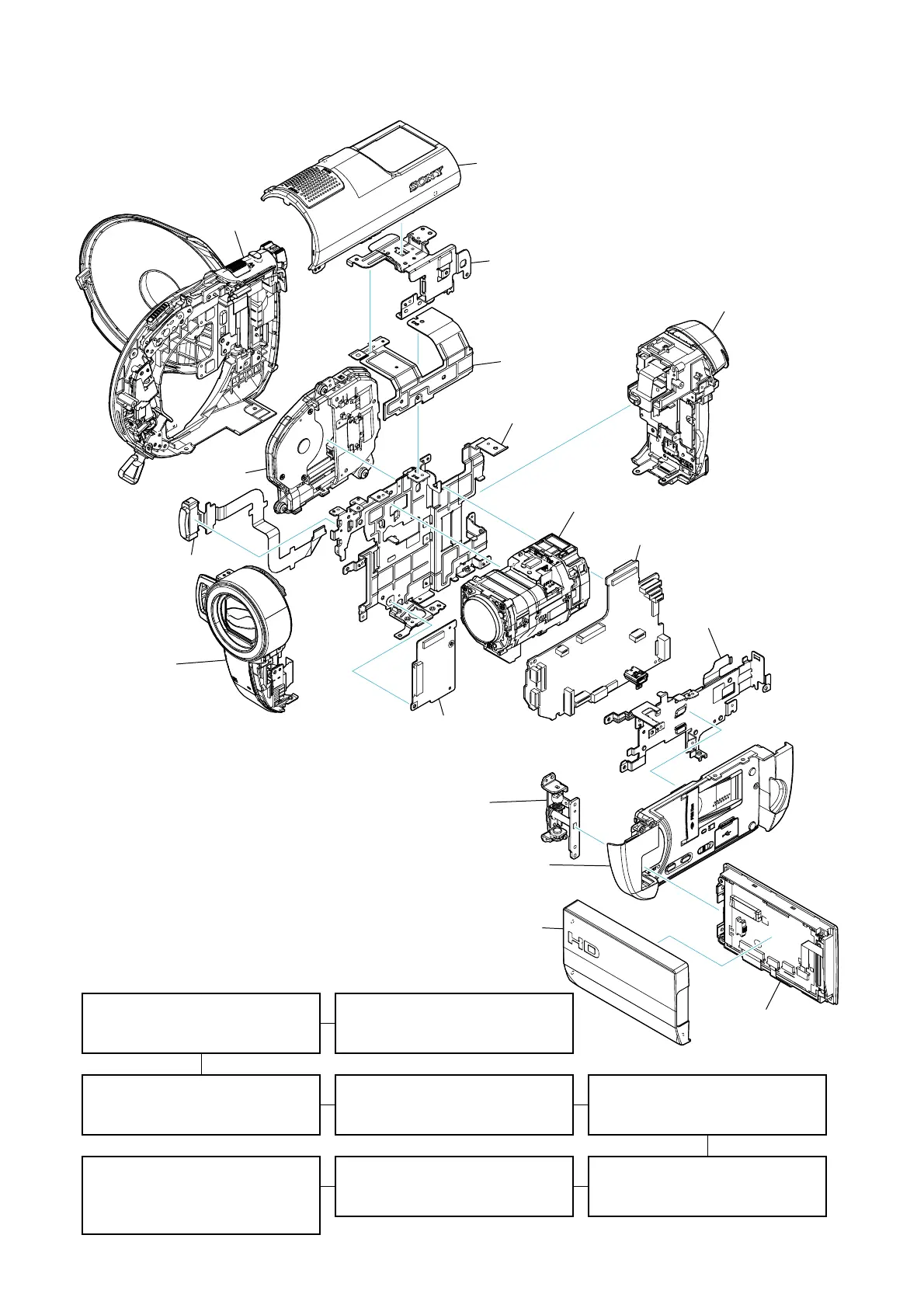

- DISASSEMBLY FLOW -
LCD Block
⋅ FP-386 Flexible Board
⋅ PD-353 Board
Flash Unit
P Cabinet
Cabinet (R)
⋅ CK-193 Board
⋅ OC-013 Board
Hinge Block
⋅ FP-833 Flexible Board
Lens Block
⋅ CMOS Block (CM-093 Board)
LD-233 Board
⋅ FP-837 Flexible Board
VC-521 Board
BT/EVF Block
⋅ BL-023 Board
⋅ JK-363 Board
⋅ FP-836 Flexible Board
Shoe Frame
⋅ FP-835 Flexible Board
⋅ SW-523 Board
Front Panel
⋅ FP-832 Flexible Board
⋅ FR-283 Board
Midway Frame
⋅ FP-834 Flexible Board
⋅ MS-393 Board
⋅ ST-183 Board
MD Block
Cabinet (L)
Cabinet (Top)
CM Heat Sink
Main Frame
2-1. IDENTIFYING PARTS
