5-1
SECTION 5
REPAIR PARTS LIST
5-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Canadian model is abbreviated as CND.
• Tourist model is abbreviated as JE.

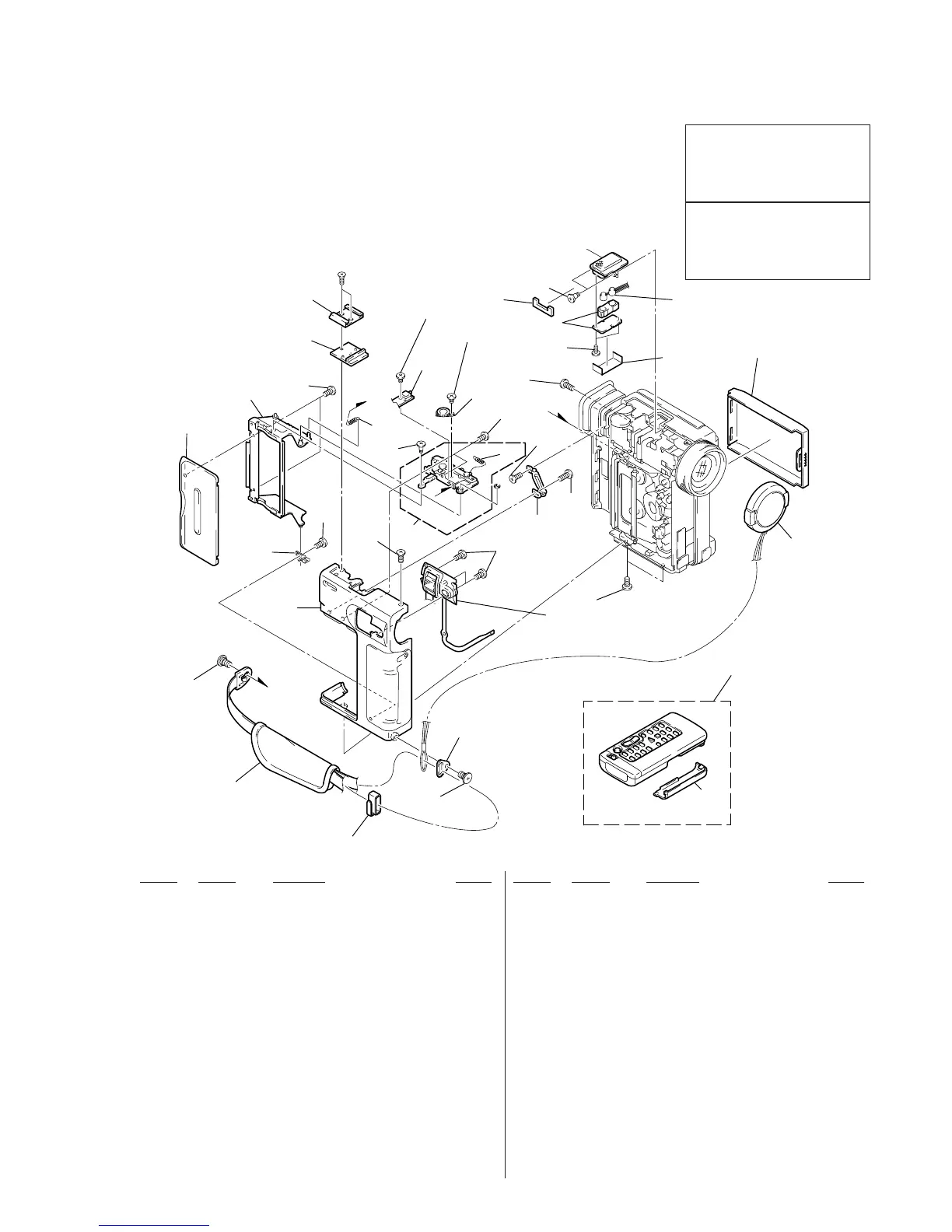

5-1-1. CABINET (L) ASSEMBLY
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
18 3-724-511-31 SHOE, ACCESSORY
19 X-3946-586-1 CAP ASSY, LENS
20 3-973-595-01 COVER, BATTERY TERMINAL
21 X-3946-882-1 CASE (2) ASSY, MICROPHONE
22 3-352-483-01 SCREW (M2), STEP
23 8-917-569-90 REMOTE COMMANDER RMT-806 SET
(PC7/PC7E:E)
23 8-917-570-90 REMOTE COMMANDER RMT-807 SET
(PC7E:AEP. UK)
24 3-742-854-21 LID, BATTERY CASE (for RMT-806/807)
25 3-318-382-21 SCREW (1.7X3), TAPPING
26 3-974-039-01 CUSHION (M),ACOUSTIC ABSORBENT
27 3-973-947-01 CUSHION, MICROPHONE
28 3-974-404-01 HOLDER, CAP
29 3-366-891-11 SCREW (M1.4)
MIC1 1-542-300-11 MICROPHONE UNIT (STEREO)
1 3-972-348-01 BELT, GRIP
2 3-973-658-01 SCREW (M2.6), HEAD (STEP)
* 3 3-972-345-01 SHEET METAL (L), STRAP
4 X-3946-814-1 CABINET (L) ASSY
5 1-473-831-11 SWITCH BLOCK, CONTROL (FZ4800)
6 3-973-497-41 SCREW (M1.7), +P 2
7 3-972-395-01 BRACKET (CASSETTE SHAFT)
8 X-3946-552-1 LID ASSY, CASSETTE
9 X-3946-553-1 BRACKET (CASSETTE LID) ASSY
10 X-3946-550-1 BRACKET (CS) ASSY
11 3-973-891-01 SPRING, TENSION
12 3-311-772-11 SHAFT (A), STOPPER
13 3-965-303-01 DAMPER
14 3-728-103-31 SCREW (M1.4X1.6)
15 3-972-330-01 SPRING, TENSION
16 X-3946-561-1 ARM ASSY, VK
17 3-972-401-01 PLATE, ACCESSORY
18
17
6
9
8
7
6
6
6
6
6
6
6
6
16
10
11
12
15
14
29
13
4
2
28
2
3
1
23
24
19
20
27
25
22
21
26
not supplied
MIC 1
5 (Including r A)
r A
#2
#1
A
A
B
B
DCR-PC7/PC7E
