2-1
SECTION 2
DISASSEMBLY

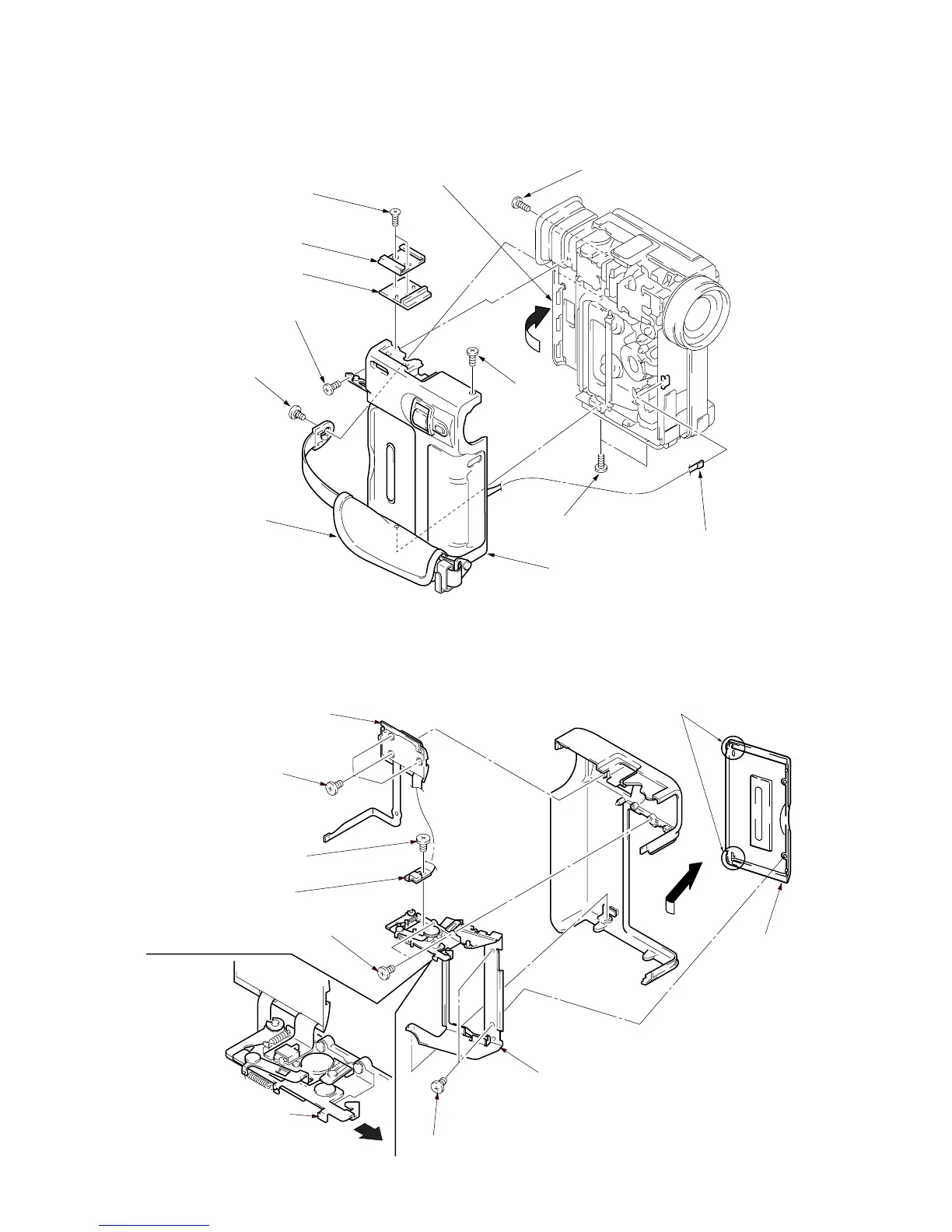

2-1. REMOVAL OF CABINET (L) ASSEMBLY
DCR-PC7/PC7P
1 Special head screw (M2.6)
7 Screw (M1.7 x 2.5)
9 Screw (M1.7 x 2.5)
!º Two screws (M1.7 x 2.5)
!¡ Cabinet (L) assembly
2 Grip belt
3 Two screws (K2 x 4)
6 Open the grip cover.
4 Accessory shoe
5 Accessory plate
!™ FZ4800 control switch block
CN6103,5P
MR-36 board
8 Screw
(M1.7 x 2.5)
2-2. REMOVAL OF FZ4800 CONTROL SWITCH BLOCK
2 Two screws (M1.7 x 2.5)
4 Two screws (M1.7 x 2.5)
6 Three screws (M1.7 x 2.5)
8 Screw (M1.4 x 1.6)
9 CC DOWN SW (FZ4800)
3 Remove the two claws, and
remove the cassette lid.
7 FZ4800 control switch block
Note : Be careful not to damege the flexible board.
5 Cassette lid bracket assembly and CS bracket assembly.
Note : Be careful not to damage the flexible board
of the CC DOWN SW.
Two claws.
1 Slide the CS lock plate in
the arrow direction, and
open the cassette lid.
