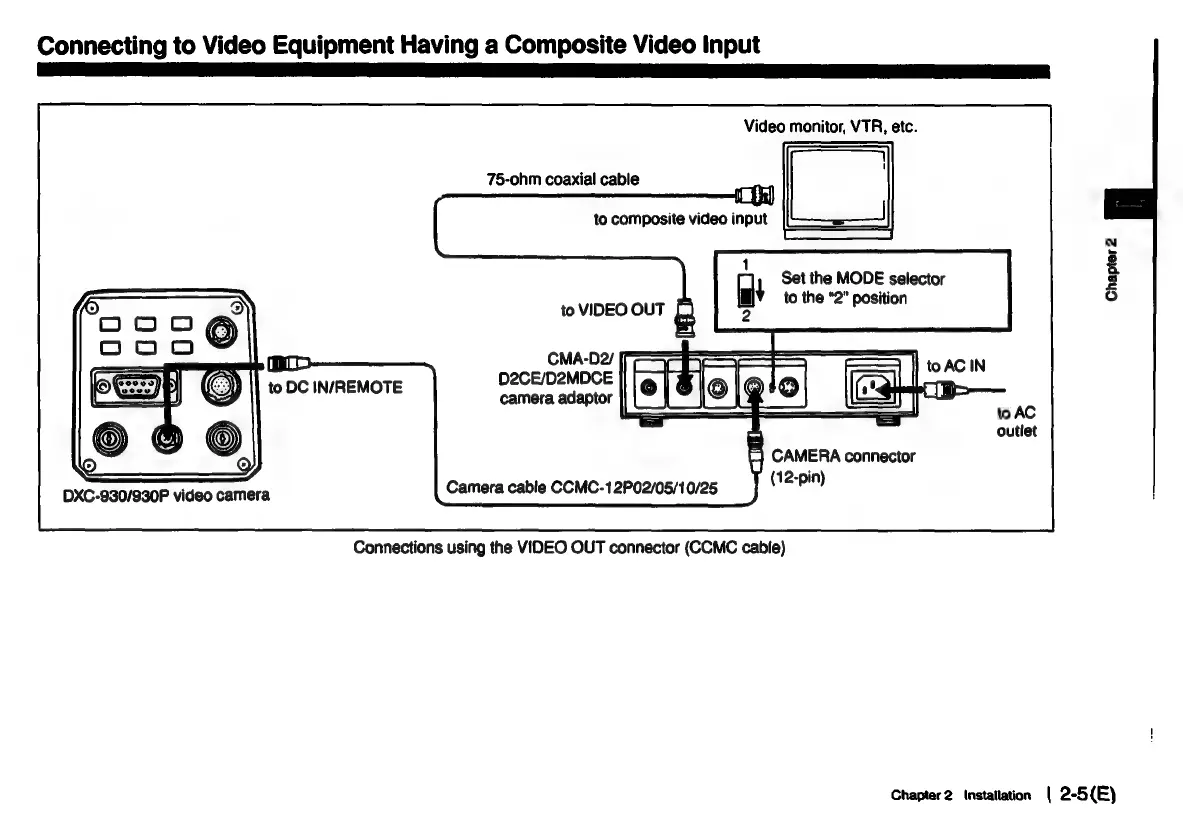

Connecting to Video Equipment Having a Composite Video Input
Vid
75-ohm coaxial cable
to composite video input
to VIDEO OUT
CMA-D2/
O2CE/D2MDCE
to
DC
IN/REMOTE
camera
adaptor
eo monitor, VTR, etc.
Set the MODE selector
to the *2” position
Chapter 2
to AC IN
a=
to AC
outlet
—} CAMERA connector
DXC-930/830P
video
camera
Camera
cable
CCMC-12P02/05/10/25
(12-pin)
Connections using the VIDEO OUT connector (CCMC cable)
Chapter 2 Installation | 2-5(E)
