Sony DFS-700 Service Manual

1-49
DFS-700/700P
Chapter 4 Advanced Operations
4-6 Chapter 4 Advanced Operations

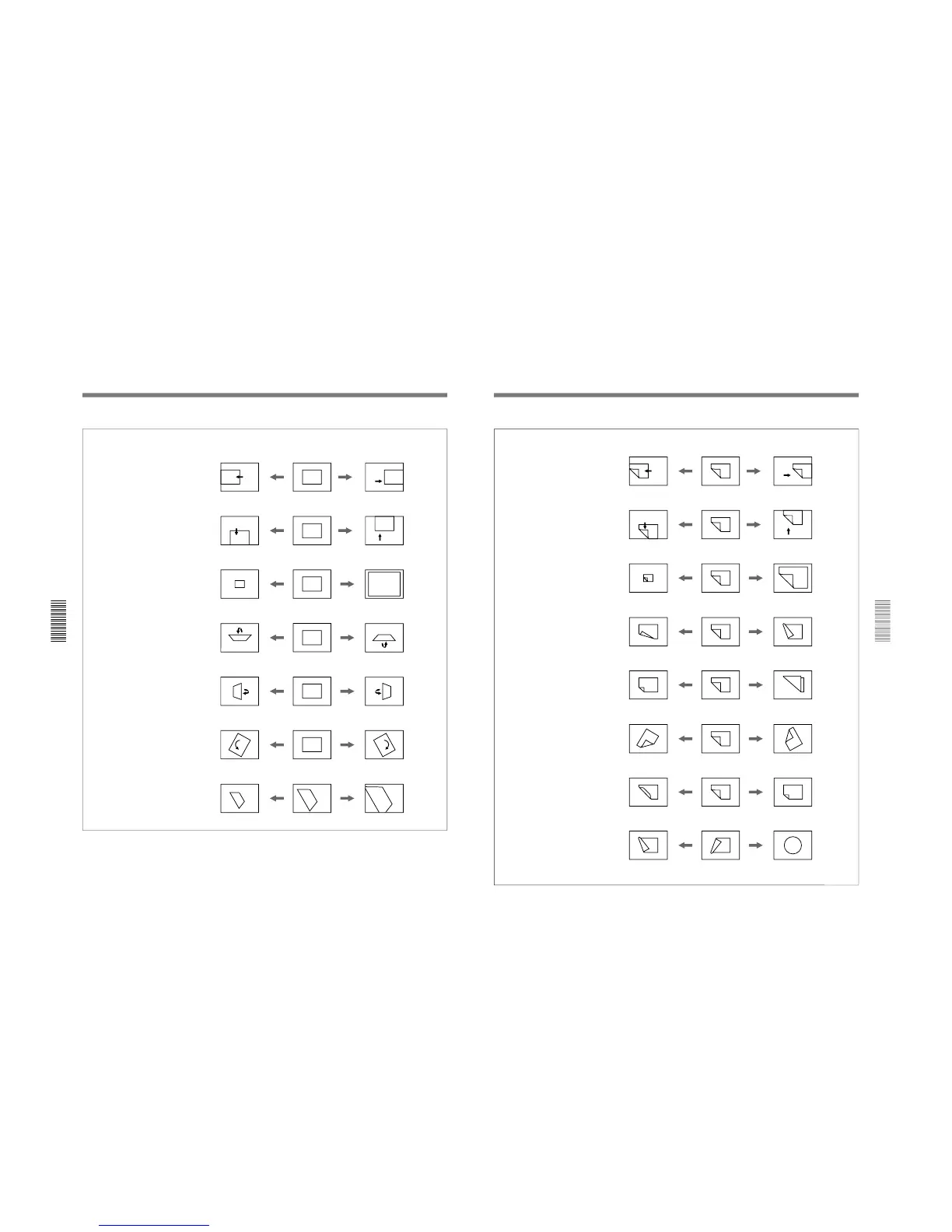

Parameters for linear user program effects (9000 to 9009 and 9100 to 9109)
User Program Effects
Controls and parameters
Impression of parameter adjustment
Joystick, Loc-X knob
Movement along x-axis
Joystick, Loc-Y knob
Movement along y-axis
Location section, Z-knob, Loc-Z knob
Magnification
Rot-X knob
Rotation about the x-axis
Rot-Y knob
Rotation about the y-axis
Rot-Z knob
Rotation about the z-axis
Pers knob
Perspective adjustment
Chapter 4 Advanced Operations
Chapter 4 Advanced Operations
4-7
Parameters for nonlinear user program effects (9200 to 9209 and 9300 to 9309)
Controls and parameters Impression of parameter adjustment
Joystick, Loc-X knob
Movement along x-axis
Joystick, Loc-Y knob
Movement along y-axis
Location section, Z-knob
Loc-Z knob
Magnification
Angle knob
Direction of folding
OFFSET knob
Degree of modification
Rot-Z knob
Rotation about the z-axis
Radius knob
Tightness of winding
FORM (F5 button)
Type of modification
KfDur
Time interval from one key frame to the next. (Not valid for key frame 1)
(See page 4-9.)
