Sony DPF-D70 - Exploded Views and Parts List; Exploded View Diagram; Parts List and Accessories

DPF-D70
1
2
5
5
3
6
7
4
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns: not supplied

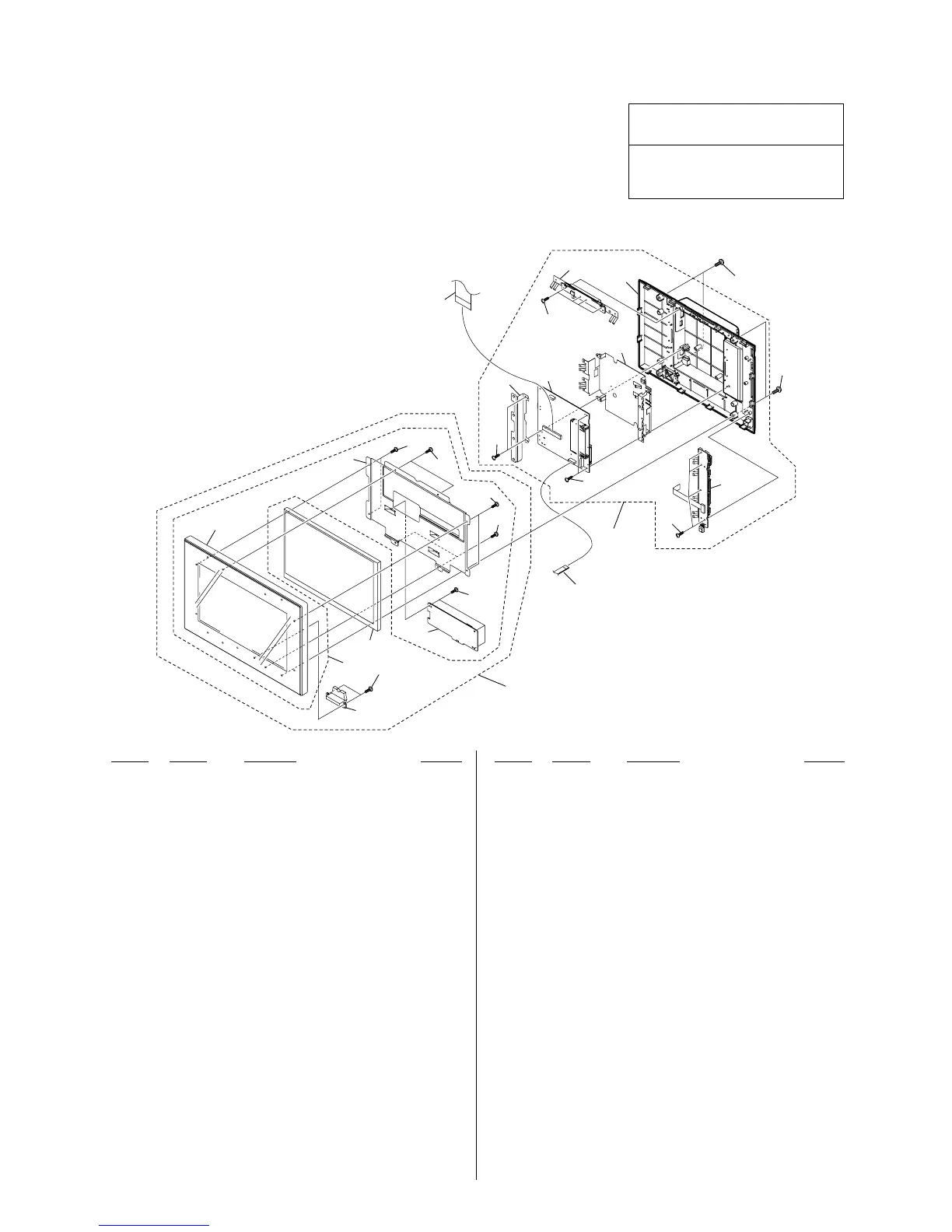

SECTION 1
EXPLODED VIEWS
- 3 -
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original one.
• Items marked “∗” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
Ref. No. Part No. Description Remarks
1 A-1546-161-A CASE ASSY, FRONT (BLACK)
1 A-1560-426-A CASE ASSY, FRONT (RED)
1 A-1560-428-A CASE ASSY, FRONT (BROWN)
2 A-1546-160-A CASE BLOCK ASSY, FRONT (BLACK)
2 A-1560-425-A CASE BLOCK ASSY, FRONT (RED)
2 A-1560-427-A CASE BLOCK ASSY, FRONT (BROWN)
3 A-1546-163-A CASE,ASSY, REAR
4 A-1546-162-B CASE BLOCK ASSY, REAR
5 3-080-206-41 SCREW, TAPPING, P2
6 4-115-829-01 SERVICE FFC (54 PIN)
7 4-115-828-01 SERVICE FFC (10 PIN)
< ACCESSORIES >
1-480-757-11 REMOTE COMMANDER (RMT-DPF1)
(REMOTE CONTROL)
3-300-258-11 MANUAL, INSTRUCTION (ENGLISH)
(EXCEPT CH, TW, KR)
3-300-258-21 MANUAL, INSTRUCTION (FRENCH)
(CND, AEP)
3-300-258-31 MANUAL, INSTRUCTION (GERMAN) (AEP)
3-300-258-41 MANUAL, INSTRUCTION (DUTCH) (AEP)
3-300-258-51 MANUAL, INSTRUCTION (ITALIAN) (AEP)
3-300-258-61 MANUAL, INSTRUCTION (SPANISH) (AEP, E)
3-300-258-71 MANUAL, INSTRUCTION (PORTUGUESE)
(AEP, E)
3-300-258-81 MANUAL, INSTRUCTION (RUSSIAN)
(EE, RUS)
3-300-258-91 MANUAL, INSTRUCTION (UKRAINIAN)
(EE, RUS)
3-300-259-11 MANUAL, INSTRUCTION (ARABIC) (E)
3-300-259-21 MANUAL, INSTRUCTION (PERSIAN) (E)
3-300-259-31 MANUAL, INSTRUCTION (KORIAN) (KR)
3-300-259-41 MANUAL, INSTRUCTION
(SIMPLIFIED CHINESE) (HK, CH)
3-300-259-51 MANUAL, INSTRUCTION
(TRADITIONAL CHINESE) (HK, TW)
0 3-876-557-01 SERVICE PARTS AC (AC-P12V1)
(AC ADAPTOR) (US, CND, TW)
0 3-876-699-01 SERVICE PARTS AC (AC-P12V2)
(AC ADAPTOR) (UK, HK)
0 3-876-700-01 SERVICE PARTS AC (AC-P12V3)
(AC ADAPTOR) (AEP, EE, RUS,
E(Central and South America, Middle East))
0 3-876-701-01 SERVICE PARTS AC (AC-P12V4)
(AC ADAPTOR) (AUS)
0 3-876-702-01 SERVICE PARTS AC (AC-P12V5)
(AC ADAPTOR) (CH)
0 3-876-703-01 SERVICE PARTS AC (AC-P12V6)
(AC ADAPTOR) (KR)
0 3-876-704-01 SERVICE PARTS AC (AC-P12V7)
(AC ADAPTOR) (E(Southeast Asia))
Ref. No. Part No. Description Remarks
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• Abbreviation
AUS : Australian model
CH : Chinese model
CND : Canadian model
EE : East European model
HK : Hong Kong model
KR : Korea model
RUS : Russian model
TW : Taiwan model
The changed portions from
Ver. 1.3 are shown in blue.
Ver. 1.4 2008.11
