DPF-D80
ns: not supplied
SECTION 1

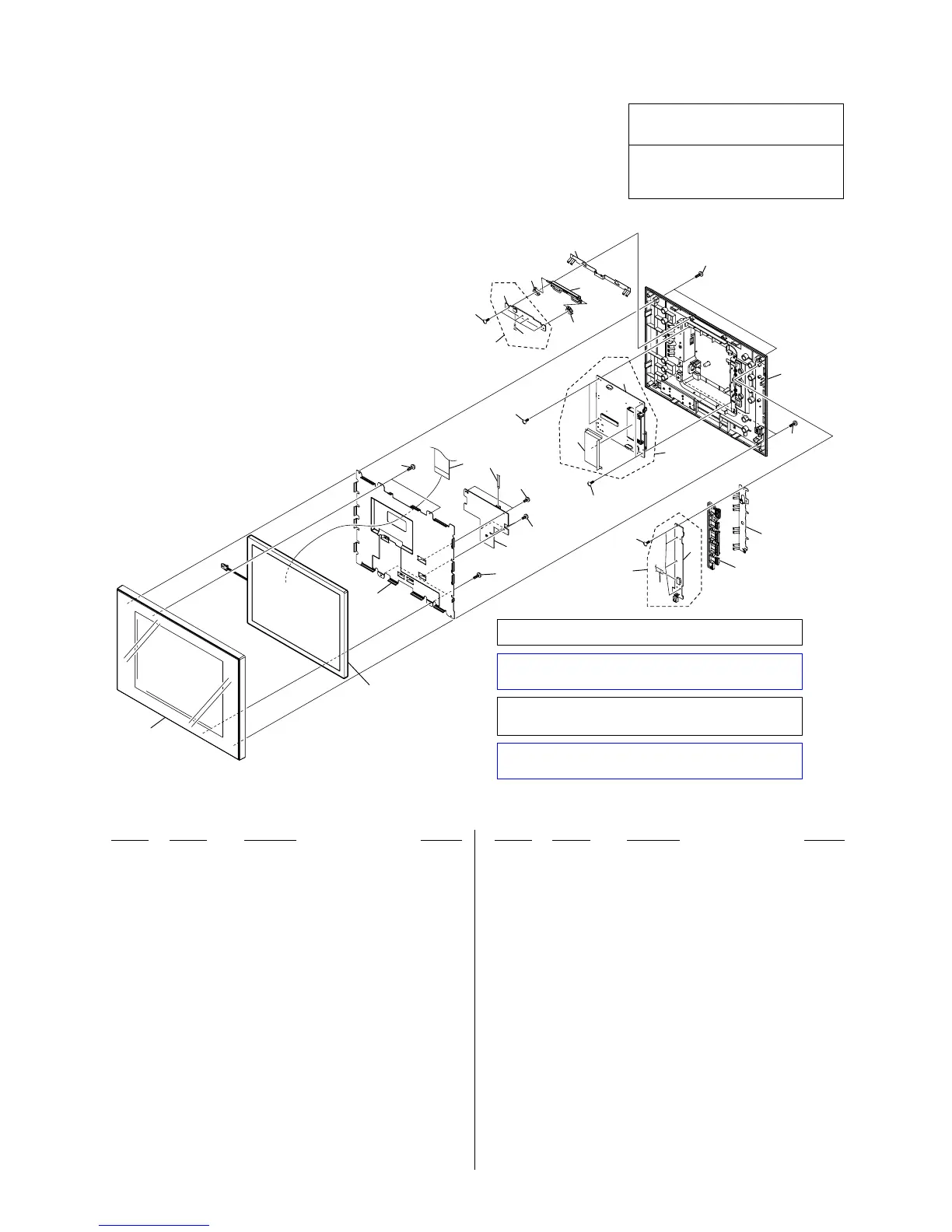

EXPLODED VIEWS
- 3 -
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original one.
• Items marked “∗” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Color Indication of Appearance Parts
Example:
(SILVER) : Cabinet’s Color
(Silver) : Parts Color
Ref. No. Part No. Description Remarks
1 A-1568-099-A FRONT COVER ASSY SERVICE (BLACK)
1 A-1568-101-A FRONT COVER COVER ASSY (BROWN)
2 4-118-711-01 SERVICE LCD (Note 1) (Note 2)
3 4-118-713-01 SERVICE FFC (LCD)
4 4-118-712-01 SERVICE FFC (INVERTOR)
5 A-1568-100-A INVERTOR PWB ASSY SERVICE
6 A-1568-098-A MAIN PWB ASSY SERVICE (Note 3) (Note 4)
7 A-1568-095-A KEY PWB ASSY SERVICE
8 A-1568-097-A BUTTON ASSY SERVICE
9 A-1568-108-A VIEW PWB ASSY SERVICE
10 4-113-912-01 BUTTON VIEW
11 A-1568-094-A REAR CASE ASSY SERVICE
12 2-666-551-31 SCREW, TAPPING, P2
13 2-599-475-21 SCREW (M1.7)
14 2-666-551-11 SCREW, TAPPING, P2
15 7-685-105-19 SCREW +P2X8 TYPE2 NON-SLIT
< ACCESSORIES >
1-480-757-11 REMOTE COMMANDER (RMT-DPF1)
0 1-569-008-21 ADAPTOR, CONVERSION 2P (E)
0 3-876-557-01 SERVICE PARTS AC (AC-P12V1) (US, CND)
0 3-876-699-01 SERVICE PARTS AC (AC-P12V2) (UK)
0 3-876-700-01 SERVICE PARTS AC (AC-P12V3)
(AEP, EE, RUS, E)
* 4-114-914-11 MANUAL, INSTRUCTION (ENGLISH)
* 4-114-914-21 MANUAL, INSTRUCTION (FRENCH)
(CND, AEP)
* 4-114-914-31 MANUAL, INSTRUCTION (GERMAN) (AEP)
* 4-114-914-41 MANUAL, INSTRUCTION (DUTCH) (AEP)
* 4-114-914-51 MANUAL, INSTRUCTION (ITALIAN) (AEP)
* 4-114-914-61 MANUAL, INSTRUCTION (SPANISH) (AEP, E)
* 4-114-914-71 MANUAL, INSTRUCTION (PORTUGUESE)
(AEP, E)
* 4-114-914-81 MANUAL, INSTRUCTION (RUSSIAN)
(EE, RUS)
* 4-114-914-91 MANUAL, INSTRUCTION (UKRAINIAN)
(EE, RUS)
Ref. No. Part No. Description Remarks
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• Abbreviation
CND : Canadian model
EE : East European model
RUS : Russian model
1
3
12
12
13
14
14
15
15
14
14
13
4
9
10
5
6
(Note 3)
(Note 4)
11
7
8
2
(Note 1)
(Note 2)
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Note 1 : Do not touch the display side at the LCD handling.
Note 2 : Refer to "Method of installing LCD" on page 4 when
install LCD.
Note 3 : After installing the MAIN board in REAR CASE ASSY,
paste bundled mylar to MAIN PWB ASSY SERVICE.
Note 4 : Execute initialization of destination on page 5 when
exchange MAIN PWB ASSY SERVICE.
To Next Page
