Sony DPF-D95 - Section 1 Exploded Views

DPF-D95
– 4 –
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
SECTION 1
EXPLODED VIEWS
ns: not supplied
The components identified by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
0
印の部品，または
0
印付の点線で囲ま
れた部品は，安全性を維持するために，
重要な部品です。
従って交換時は，必ず指定の部品を使用
してください。

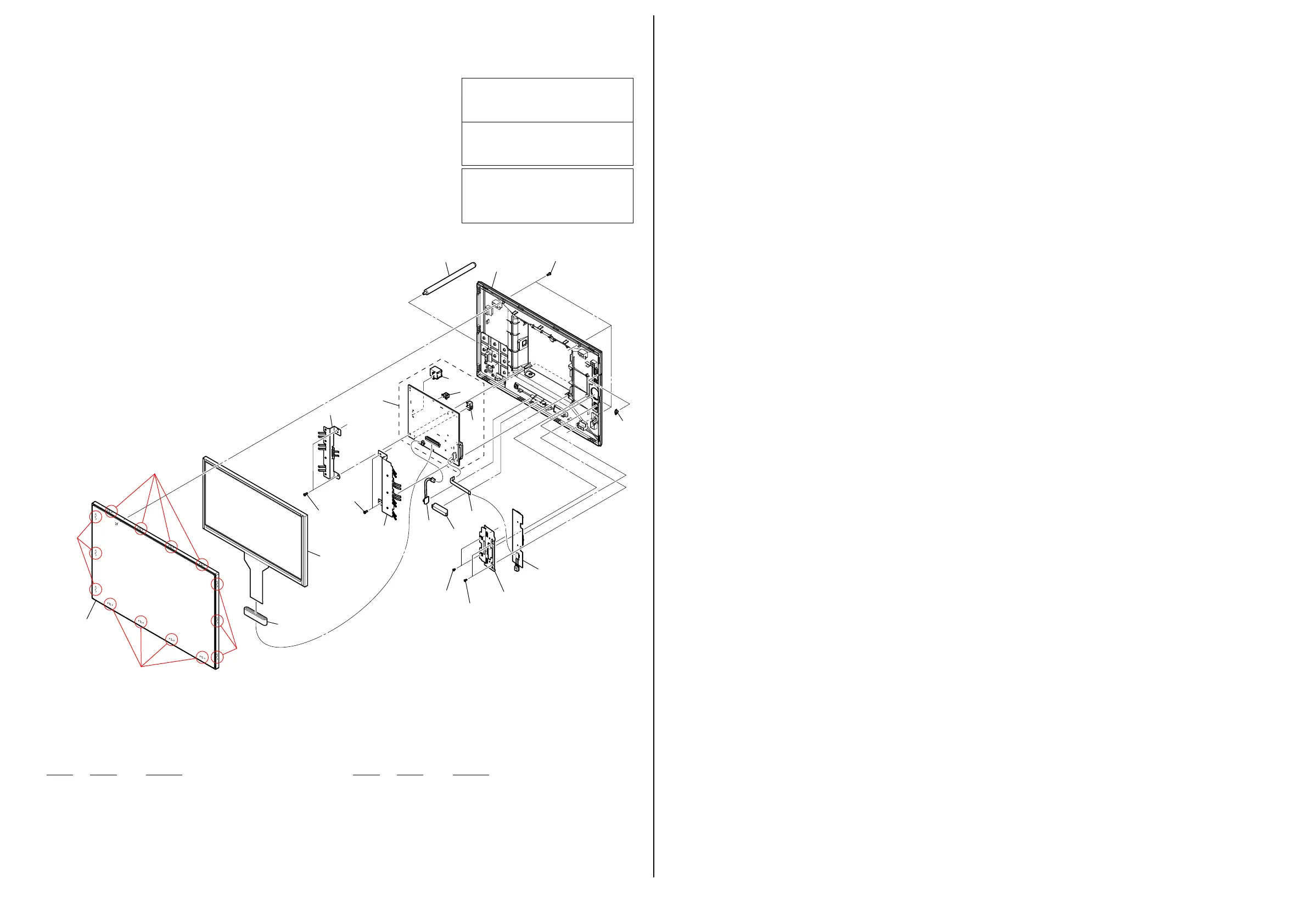

1-1. OVERALL SECTION
• Abbreviation
AR : Argentine model
AUS : Australian model
BR : Brazilian model
CH : Chinese model
CND : Canadian model
J : Japanese model
KR : Korea model
TW : Taiwan model
Ref. No. Part No. Description Ref. No. Part No. Description
1 A-1774-136-A FRONT COVER SERVICE
2 A-1776-981-A LCD ASSY SERVICE
3 3-080-206-21 SCREW, TAPPING, P2
4 4-176-426-01 STAND
5 A-1774-138-A REAR PANEL ASSY SERVICE (E)
5 A-1774-139-A REAR PANEL ASSY SERVICE (J)
6 A-1774-935-A KEY PWB ASSY SERVICE (B)
7 2-666-551-11 SCREW, TAPPING, P2
8 3-254-003-01 SCREW
9 A-1774-141-A MAIN PWB ASSY SERVICE
10 4-141-820-01 SERVICE USB B CONNECTOR
11 1-798-321-11 SWITCH, TACTILE
0 12 4-141-818-01 SERVICE DC JACK
13 A-1779-816-A SERVICE FFC (KEY)
14 A-1774-142-A LOGO LED PCB ASSY SERVICE
12
11
10
9
ns
ns
3
3
1
2
4
3
ns
ns
7
6
ns
1(Claw)
1(Claw)
1(Claw)
5
14
13
8
ns
1(Claw)
