Sony DSC-H10 - Exploded Views: BT Holder Section; BT Holder Section Parts

5-7
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-H10_L2

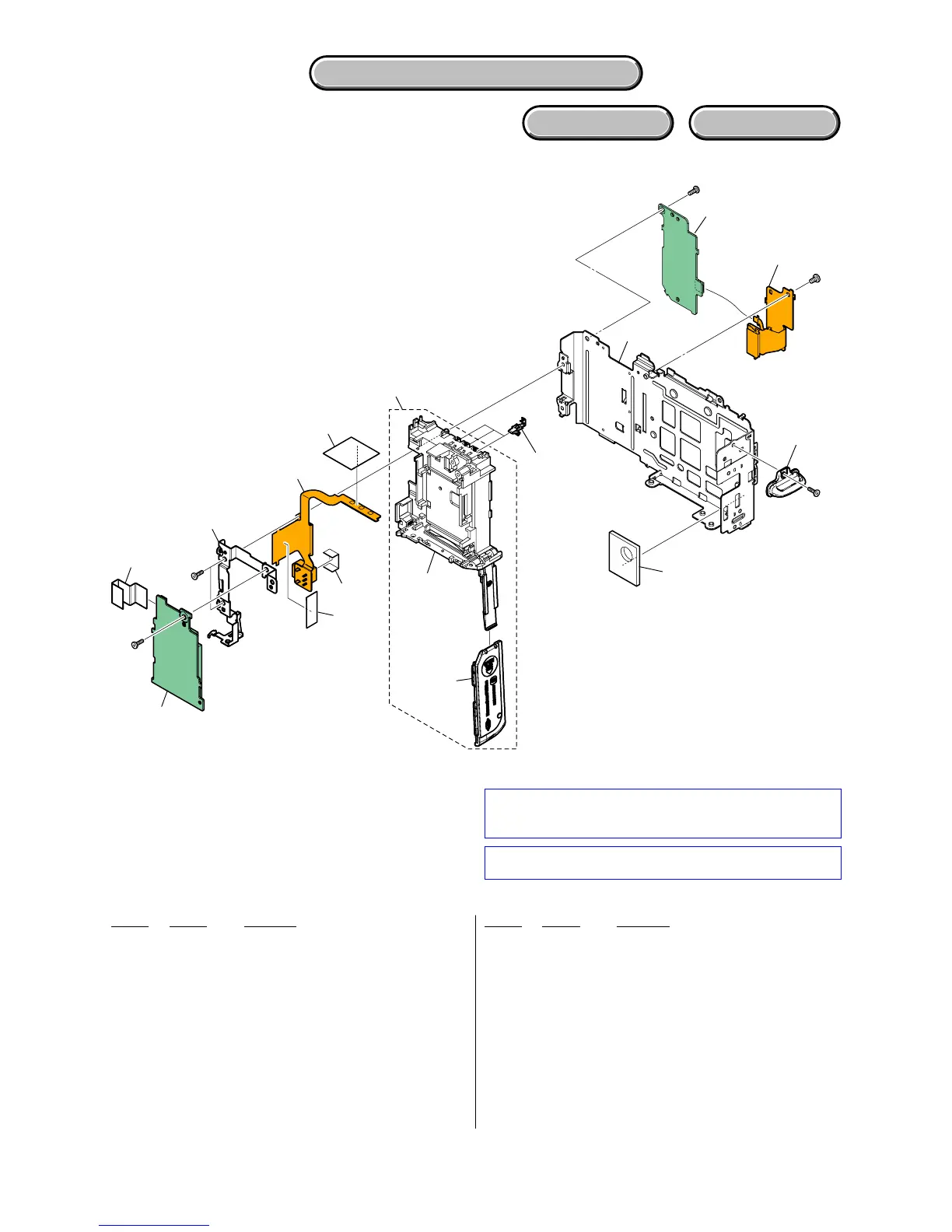

5-1-6. BT HOLDER SECTION
ns: not supplied
HARDWARE LIST
DISASSEMBLY
Note: Refer to HELP “Installation method of battery terminal board”
when changing the battery terminal board.
Ref. No. Part No. Description Ref. No. Part No. Description
MS-403
SW-530
251
252
#23
#69
ns
#6
9
253
254
255
256
257
260
261
262
258
264
BT901
(Note)
#3
259
#23
263
251 A-1526-955-A MS-403 BOARD, COMPLETE
252 1-835-025-11 CABLE, FLEXIBLE FLAT (FFC-167)
* 253 3-271-026-01 RETAINER, JK
254 A-1441-939-A JK-373 FLEXIBLE BOARD, COMPLETE
* 255 3-271-035-01 SHEET, DC INSULATING
* 256 3-271-038-01 SHEET, BT TERMINAL INSULATING
257 X-2186-434-1 HOLDER ASSY, BT (BLACK)
257 X-2189-801-1 HOLDER ASSY, BT (SILVER)
258 3-271-021-11 LID, BT (BLACK)
258 3-271-021-21 LID, BT (SILVER)
259 3-283-671-01 SHEET, LENS VIBRATION PROOF
260 X-2189-802-1 FRAME ASSY, MAIN
261 3-299-190-01 BRACKET (LE), STRAP
262 A-1441-937-A PD-360 FLEXIBLE BOARD, COMPLETE
263 A-1441-936-A SW-530 BOARD, COMPLETE
* 264 3-876-651-01 SHEET (JK)
0 BT901 1-780-456-11 TERMINAL BOARD, BATTERY (Note)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#23 3-080-204-11 SCREW, TAPPING, P2 (Black)
#69 2-599-475-21 SCREW (M1.7) (Silver)
Note: バッテリターミナルボードの交換時は「HELP “Installa-
tion method of battery terminal board” 」を参照してくだ
さい。
• Refer to page 5-1 for mark 0.
