Sony DSC-N1 - The Method of Attachment of Cabinet Center Block

DSC-N1_L2
2. DISASSEMBLY
2. DISASSEMBLY
2-5 2-6

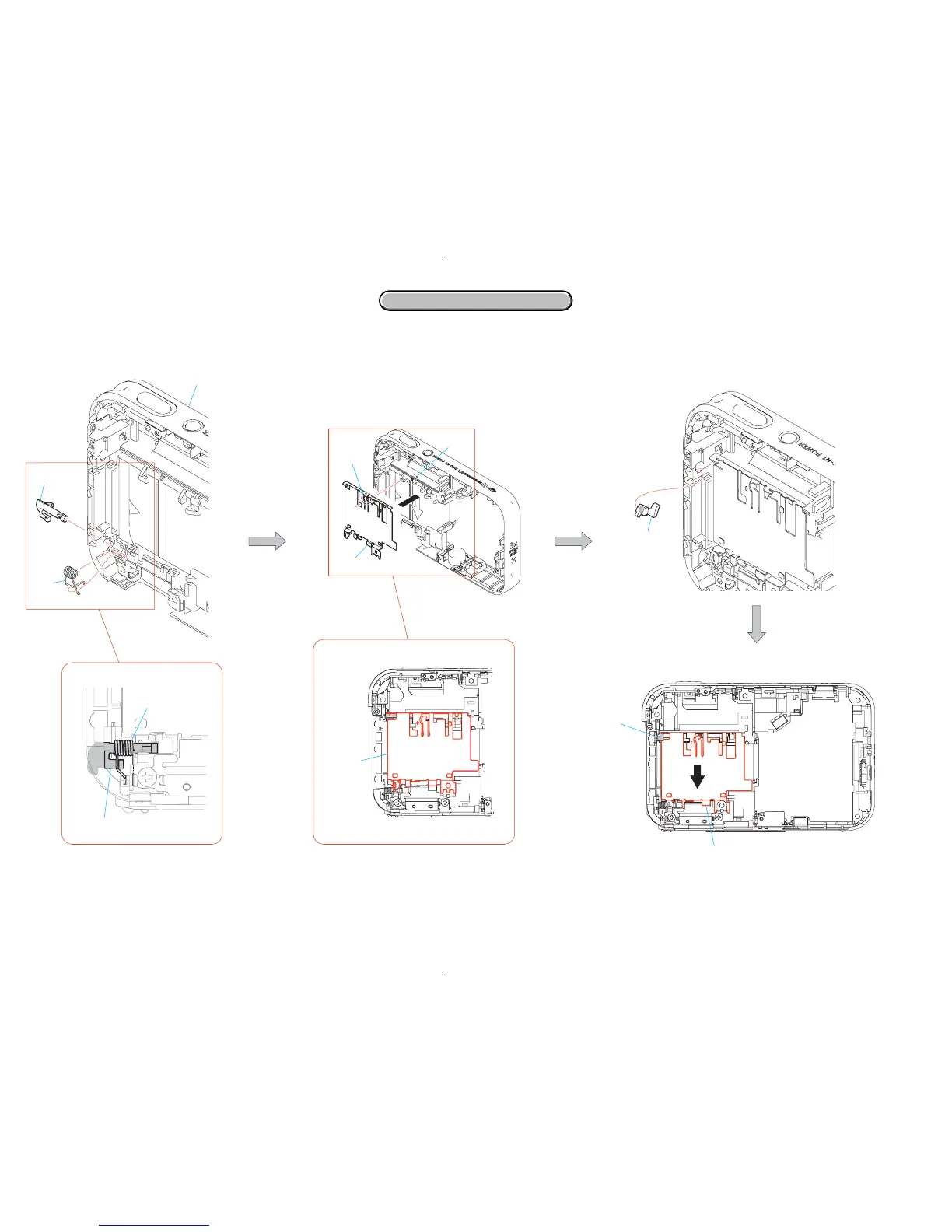

2-2. THE METHOD OF ATTACHMENT OF CABINET CENTER BLOCK
Lock claw (BT)
MS guide light
BT cover
BT cover
Spring (lock claw)
Cabinet (center) block
boss
hook
1
2
3
4
1 Spring (lock claw) x1
2 Lock claw (BT) x1
3 BT cover x1
Slide until the hook of the BT cover
reaches the boss of the cabinet.
4 MS guide light x1
5 Slide the BT cover at the bottom.
Check it the BT cover is locked and not removed.
5
