2. DISASSEMBLY
2. DISASSEMBLY
2 Install the new naruto gear and new naruto washer.

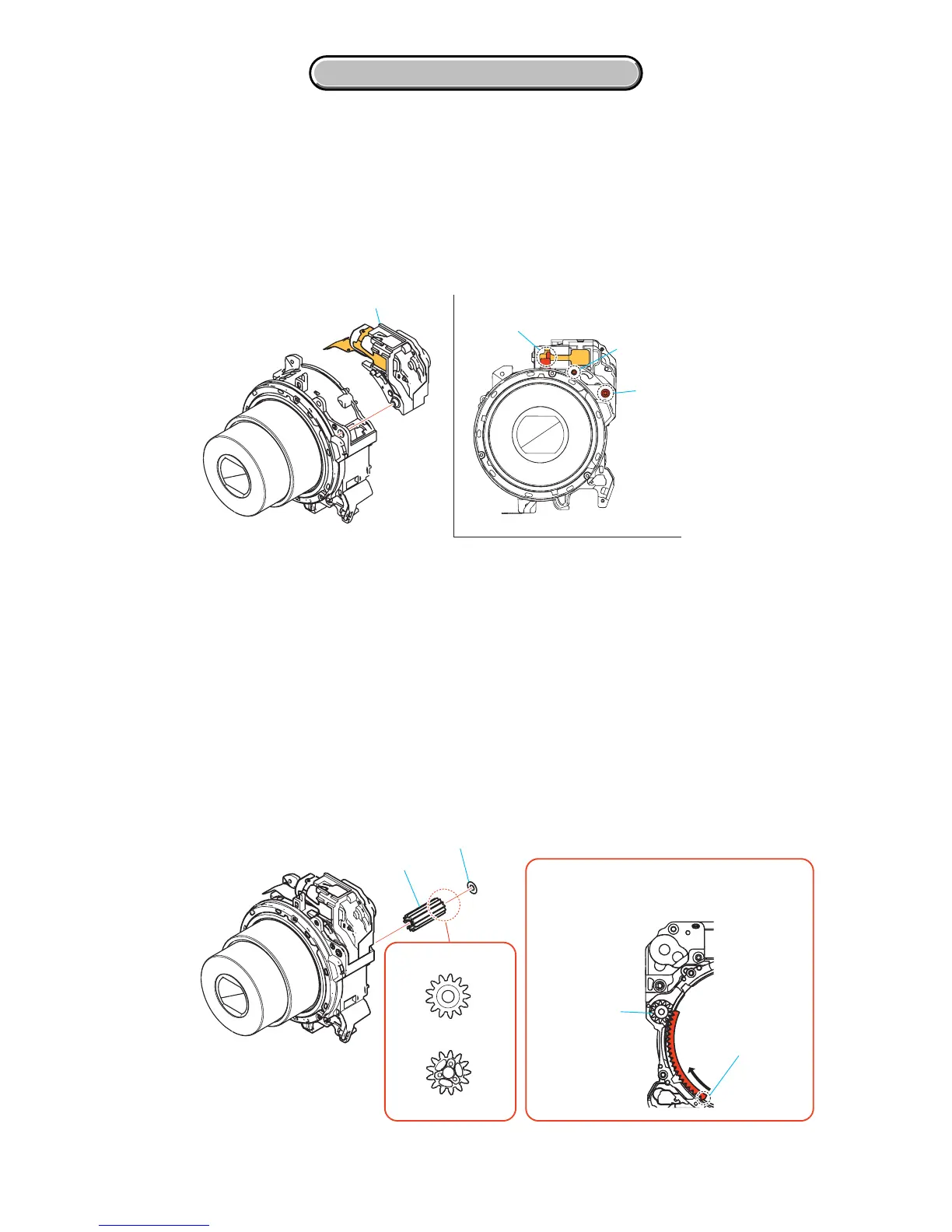

2-4-2. ASSEMBLY OF ZOOM GEAR BLOCK AND FRONT LENS BLOCK
1 Install the new zoom gear block.
Zoom gear block
Zoom flexible board
Boss
Boss
Check positions
Naruto gear
Naruto gear
Naruto washer
Rear side
Front side
Check the shape
Note: Turn the difference part a little and
set the naruto gear when the naruto
gear is floating.
Difference part
