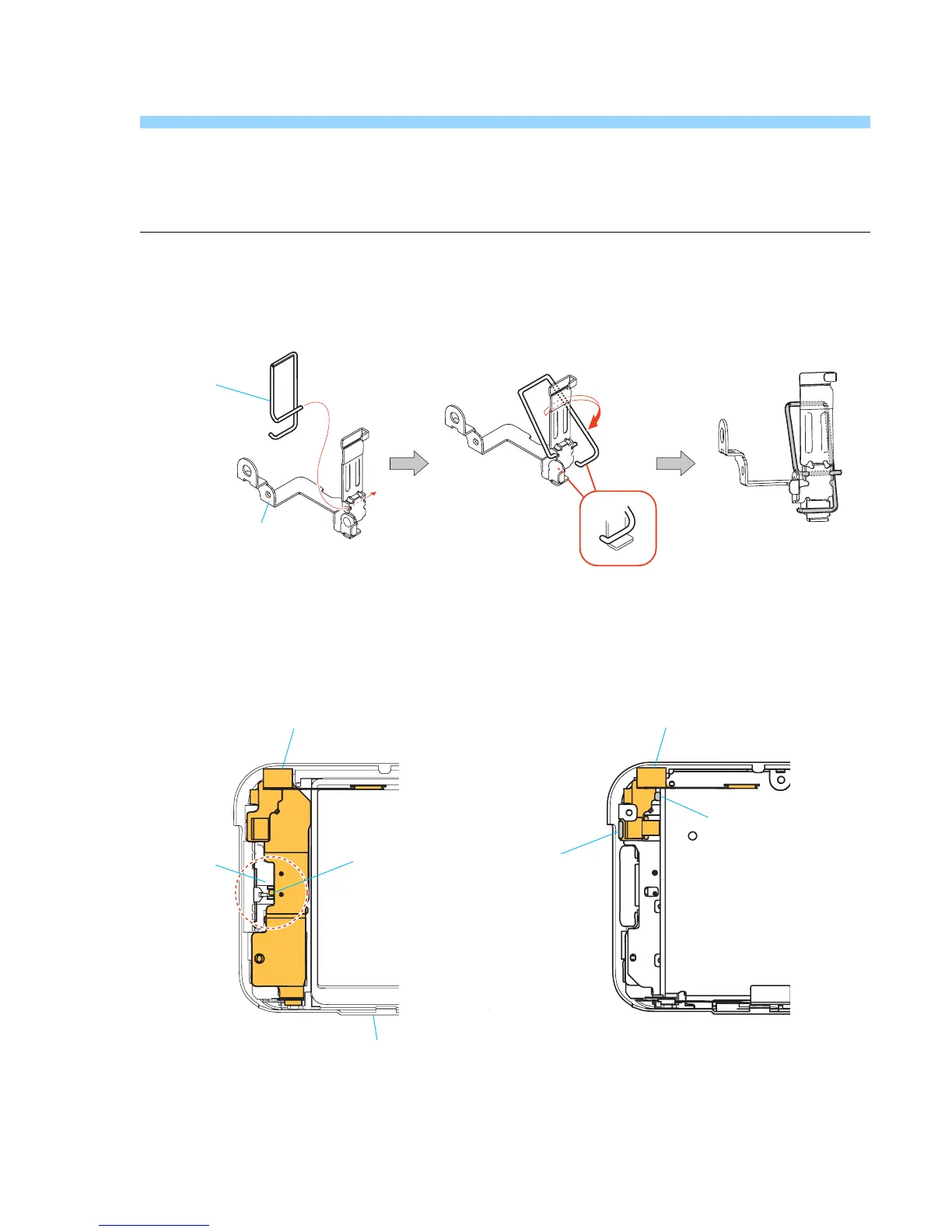

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
1 Pass the BT discharge
spring through a hole
in the holder (spring).
2 Route the BT discharge spring
in front of the holder (spring)
and hook it onto the plate
as shown below.
BT discharge
spring
holder
(spring)
S005
SW-460 flexible board
Cabinet (rear) assembly
Mode knob
SW-460 flexible board
Claw
(Retainer plate (LCD))
Claw
(Retainer
plate (LCD))
