3. DSC-S75 and DSC-S85 Digital Cameras
Chapter 3 - DSC-S75 and DSC-S85 Digital Cameras
Overview

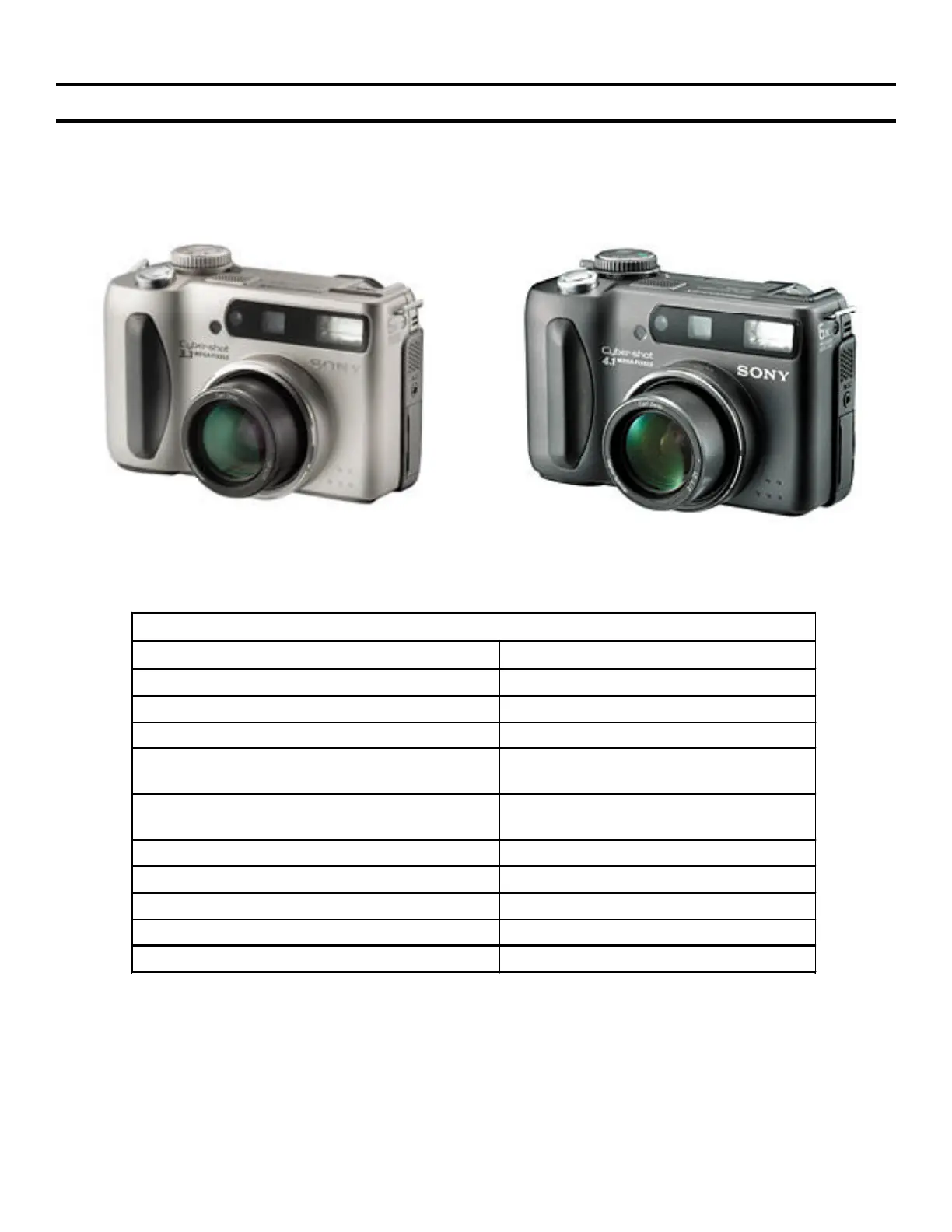

The DSC-S75 and S85 Cyber-shot
®
digital cameras are very similar in appearance and operation. The circuit
descriptions and repair procedures are also very similar and apply equally to both models. The differences are
in the body colors (S85 is black and S75 is silver), the number of CCD pixels and the price. The S75 is supplied
with an 8 MB Memory Stick ™ and the S85 with a 16 MB memory stick.
DSC-S75
Repair Tools and Jigs
Repairing these digital cameras requires the following specialized tools and jigs. See Table 3-1 below:
Table 3-1 – Repair Tools and Jigs
Jig or Tool Vendor
NTSC color monitor Your choice
Vectorscope Your choice
Radar W jig J-6082-429-A
Radar Jig Software Available Online at
http://service.sel.sony.com/
Computer to run Radar W software Must have USB & bi-direction parallel
printer port
RM-95 Adjusting Remote Commander J-6082-053-B
CPC 9 interface jig
See note 1
. J-6082-393-C
See note 1
.
Light box with focus and color bar patterns Your choice
Tripod Your choice
Tool to discharge flash capacitor Made with 1000 ohm 1 watt resistor
Note 1: Do not use earlier version of CPC-9 interface jigs. Use only -393-
C version.
Earlier versions will damage the SY-68 board. The version and part numbers are silk
screened on the CPC-9 jigs.
DSC-S85
