Sony DSC-S950 - Exploded Views: Main Frame Section

4-3
DSC-S950
Ref. No. Part No. Description Ref. No. Part No. Description
51 A-1701-267-A ST BLOCK ASSY (Note 2)
52 3-288-943-01 SCREW_TP_1.4_3_A_0.2_D=2.5
53 4-137-871-01 SCREW_TP_1.4_3.5_A0.3_D2.5_N
54 4-135-316-01 LID (S), BT (SILVER)
54 4-135-317-01 LID (B), BT (BLACK)
54 4-135-318-01 LID (P), BT (PINK)
55 4-135-314-01 LCD (Note 2)
56 4-135-313-01 BRACKET, LCD
57 X-2345-712-1 MAIN FRAME SUB ASSY
58 4-135-315-01 SHEET, CCD CONNECTOR
0 F1 1-576-363-11 FUSE (1A/30V)
0 F2 1-576-913-11 FUSE, MICRO (1608 TYPE) (1.6A/36V)
* JC1 1-820-333-11 MULTI CONNECTOR (REC) 8P (USB • A/V OUT)

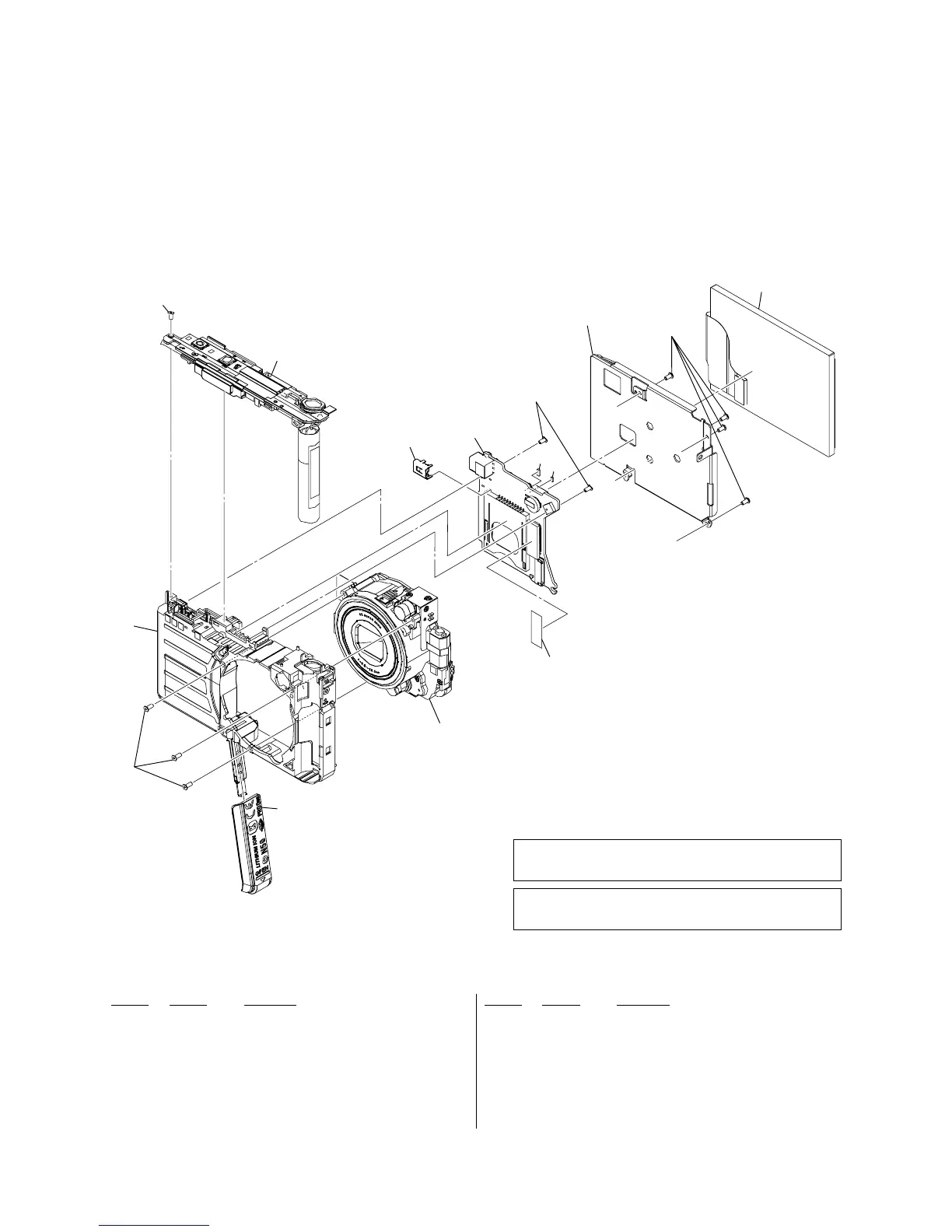

4-1-2. MAIN FRAME SECTION
ns: not supplied
51
(Note 2)
53
52
56
55
(Note 2)
57
58
54
52
53
Lens Section
(See page 4-4)
ns
(Note 1, 2)
F1
F2
JC1
Note 1: In case of the main board failure, contact your local
Sony service Headquarter for the measures.
Note 2: The adjustment is not required after replacing these
parts.
• Refer to page 4-1 for mark 0.
