Sony DSC-S950 - Lens Section Disassembly; Exploded Views: Lens Section

4-4
DSC-S950
Ref. No. Part No. Description Ref. No. Part No. Description
101 A-1701-284-A LENS BLOCK ASSY
102 4-135-324-01 FILTER SET, LOW PASS
103 4-135-323-01 CCD PLATE SHEET
104 3-288-943-01 SCREW_TP_1.4_3_A_0.2_D=2.5

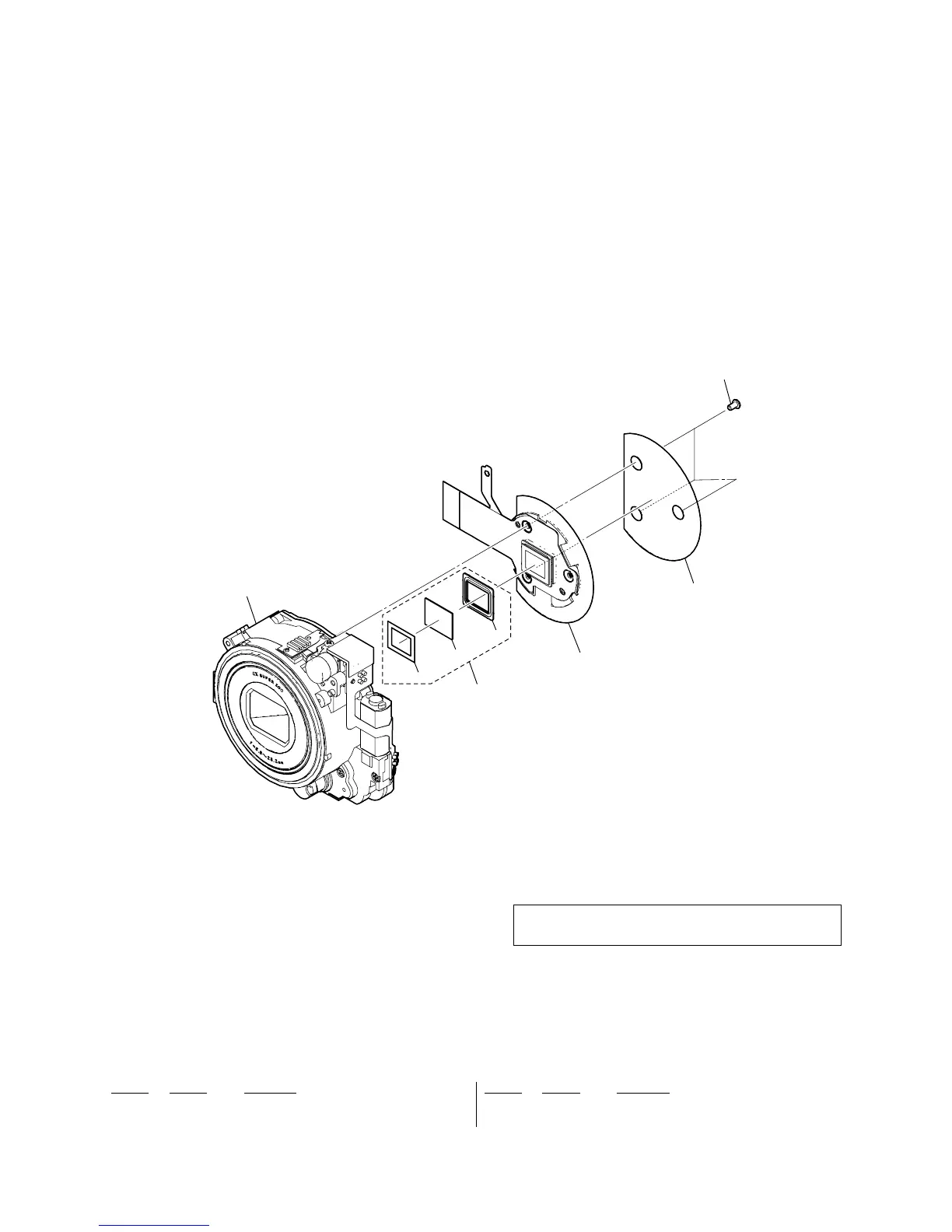

4-1-3. LENS SECTION
ns: not supplied
101
102
103
104
ns
(CCD Assy)
(Note)
ns
ns
ns
Note: In case of the CCD assy failure, contact your local Sony
service Headquarter for the measures.
