Sony DSC-T70 - Hardware List; Overall Section

5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-T70/T75_L2
Ref. No. Part No. Description Ref. No. Part No. Description
1 3-272-252-01 GRIP
2 A-1284-139-A CABINET (FRONT) BLOCK ASSY (SILVER)
2 A-1284-140-A CABINET (FRONT) BLOCK ASSY (BLACK)
2 A-1284-141-A CABINET (FRONT) BLOCK ASSY (WHITE)
2 A-1284-142-A CABINET (FRONT) BLOCK ASSY (PINK)
3 1-480-344-11 SWITCH BLOCK, CONTROL (RL60570)
4 3-272-254-01 BRACKET, STRAP
* 5 3-272-255-01 SHEET (STRAP), ADHESIVE
6 3-272-253-01 CABINET (REAR (SKK)) (SILVER)
6 3-274-562-11 CABINET (REAR) (BLACK)
6 3-272-253-21 CABINET (REAR (SKK)) (WHITE)
6 3-272-253-31 CABINET (REAR (SKK)) (PINK)
7 CAUTION 1 CUSHION (RL MICROPHONE)
8 CAUTION 2 SHEET (WATERPROOF SHEET)
LCD901 A-1334-750-A FTS BLOCK ASSY (30SHGU07)
#18 2-635-591-21 SCREW (M1.4), NEW TRUSTAR P2 (Silver)
#29 2-662-396-01 SCREW (M1.4), NEW, TRUSTAR, P2 (Black)
#82 3-272-251-01 SCREW (M1.4), HEAD PRECISION (Silver)
DISASSEMBLY
HARDWARE LIST

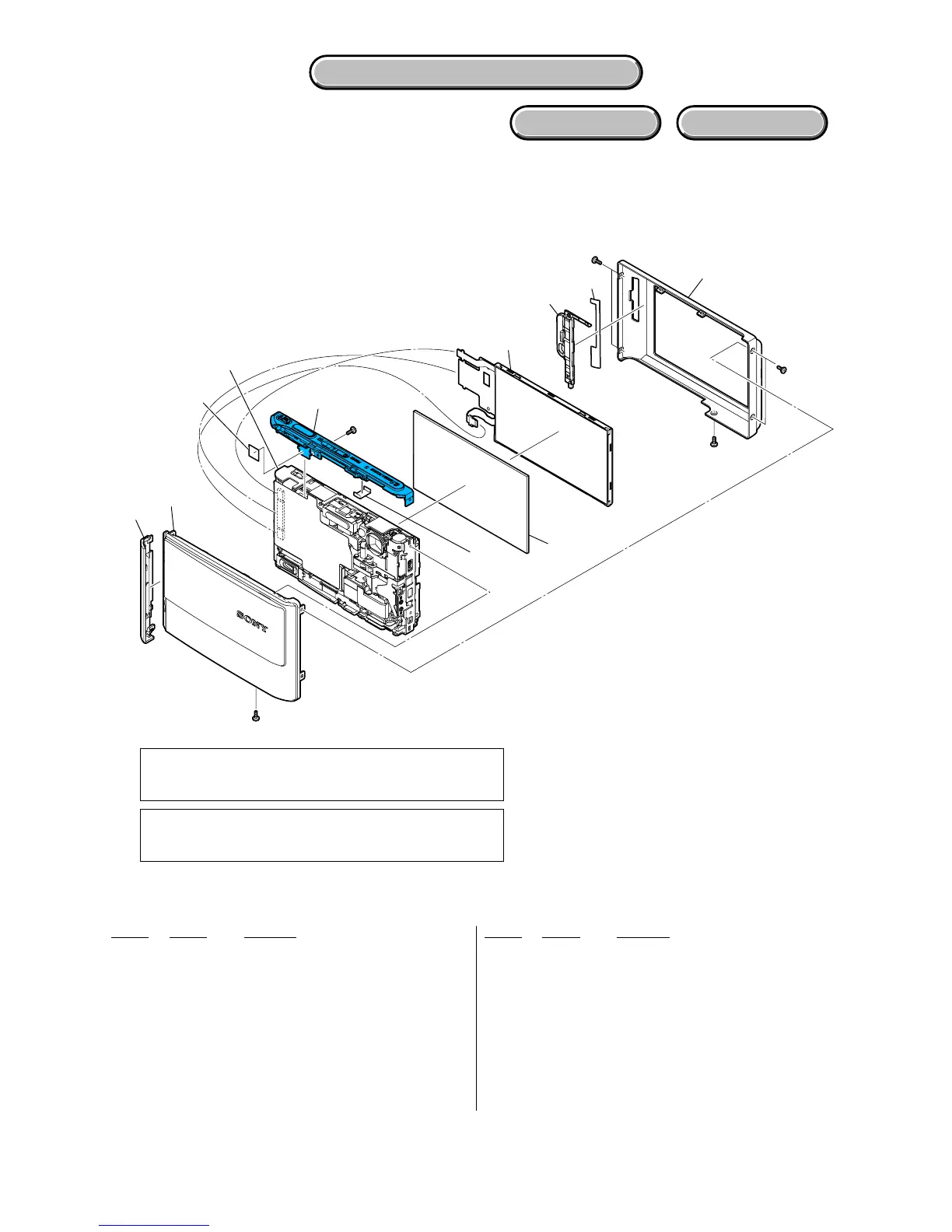

5-1-1. OVERALL SECTION
5-1. EXPLODED VIEWS
(6mm × 14.5mm)
(6.5mm × 6.5mm)
#18/#29
#18
#29
#18/#29
#82
#18
#29
ns
1
2
3
7
8
4
5
6
SY-183 board section
(See Page 5-3)
LCD901
For the part of 7 : CUSHION (RL MICROPHONE) (3-275-797-01),
cut NON WOVEN (T0.25) (3-076-631-01) into the desired length and use it.
CAUTION 1 :
For the part of 8 : SHEET (WATERPROOF SHEET) (3-280-761-01),
cut NON WOVEN (T0.25) (3-076-631-01) into the desired length and use it.
CAUTION 2 :
ns: not supplied
