5-4

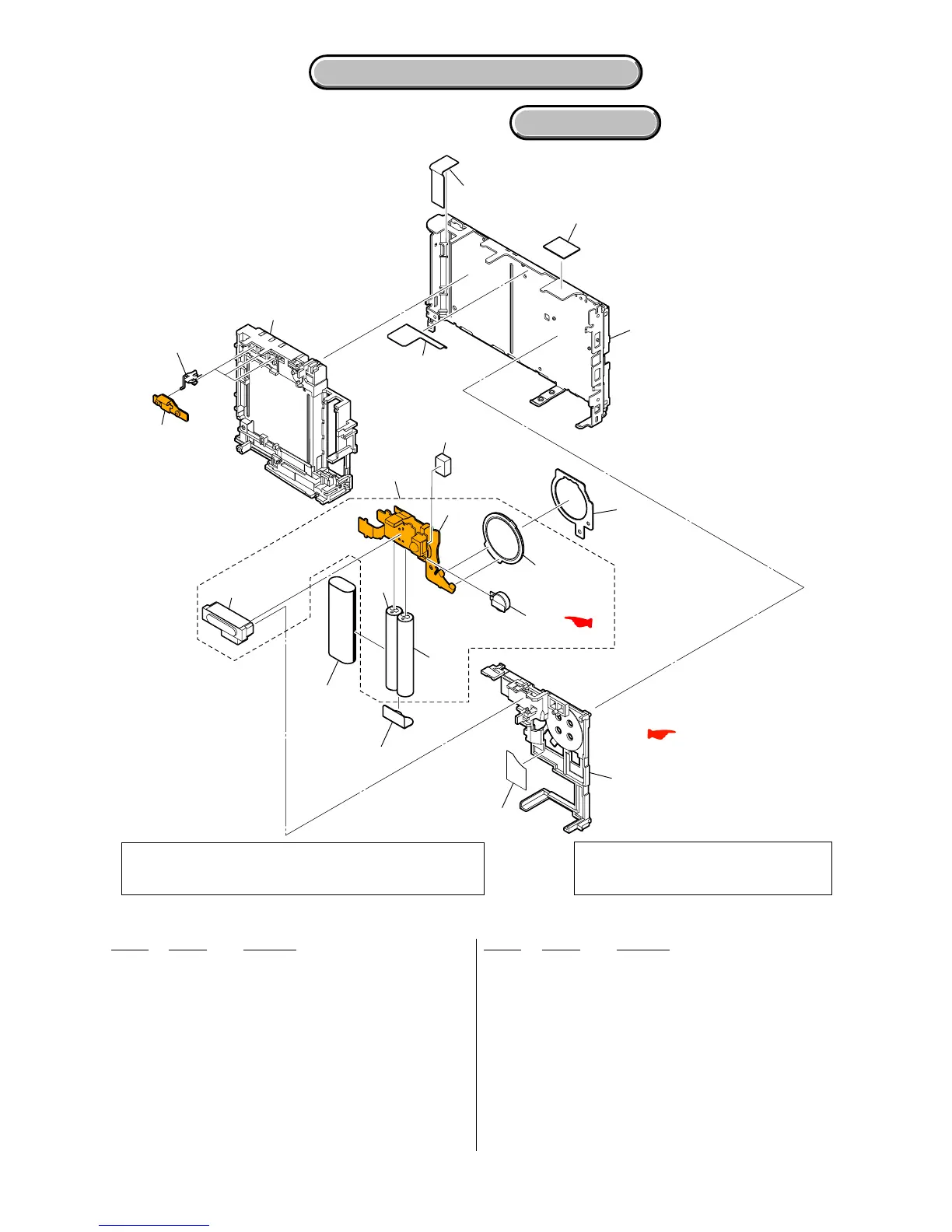

5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-T70/T75_L2
Ref. No. Part No. Description Ref. No. Part No. Description
101 1-874-894-11 BT-039 FLEXIBLE BOARD
102 X-2186-608-1 ASSY, BTH (S) (SILVER)
102 X-2186-609-1 ASSY, BTH (B) (BLACK)
102 X-2186-610-1 ASSY, BTH (W) (WHITE)
102 X-2186-611-1 ASSY, BTH (P) (PINK)
* 103 3-272-216-01 SHEET, ST2
104 CAUTION 1 SHEET (RL)
* 105 3-272-217-01 CUSHION (MICROPHONE)
106 X-2186-606-1 FRAME ASSY, MAIN
107 3-272-206-01 HOLDER, LENS
* 108 3-272-218-01 SHEET, LH
* 109 3-272-210-01 SHEET, MCON
110 3-272-213-01 FILM, ST
0 111 1-480-416-11 FLASH UNIT (FL60570)
112 A-1334-226-A ST-172 FLEXIBLE BOARD, COMPLETE
* 113 3-272-208-01 CUSHION, AF
* 114 3-272-207-01 CUSHION, SP
*0BT001 1-756-566-11 BATTERY, LITHIUM SECONDARY
0 BH001 1-780-456-41 TERMINAL BOARD, BATTERY
*0C901 1-114-572-11 CAP, ELECT 21.9MF 315V
*0C902 1-114-572-11 CAP, ELECT 21.9MF 315V
* SP901 1-826-759-11 BUZZER, PIEZOELECTRIC (2.0CM)
(6mm × 25mm)
101
102
SP901
BT001
BH001
C901
C902
: BT001 (BATTERY, LITHIUM
SECONDARY)
Board on the mount position.
(See page 4-21.)
103
104
105
106
114
113
112
110
111
109
108
107
For the part of 104 : SHEET (RL) (3-272-219-01),
cut SHEET, ADHESIVE (2-649-300-01) into the desired length and use it.
CAUTION 1 :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
CAUTION
ns
