Sony DSX-A40UE - Disassembly Guide; Disassembly Flow and Fuse Removal

DSX-A40UE/A40UI/A42UI
9
SECTION 3
DISASSEMBLY
2 Insert a flathead screwdriver between the
cover and the chassis and raise the cover.
2 Insert a flathead screwdriver between the
cover and the chassis and raise the cover.
5 cover
4 five claws
3 two bosses
3 two bosses
1 fuse (blade type) (auto fuse)
(10A/32V) (FU101)

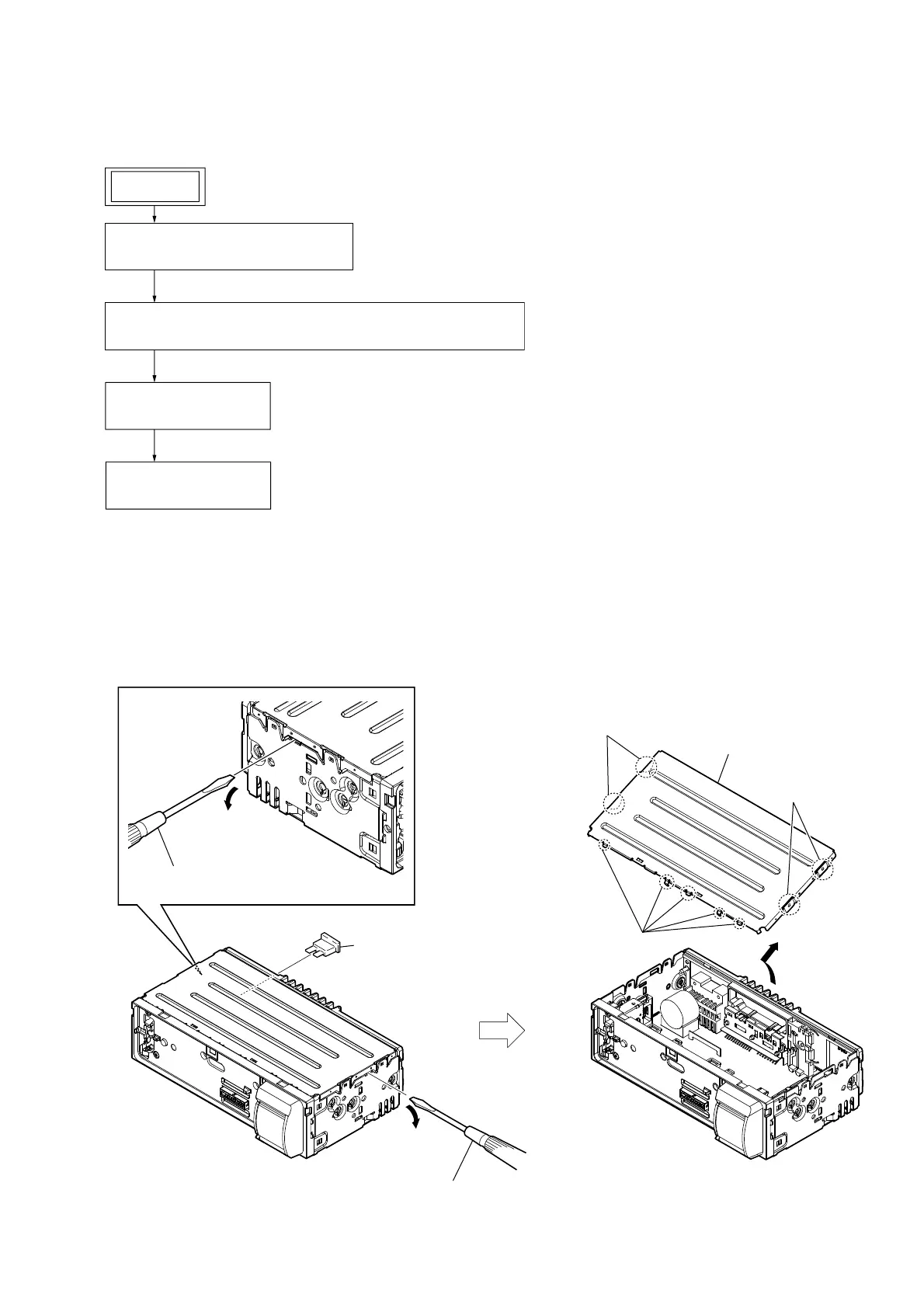

• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
3-2. FUSE (BLADE TYPE) (AUTO FUSE) (10A/32V) (FU101), COVER
3-2. FUSE (BLADE TYPE) (AUTO FUSE) (10A/32V) (FU101), COVER
(Page 9)
3-3. SUB PANEL BLOCK
(Page 10)
3-4. MAIN BOARD
(Page 10)
SET
FRONT PANEL ASSY
Note:
Illustration of disassembly is omitted.
