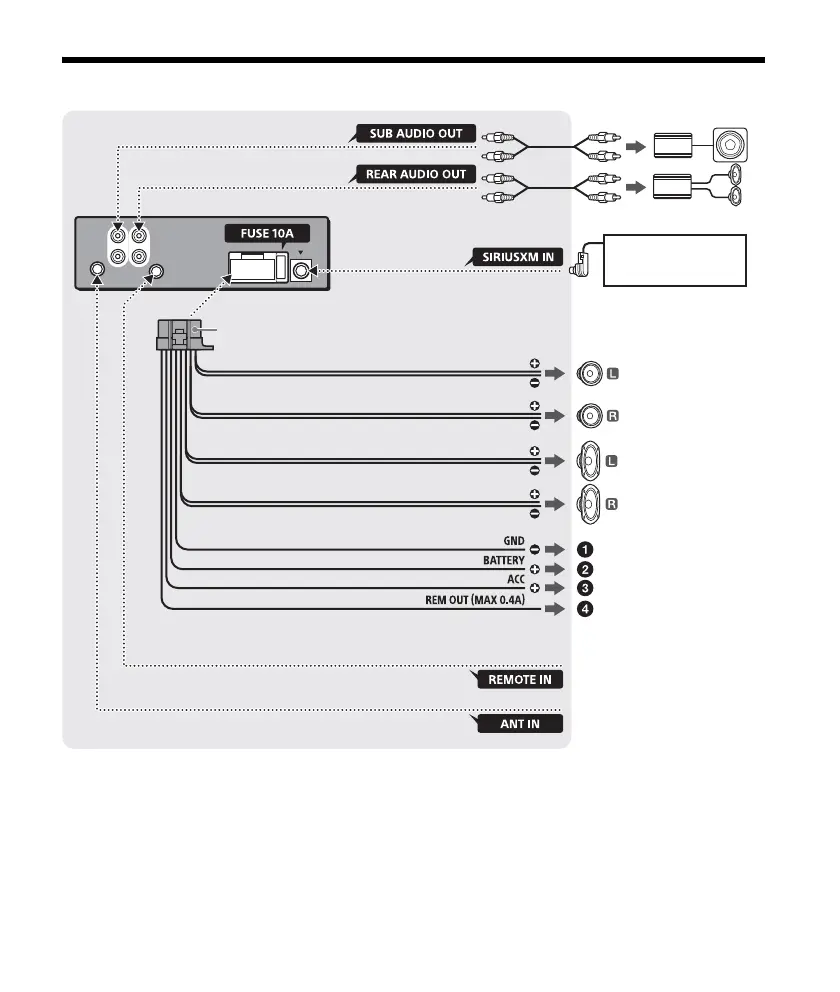

Connection
*1 Not supplied
*2 Speaker impedance: 4 Ω – 8 Ω × 4
*3 RCA pin cord (not supplied)
*4 Depending on the type of car, use an adaptor for a
wired remote control (not supplied). For details on
using the wired remote control, see “Using the wired
remote control” (page 39).
from a wired remote control
(not supplied)*
4
White
White/black striped
Gray
Black
Ye l l o w
Red
Blue/white striped
from a car antenna
(aerial)
Front speaker*
1
*
2
Rear speaker*
1
*
2
Gray/black striped
Green
Green/black striped
Purple
Purple/black striped
*
3
Subwoofer*
1
Power amplifier*
1
For details, see “Making
connections” (page 39).
Satellite radio tuner
(SiriusXM)*
1
*
3
To Next Page
