DSX-A50BT
12

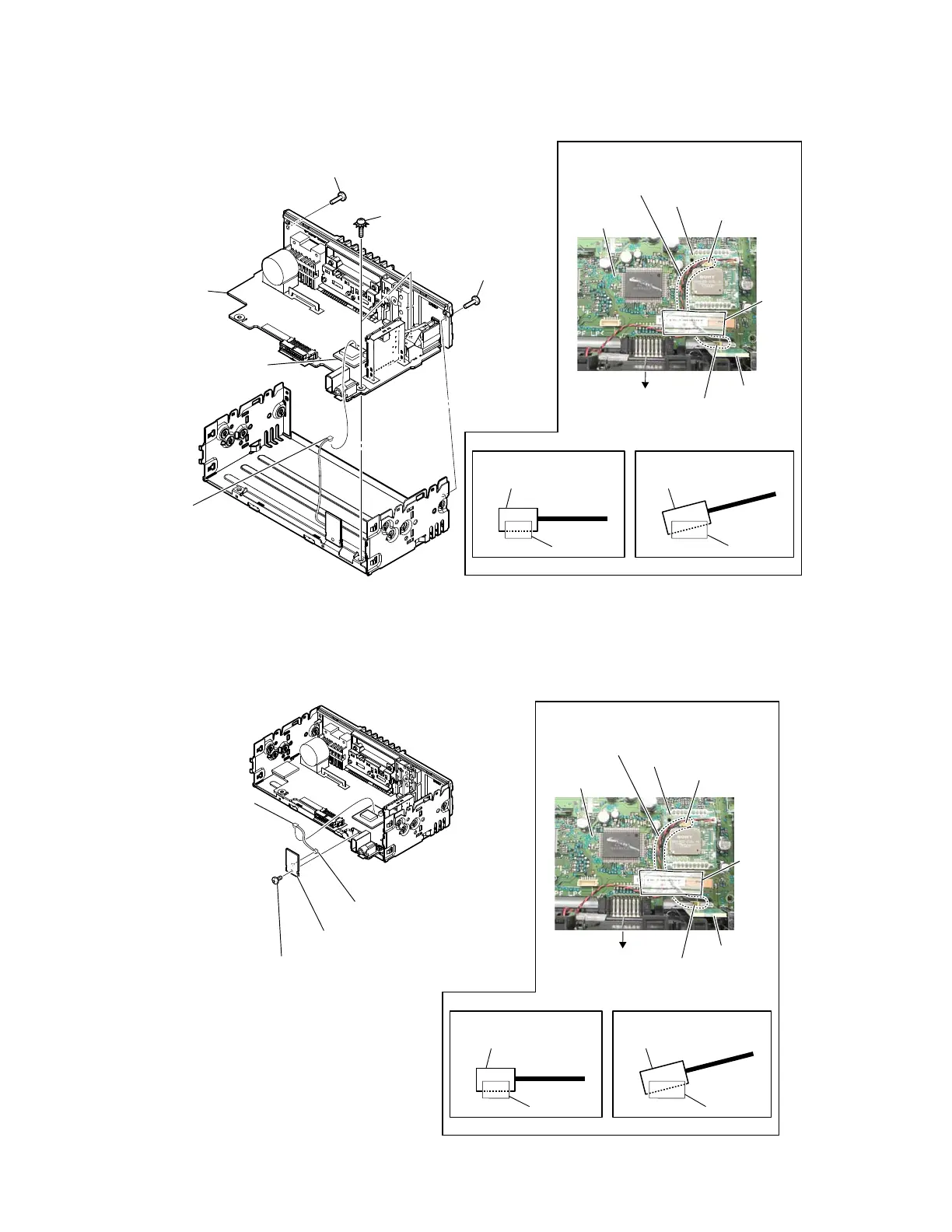

3-4. MAIN BOARD (WITH BT BOARD)
2 screw
(PTT2.6 u 8)
2 screw
(PTT2.6 u 8)
3 two ground point screws
(PTT2.6 u 6)
4 MAIN board
(with BT board)
BT board
1 lead wire with connector
(CN1006)
‡:LUHVHWWLQJ
front side
tape
BT board
MAIN board
lead wire with
connector
connector
(CN1006)
connector
(CN001)
ANTENNA
board
OK
NG
connector
connector
lead wire with connector
lead wire with connector
3-5. ANTENNA BOARD
3 lead wire with connector
(CN001)
1 lead wire with connector
(CN1006)
2 screw (T)
4 ANTENNA board
‡:LUHVHWWLQJ
front side
tape
BT board
MAIN board
lead wire with
connector
connector
(CN1006)
connector
(CN001)
ANTENNA
board
OK
NG
connector connector
lead wire with connector
lead wire with connector
